Coxreels PC24-0012-X Power Cord Reel 100 Ft Spring Drive

Product Description

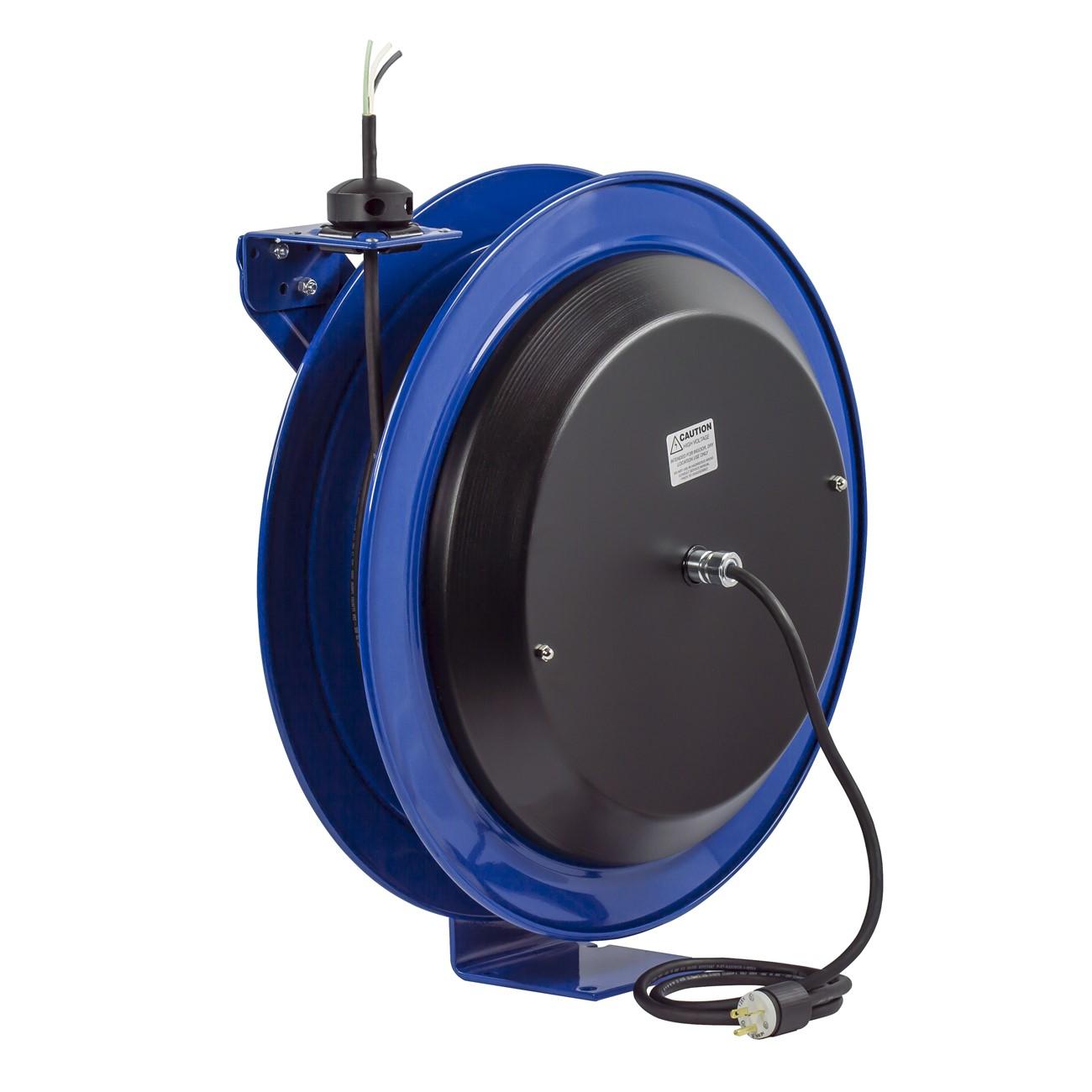

The COXREELS PC24-0012-X is a spring-driven power cord reel built for heavy-duty industrial use. It stores and self-retracts up to 100 feet of power cord, eliminating tangled extension cords on the job site and reducing trip hazards. The unit is constructed from powder-coated steel and features a permanently lubricated cartridge-style motor, CNC robotically spun ribbed discs with rolled edges, and a solid one-piece steel base. It weighs 62 pounds and measures 25 inches long by 13 inches wide by 27 inches tall. Licensed electricians and industrial maintenance technicians are the typical installers for this type of reel.

The PC24-0012-X is suited for industrial facilities, maintenance shops, vehicle service bays, and job sites where a reliable, retractable power source is needed. The multi-position guide arm adjusts to accommodate wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across a range of fixed and mobile installations. It ships as a single unit with a 5-foot lead cable and grounding plug included.

Key Features

• Spring-driven self-retraction keeps 100 ft of cord managed and reduces trip hazards
• External component cover in powder-coated steel allows slip ring maintenance without removing the reel from its mount
• Enclosed, lubricated cartridge-style motor is removable for safe and convenient servicing
• CNC robotically spun and ribbed discs with rolled edges provide strength, durability, and cord protection
• Solid one-piece steel base with single pedestal design and no-weld support post for maximum stability
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting
• Chip-resistant, rust-inhibiting powder coat finish with adjustable solid rubber cord stop and permanently lubricated precision bearings

Compatibility

The PC24-0012-X is part of the COXREELS PC Series, modeled after the P and SH Series platform. It is designed as a direct-use industrial power cord reel for facilities and vehicle-mounted applications requiring a retractable 100-foot cord management solution.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with applicable NEC requirements. Disconnect and lock out all power sources before mounting or servicing the reel. Verify that the mounting surface is rated to support the unit weight of 62 pounds plus cord load. The multi-position guide arm should be secured firmly to the chosen mounting surface before connecting the lead cable to the power source.

Technical Specifications

• Cord Capacity: 100 ft
• Drive Type: Spring Drive
• Material: Steel
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 62 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC24-0012-X
