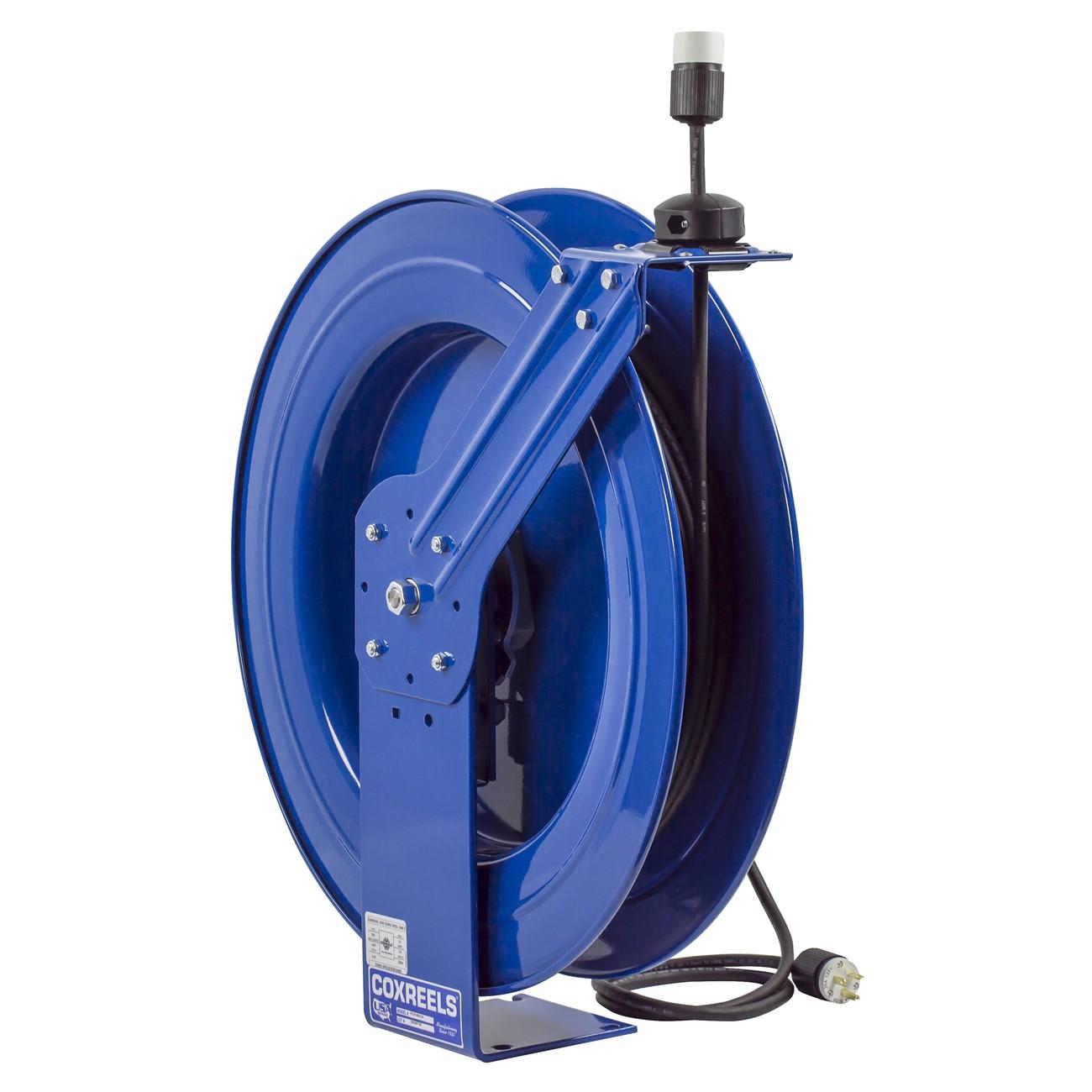

Coxreels PC24-0012-A Power Cord Reel 100 Ft Spring Drive

Product Description

The COXREELS PC24-0012-A is a spring-driven power cord reel built for industrial and heavy-duty trade applications. Part of the PC Series, it stores and retracts up to 100 feet of power cord automatically, eliminating tangled extension cords on the job. The reel is constructed from steel and features a powder-coated finish for corrosion and chip resistance. A cartridge-style motor drives retraction and is enclosed and lubricated for long service life. The unit ships as a single assembly and weighs 81 pounds. HVAC technicians, electricians, and industrial maintenance crews are the primary installers and users of this reel.

The PC24-0012-A is suited for permanent or semi-permanent mounting in shops, service bays, warehouses, and on service vehicles. The multi-position guide arm allows installation on walls, floors, ceilings, or vehicle mounts, making it adaptable to a wide range of work environments. The reel includes a 5-foot lead cable with a grounding plug and a single industrial receptacle, providing a ready-to-use power source once installed. It is appropriate for any application where repeated cord deployment and retraction is required and where cord management safety is a priority.

Key Features

• Spring-driven auto-retract stores up to 100 feet of power cord and eliminates tangled extension cords
• Enclosed, lubricated cartridge-style motor is removable without full disassembly for fast maintenance
• External component cover is powder-coated heavy-gauge steel and accessible without removing the reel from its mount
• CNC robotically spun and ribbed steel discs with rolled edges provide strength, cord protection, and operator safety
• Solid one-piece steel base and support post with no-weld construction for stability without excess weight
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations
• Includes 5-foot lead cable, grounding plug, adjustable rubber cord stop, and single industrial receptacle

Compatibility

Designed as an OEM-style industrial power cord reel replacement or new installation unit for shop, facility, and service vehicle applications requiring spring-driven cord retraction.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. Disconnect and lock out all power at the source before mounting or servicing the reel. The mounting surface must be capable of supporting the weight of the reel plus the loaded cord. Do not exceed the cord and load ratings specified for this reel series.

Technical Specifications

• Cord Capacity: 100 feet
• Drive Type: Spring drive
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 81 pounds
• Material: Steel
• Finish: Powder coat
• Included: 5-foot lead cable, grounding plug, single industrial receptacle, adjustable rubber cord stop
• UOM: Each
• UPC: 674255922600

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC24-0012-A
