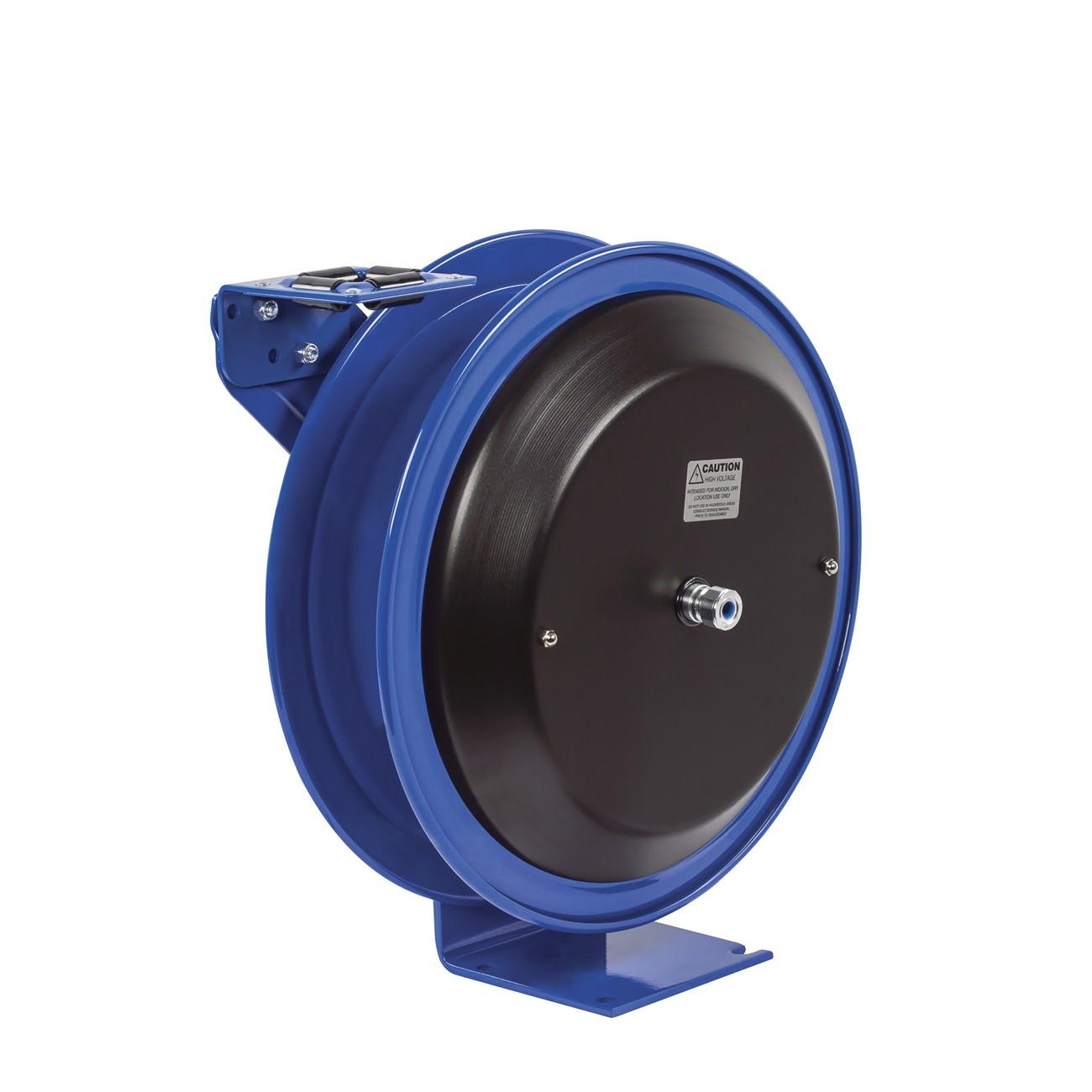

Coxreels PC19L-7516 Power Cord Reel 75 Ft Spring Drive

Product Description

The COXREELS PC19L-7516 is a spring-driven power cord reel built for heavy-duty industrial use. It replaces tangled extension cords by automatically retracting the cord after each use, reducing trip hazards and improving workflow on the job site. The reel is constructed from powder-coated steel and features CNC robotically spun and ribbed discs with rolled edges for durability and operator safety. At 52 pounds, this is a substantial, fixed-mount unit intended for professional installation in demanding service environments. Licensed electricians and industrial maintenance technicians are the primary installers.

The PC19L-7516 is suited for industrial, commercial, and fleet maintenance facilities where a reliable, permanent power cord management solution is needed. The spring-drive retraction mechanism keeps the cord under tension and returns it to the reel without manual winding. The multi-position guide arm allows mounting on walls, floors, ceilings, or vehicles, making it adaptable to a wide range of shop and service bay layouts. It is part of the COXREELS PC Series, which is modeled after the proven P and SH Series platform.

Key Features

• Spring-driven self-retraction eliminates manual cord winding and reduces job-site cord hazards
• External component cover in heavy-gauge powder-coated steel allows slip ring maintenance without removing the reel from its mount
• Enclosed, lubricated cartridge-style motor is removable for safe, convenient service
• CNC robotically spun and ribbed discs with rolled edges provide strength and protect the cord
• Single-pedestal, no-weld steel base with dual axle support for maximum stability
• Multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting
• Chip-resistant, rust-inhibiting powder coat finish with permanently lubricated precision bearings

Compatibility

Designed as an OEM-style heavy-duty power cord reel for industrial and commercial fixed-mount installations requiring a 75 ft spring-driven cord management solution.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). Power down the circuit before making any electrical connections to the reel. Verify that the mounting surface and fasteners are rated for the weight and load of the unit. Do not exceed the reel cord rating or use the unit with conductors or load types not specified by the manufacturer.

Technical Specifications

• Cord Length: 75 ft
• Drive Type: Spring driven
• Frame Material: Steel
• Finish: Powder coat
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 52 pounds
• UPC: 674255922815

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC19L-7516
