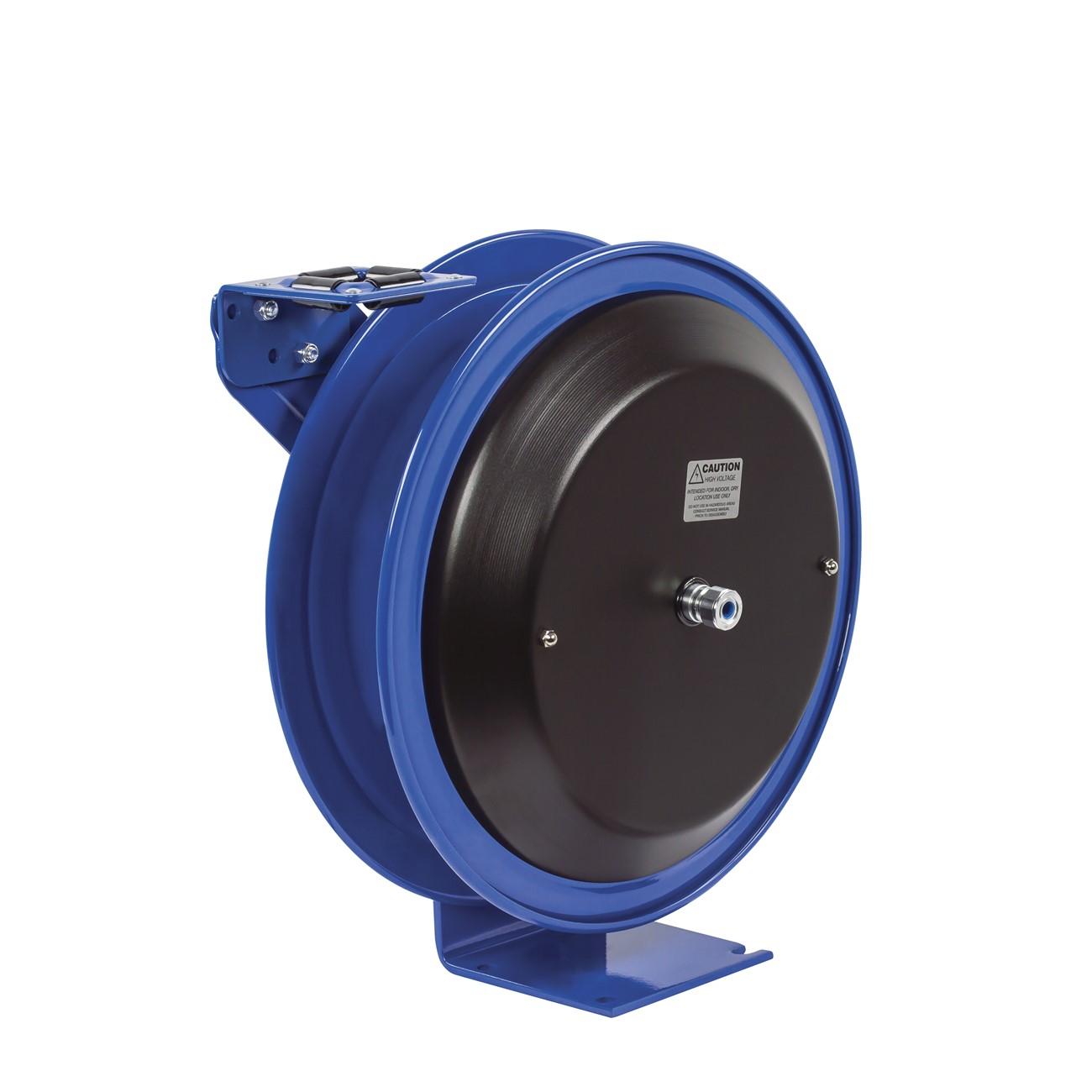

Coxreels PC19L-7512 Power Cord Reel 75 Ft Spring Drive Steel

Product Description

The COXREELS PC19L-7512 is a spring-driven power cord reel built for heavy-duty industrial and commercial use. Designed to replace tangled extension cords, it self-retracts automatically to keep work areas clear and reduce trip hazards. The reel holds 75 feet of power cord and is constructed from powder-coated steel with CNC robotically spun and ribbed discs for durability under demanding conditions. At 53 pounds, the unit is solidly built without excessive bulk. A single-pedestal steel base provides stable mounting without welded joints. This reel is installed by electricians and maintenance professionals in shops, service bays, and industrial facilities.

The PC19L-7512 suits a wide range of industrial and commercial applications where a reliable, retractable power source is needed. Typical installs include automotive service bays, manufacturing floors, warehouses, and fleet maintenance facilities. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations, making it adaptable to fixed and mobile setups alike. The spring-drive mechanism returns the cord automatically after each use, maintaining a clean and organized workspace.

Key Features

• Spring-driven self-retracting mechanism returns cord automatically after use
• CNC robotically spun and ribbed steel discs with rolled edges for strength and operator safety
• External component cover in heavy-gauge powder-coated steel allows slip ring maintenance without removing the reel from its mount
• Enclosed cartridge-style motor is fully lubricated and removable for field maintenance
• Single-pedestal solid steel base with no-weld construction for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• Chip-resistant, rust-inhibiting powder coat finish with permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement and direct-fit industrial cord reel for applications requiring a 75-foot spring-driven retractable power cord solution in the COXREELS PC Series lineup.

Installation Notes

Installation is typically performed by a licensed electrician following applicable NEC requirements. Disconnect and lock out all power sources before servicing the reel, slip ring, or motor cartridge. Ensure the mounting surface and hardware are rated to support the weight and dynamic load of the reel with a fully extended cord. The guide arm should be positioned and secured before energizing the circuit.

Technical Specifications

• Cord Capacity: 75 feet
• Drive Type: Spring Drive
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 53 pounds
• Material: Steel
• Finish: Powder Coat

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC19L-7512
