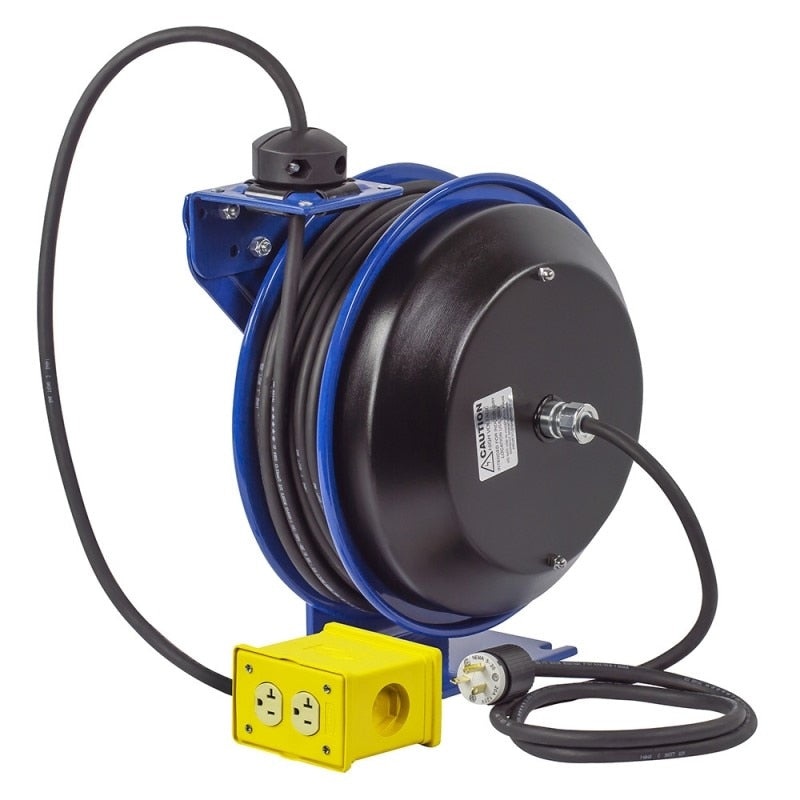

Coxreels PC19-7516-X Power Cord Reel 75 Ft Spring Drive

Product Description

The COXREELS PC19-7516-X is a spring-driven power cord reel built for heavy-duty industrial and commercial applications. Rated for a 75-foot cord capacity, it replaces tangled extension cords with a self-retracting design that improves jobsite safety and workflow efficiency. The reel features heavy-gauge powder-coated steel construction throughout, including CNC robotically spun and ribbed discs with rolled edges for strength and operator safety. Permanently lubricated precision bearings and an enclosed cartridge-style motor support long service intervals with minimal downtime. Electricians, maintenance technicians, and facility crews are the primary installers and users of this reel.

The PC19-7516-X is suited for industrial facilities, commercial buildings, fleet maintenance shops, and vehicle-mounted service operations. Its multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across a wide range of fixed and mobile setups. The unit ships as a single assembly and is part of the COXREELS PC Series, which is modeled after the proven P and SH Series platform. The included 5-foot lead cable and grounding plug allow for direct connection to a standard power source without additional hardware.

Key Features

• Spring-driven self-retraction eliminates cord tangles and reduces trip hazards on the worksite
• External component cover is accessible without removing the reel from its mount, simplifying slip ring maintenance
• Enclosed cartridge-style motor is fully removable for safe and efficient servicing
• CNC robotically spun and ribbed steel discs with rolled edges provide structural durability and cord protection
• Single-pedestal, one-piece steel base with no-weld support post delivers stability without excess weight
• Chip-resistant, rust-inhibiting powder coat finish with adjustable solid rubber cord stop and included 5-foot lead cable with grounding plug

Compatibility

Designed as an OEM-style industrial power cord reel replacement suitable for fixed and vehicle-mounted electrical service applications requiring a spring-driven, self-retracting 75-foot cord management solution.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. Disconnect and lock out all power sources before mounting or servicing the reel. The multi-position guide arm must be secured to a structurally adequate surface rated for the combined weight of the reel and extended cord load. Do not exceed the cord capacity or electrical rating marked on the unit.

Technical Specifications

• Cord Capacity: 75 feet
• Drive Type: Spring driven
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 60 pounds
• Material: Steel
• Finish: Powder coat
• Mounting: Multi-position guide arm (wall, floor, ceiling, vehicle)
• Included Accessories: 5-foot lead cable, grounding plug

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC19-7516-X
