Coxreels PC19-7516-A Power Cord Reel 75 Ft Spring Drive

Product Description

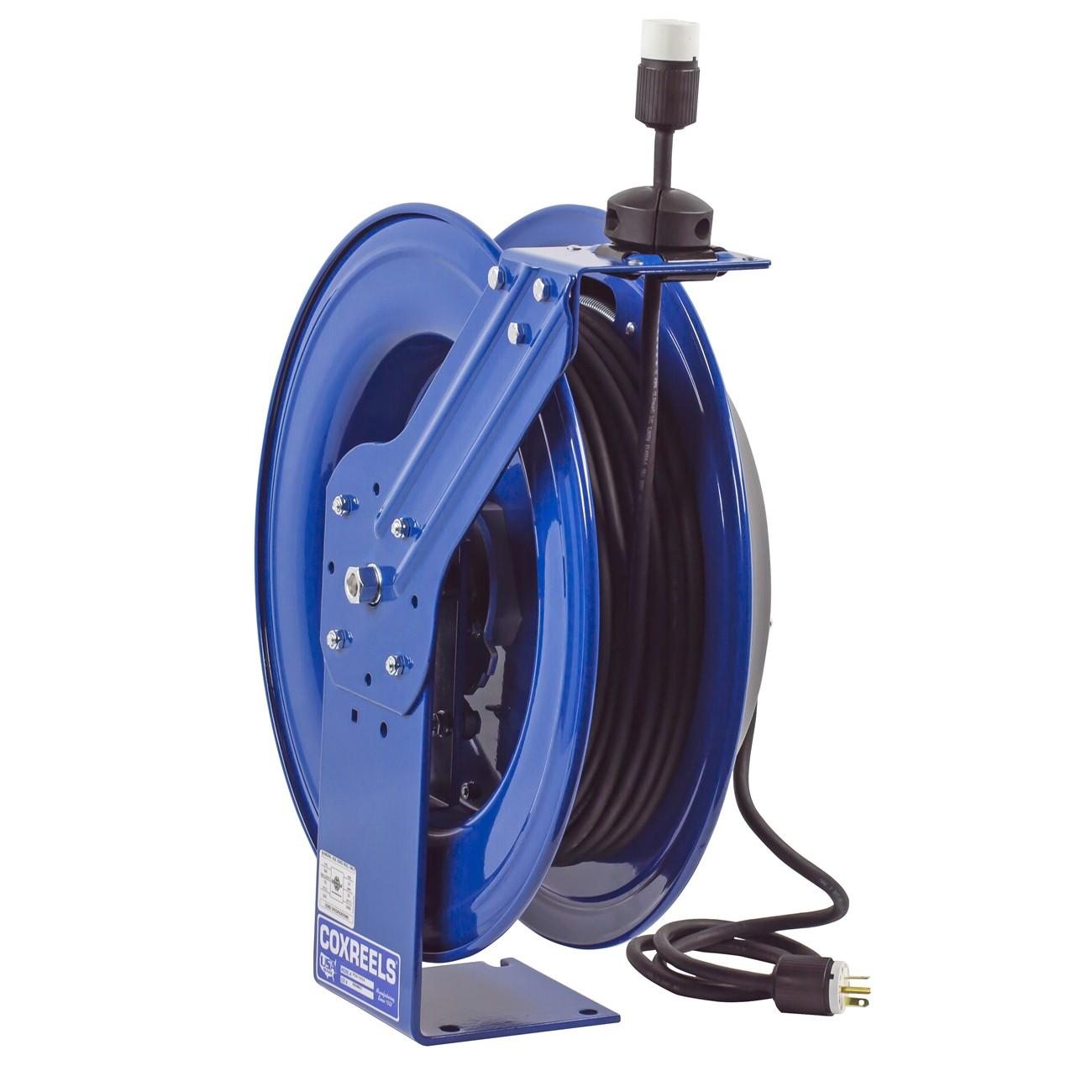

The COXREELS PC19-7516-A is a spring-driven power cord reel built for heavy-duty industrial use. Part of the PC Series, it stores and self-retracts up to 75 feet of power cord, eliminating tangled extension cords on the job site. The reel is constructed with CNC robotically spun and ribbed steel discs with rolled edges for strength and operator safety. Weighing 60 pounds and measuring 22.25 inches long by 12.75 inches wide by 23.75 inches tall, it is sized for permanent mounting in demanding work environments. Licensed electricians and industrial maintenance technicians are the primary installers.

The PC19-7516-A is suited for industrial facilities, service shops, vehicle bays, and commercial job sites where a reliable, retractable power source is needed at a fixed station. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it adaptable to a wide range of installation configurations. The included 5-foot lead cable and grounding plug allow direct connection to a facility power source. A single industrial receptacle is provided at the end of the cord for tool or equipment hookup.

Key Features

• Spring-driven self-retraction keeps 75 feet of power cord organized and tangle-free
• External component cover in heavy-gauge powder-coated steel allows slip ring maintenance without removing the reel from its mount
• Enclosed, lubricated cartridge-style motor is fully removable for safe and convenient servicing
• CNC robotically spun and ribbed discs with rolled edges provide strength, durability, and cord protection
• Solid one-piece steel base and support post with no welds for maximum stability
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting orientations
• Chip-resistant, rust-inhibiting powder coat finish with adjustable solid rubber cord stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style industrial power cord reel for fixed-mount applications in facilities, service vehicles, and commercial shops requiring a retractable 75-foot cord management solution.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with applicable NEC requirements. Power down and lock out the circuit before making any wiring connections to the lead cable. Ensure the mounting surface and fasteners are rated to support the reel weight of 60 pounds plus cord load. Verify the mounting position using the adjustable guide arm before final fastening to confirm proper cord pay-out direction.

Technical Specifications

• Cord Capacity: 75 feet
• Drive Type: Spring drive
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 60 pounds
• Material: Steel
• Finish: Powder coat
• UPC: 674255922372

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC19-7516-A
