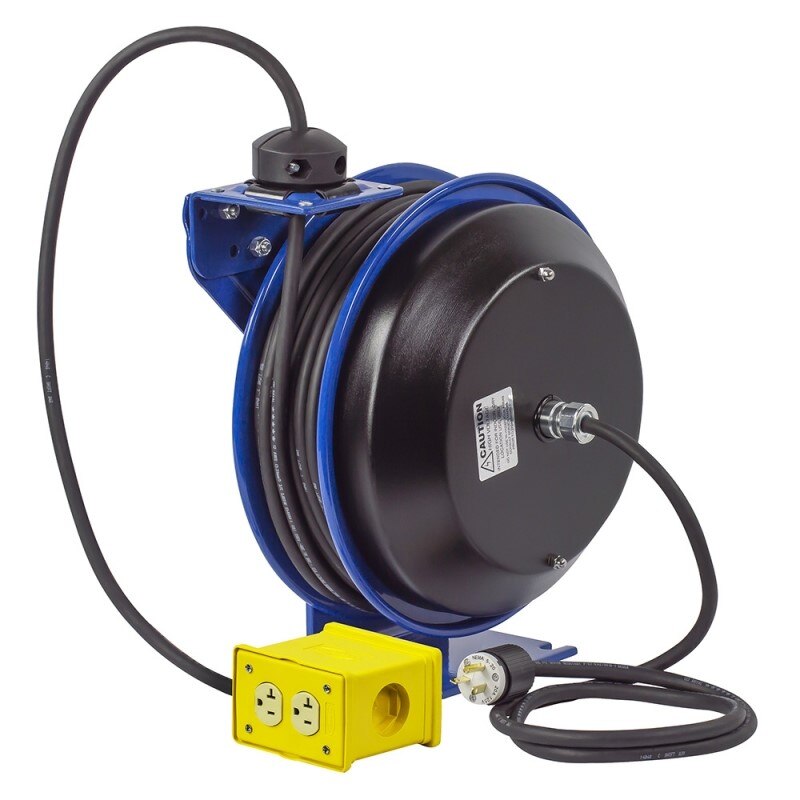

Coxreels PC19-7512-X Power Cord Reel 75 Ft Spring Drive

Product Description

The COXREELS PC19-7512-X is a heavy-duty, spring-driven power cord reel built for industrial and commercial environments. Carrying 75 feet of cord capacity, it eliminates tangled extension cords and self-retracts to improve jobsite safety and workflow efficiency. The PC Series reel is constructed from CNC robotically spun and ribbed steel discs with rolled edges, providing lasting structural integrity under demanding daily use. A powder-coated steel component cover protects internal parts while remaining externally accessible for routine slip ring maintenance without removing the reel from its mount. Licensed electricians and industrial maintenance technicians are the typical installers for this unit.

The PC19-7512-X is suited for industrial facilities, maintenance shops, vehicle bays, and commercial work environments where a reliable, retractable power source is needed overhead or at a fixed station. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across a wide range of installation scenarios. The included 5-foot lead cable and grounding plug allow direct connection to a facility power supply without additional adapters in most standard setups.

Key Features

• Spring-driven self-retraction eliminates cord tangles and reduces trip hazards on the jobsite
• External component cover allows slip ring maintenance without dismounting the reel
• Enclosed, lubricated cartridge-style motor is removable for safe and convenient servicing
• CNC robotically spun and ribbed steel discs with rolled edges for strength and cord protection
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting orientations
• Chip-resistant, rust-inhibiting powder coat finish with permanently lubricated precision bearings

Compatibility

Designed as an OEM-style heavy-duty spring-driven power cord reel for industrial and commercial fixed or vehicle-mounted power cord management applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. Disconnect and lock out all power to the circuit before making any electrical connections to the reel. Verify that the mounting surface and hardware are rated to support the reel weight of 66 pounds plus cord load. The multi-position guide arm should be secured in the desired orientation before final mounting to ensure proper cord feed alignment.

Technical Specifications

• Cord Capacity: 75 feet
• Drive Type: Spring drive
• Material: Steel
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 66 pounds
• Lead Cable: 5 feet
• UPC: 674255922532

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC19-7512-X
