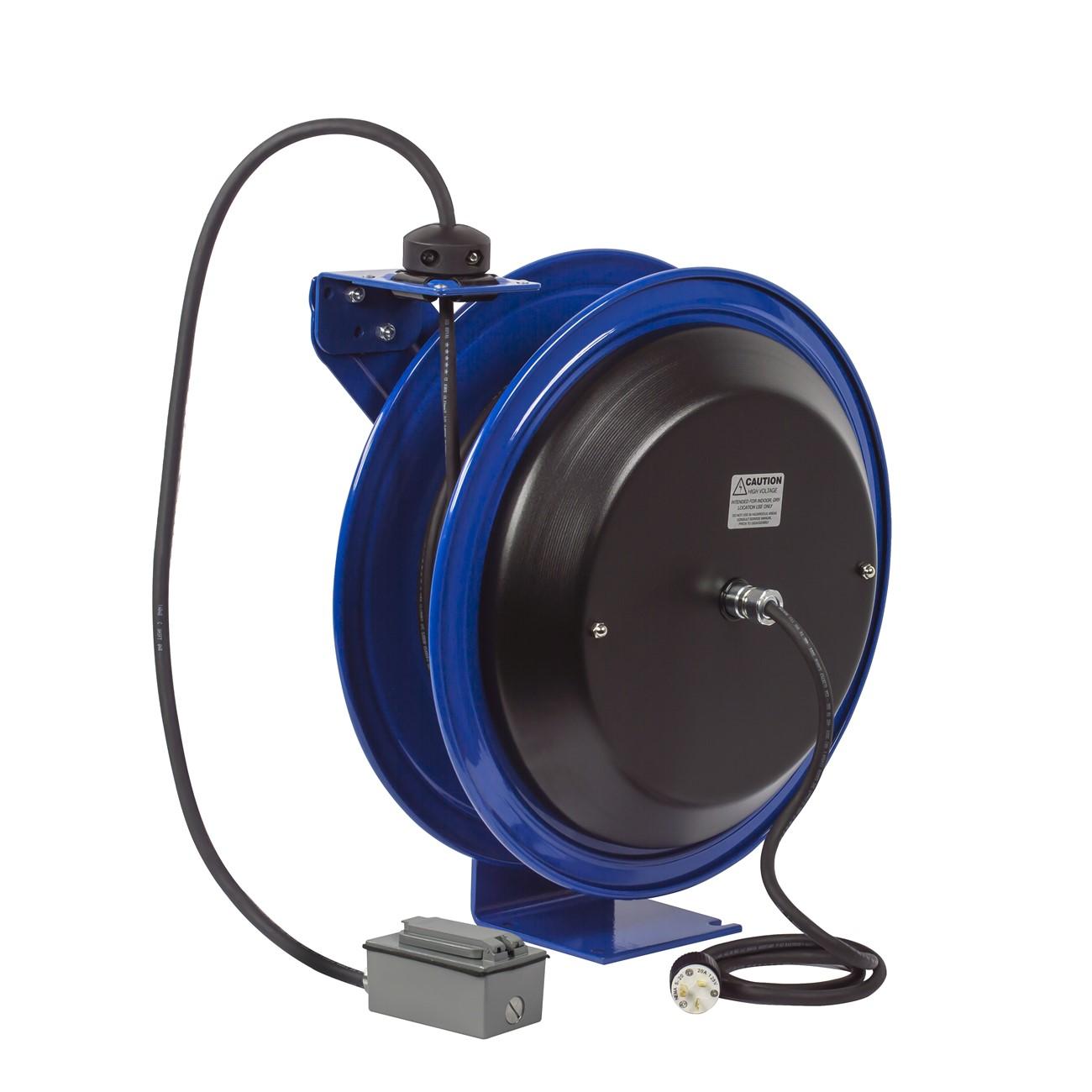

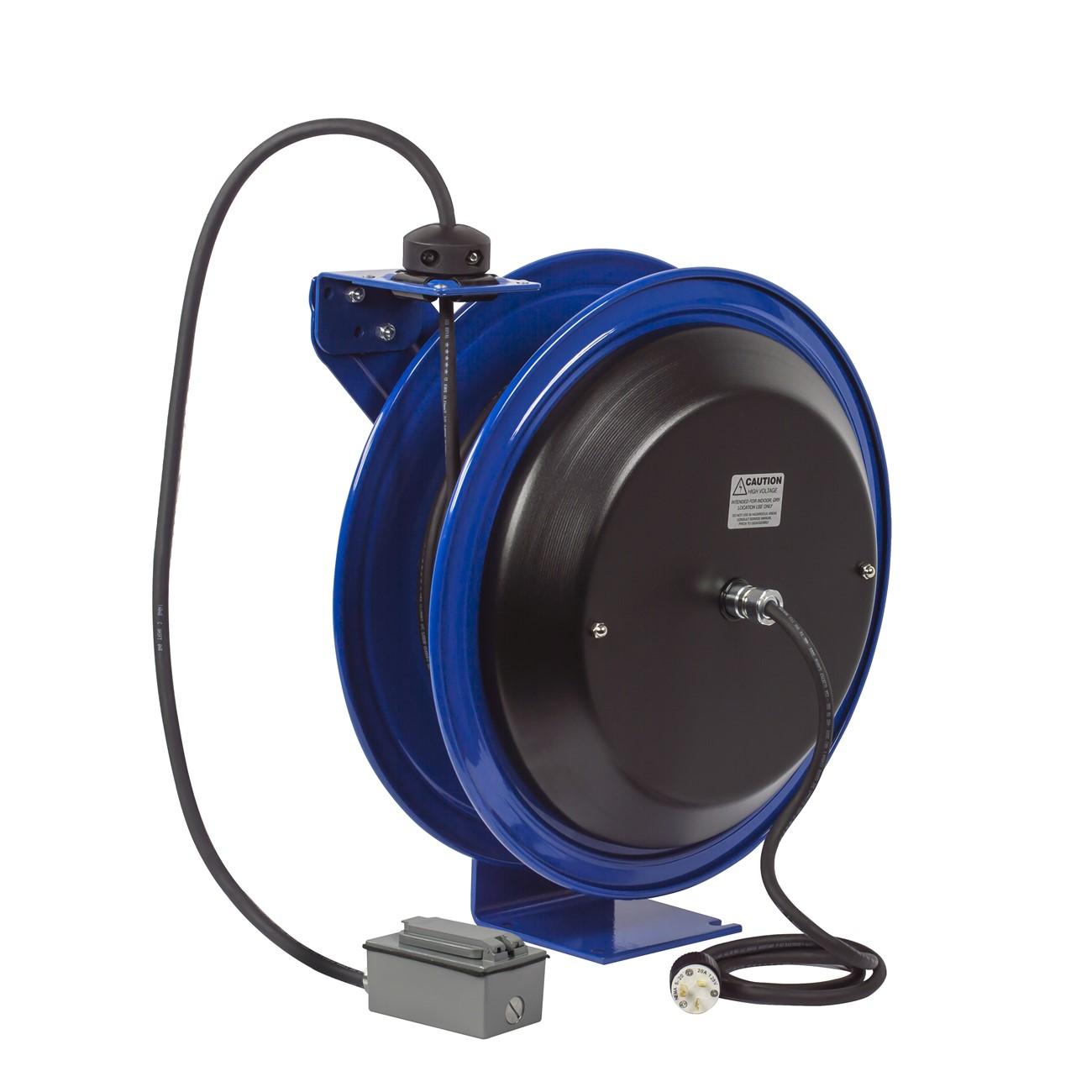

Coxreels PC19-7512-F Power Cord Reel 75 Ft Spring Drive

Product Description

The COXREELS PC19-7512-F is a heavy-duty, spring-driven power cord reel built for industrial and commercial worksites where reliable, retractable power access is essential. Part of the PC Series, this unit holds 75 feet of cord and self-retracts to keep work areas clear and reduce trip hazards. The reel is constructed from powder-coated steel and features CNC robotically spun and ribbed discs with rolled edges for added strength and operator safety. A duplex GFCI metal industrial receptacle is included. Electricians, maintenance technicians, and industrial service professionals are the primary installers and users of this reel.

The PC19-7512-F is suited for permanent or semi-permanent mounting in industrial facilities, service garages, manufacturing floors, and fleet maintenance bays. It is designed to replace tangled extension cord setups with a self-retracting, spring-driven system. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across a wide range of install environments. The 5-foot lead cable and grounding plug are included, allowing direct connection to a fixed power source after mounting.

Key Features

• Spring-driven self-retraction keeps 75 feet of cord organized and reduces trip hazards on the worksite
• External component cover in powder-coated steel allows slip ring maintenance without removing the reel from its mount
• Enclosed, lubricated cartridge-style motor is removable for safe and convenient servicing
• CNC robotically spun and ribbed steel discs with rolled edges provide strength, cord protection, and operator safety
• Single-pedestal, one-piece steel base with support post requires no welding and provides stable, professional-grade mounting
• Duplex GFCI metal industrial receptacle and adjustable solid rubber cord stop included; chip-resistant, rust-inhibiting powder coat finish

Compatibility

Designed as an OEM-style industrial power cord reel for permanent or semi-permanent mounting applications requiring a 75-foot spring-driven retractable cord management solution.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with applicable NEC requirements. Power down and lock out the circuit before making any wiring connections at the lead cable or receptacle. Verify the mounting surface can support the unit weight of 67 pounds plus cord load before securing the base. Do not exceed the cord reel rated capacity or use the unit as a substitute for fixed branch-circuit wiring.

Technical Specifications

• Cord Capacity: 75 ft
• Drive Type: Spring drive
• Body Material: Steel
• Finish: Powder coat
• Receptacle Type: Duplex GFCI metal industrial
• Lead Cable: 5 ft with grounding plug
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 67 pounds
• UPC: 674255922525

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC19-7512-F
