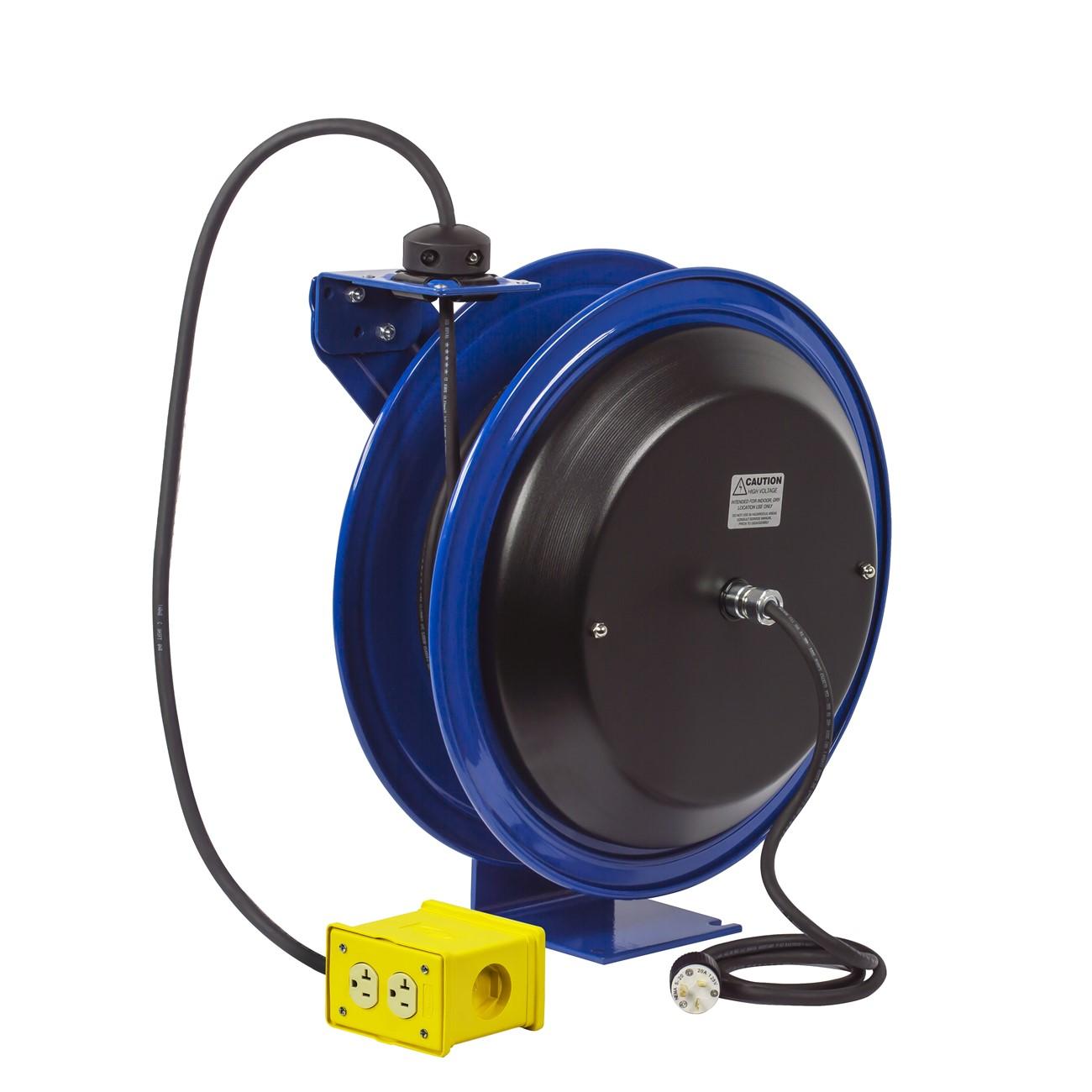

Coxreels PC19-7512-B Power Cord Reel 75 Ft Spring Drive

Product Description

The COXREELS PC19-7512-B is a spring-driven power cord reel built for heavy-duty industrial and commercial applications. It holds 75 feet of cord and self-retracts automatically, eliminating tangled extension cords on the job site. The reel is constructed with CNC robotically spun steel discs and a solid one-piece steel base with a single-pedestal design. A powder-coat finish resists chipping and rust for long service life in demanding environments. Licensed electricians and facility maintenance technicians are the primary installers of this type of reel.

The PC19-7512-B is suited for industrial facilities, workshops, service bays, and fleet maintenance operations where a reliable, retractable power source is needed at a fixed station or vehicle mount. The PC Series is modeled after the COXREELS P and SH Series and is engineered for continuous-duty use where cord management, operator safety, and uptime are priorities. The multi-position guide arm allows installation on walls, floors, ceilings, and vehicles, making it adaptable across a range of fixed and mobile service environments.

Key Features

• Spring-driven self-retraction eliminates manual cord coiling and reduces trip hazards
• CNC robotically spun and ribbed steel discs with rolled edges for strength and cord protection
• External component cover in powder-coated steel allows slip ring maintenance without removing the reel from its mount
• Enclosed, lubricated cartridge-style motor is removable for safe and convenient servicing
• Solid one-piece steel base and support post with no-weld construction for stability without excess weight
• Includes 5-foot lead cable with grounding plug and quad industrial receptacle outlet
• Adjustable solid rubber cord stop and multi-position guide arm for wall, floor, ceiling, or vehicle mounting

Compatibility

Designed as an OEM-style replacement and direct-fit unit within the COXREELS PC Series, suitable for industrial and commercial cord reel applications requiring a 75-foot spring-retractable power cord reel.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with applicable NEC requirements. Disconnect and lock out all power sources before mounting or servicing the reel. Verify that the mounting surface and fastener hardware are rated for the reel weight of 68 pounds before securing. Do not exceed the cord capacity or amperage rating of the installed cord and receptacle assembly.

Technical Specifications

• Cord Capacity: 75 feet
• Drive Type: Spring
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 68 pounds
• Material: Steel
• Finish: Powder coat, chip-resistant and rust-inhibiting
• Included Accessories: 5-foot lead cable, grounding plug, quad industrial receptacle
• UPC: 674255922518

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC19-7512-B
