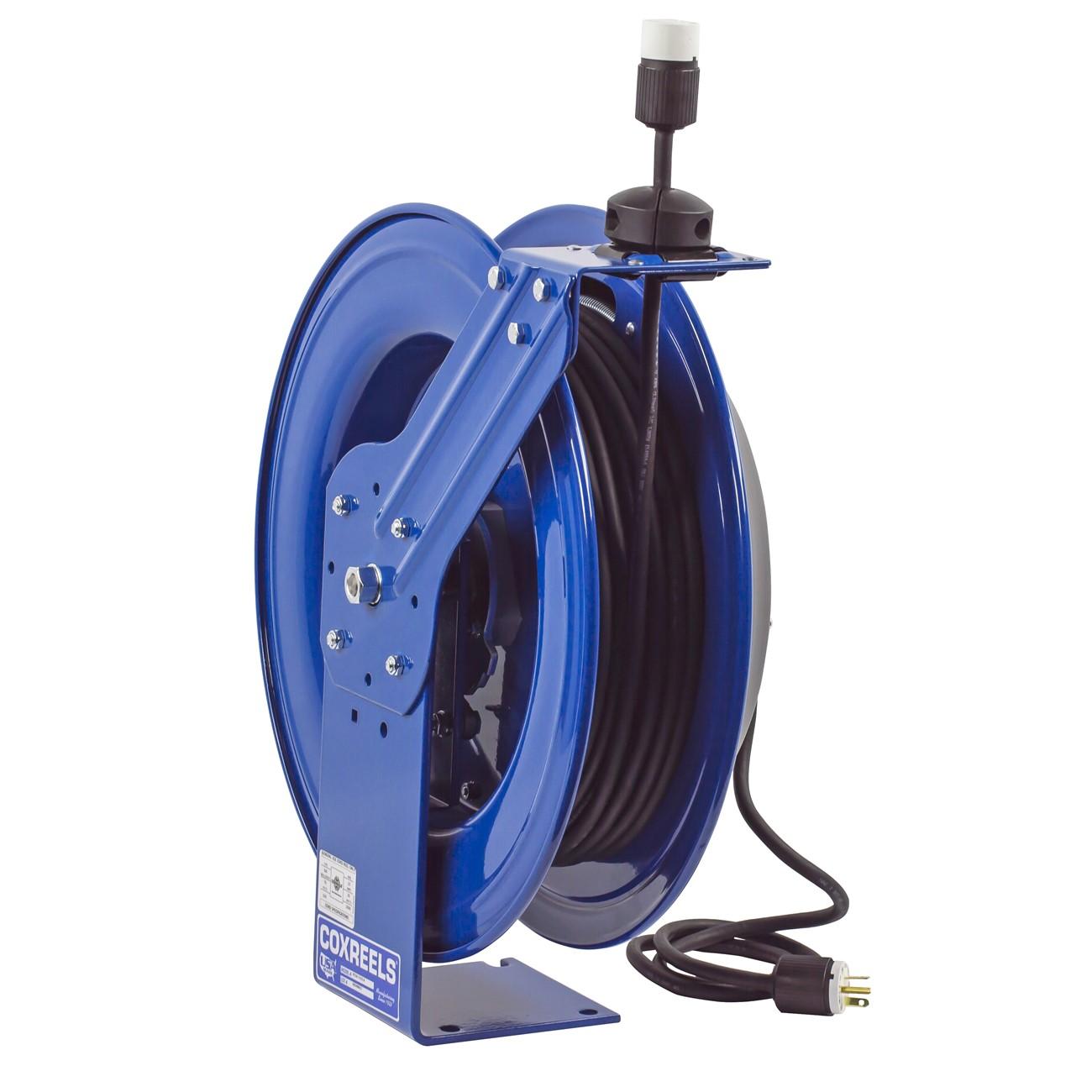

Coxreels PC19-7512-A Power Cord Reel 75 Ft Spring Drive

Product Description

The COXREELS PC19-7512-A is a spring-driven industrial power cord reel built for heavy-duty trade and shop environments. Part of the COXREELS PC Series, it accommodates 75 feet of cord and self-retracts automatically to eliminate tangled extension cords on the job. The steel construction is powder coated for chip and rust resistance, and the single-pedestal base provides a stable, weld-free mount. A cartridge-style spring motor is fully enclosed and lubricated for long service life. Licensed electricians and industrial maintenance technicians are the primary installers. The reel ships at 67 pounds and measures 22.25 inches long by 12.75 inches wide by 23.75 inches tall.

The PC19-7512-A is suited for commercial and industrial applications where a permanent or semi-permanent power cord management solution is required. Typical installations include workshop bays, service garages, manufacturing floors, and fleet maintenance facilities. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across a wide range of fixed and mobile service setups. A 5-foot lead cable and grounding plug are included for direct connection to a power source at the mount point.

Key Features

• Spring-driven self-retraction eliminates tangled cords and reduces trip hazards
• External component cover allows slip ring maintenance without removing the reel from its mount
• Enclosed, lubricated cartridge motor is removable for routine service
• CNC robotically spun and ribbed steel discs with rolled edges for strength and cord protection
• Multi-position guide arm adjusts for wall, floor, ceiling, or vehicle mounting
• Powder coat finish resists chips and rust; includes adjustable rubber cord stop and single industrial receptacle

Compatibility

Designed as an OEM-style replacement or direct-fit unit for industrial and commercial power cord reel applications. Modeled after the COXREELS P and SH Series mounting footprint for comparable installation scenarios.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize the circuit and verify zero voltage at the connection point before making any wiring connections to the lead cable. Ensure the mounting surface is rated to support the reel weight of 67 pounds plus cord load. The multi-position guide arm must be secured to the correct orientation for the intended mounting position before final fastening.

Technical Specifications

• Cord Capacity: 75 ft
• Drive Type: Spring Drive
• Construction Material: Steel
• Finish: Powder Coat
• Length: 22.25 inches
• Width: 12.75 inches
• Height: 23.75 inches
• Weight: 67 pounds
• Lead Cable: 5 ft included
• UPC: 674255922501

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC19-7512-A
