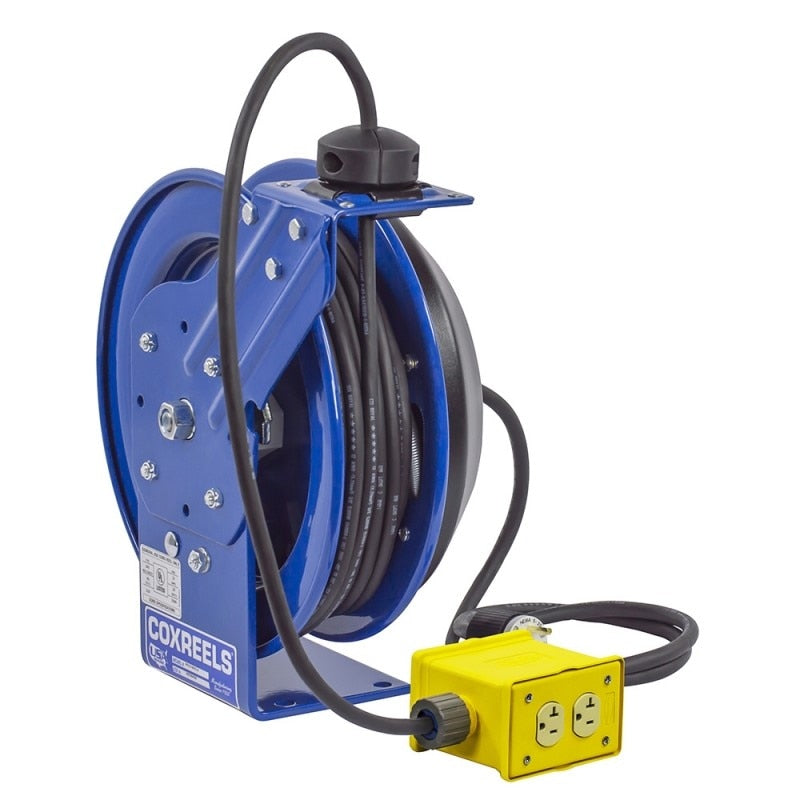

Coxreels PC17L-5010 Power Cord Reel 50 Ft Spring Drive

Product Description

The COXREELS PC17L-5010 is a spring-driven power cord reel built for heavy-duty industrial and commercial applications. Part of the PC Series, it replaces tangled extension cords with a self-retracting design that improves jobsite safety and workflow efficiency. The reel houses 50 feet of cord capacity and is constructed with CNC robotically spun and ribbed steel discs featuring rolled edges for strength and operator safety. A chip-resistant, rust-inhibiting powder coat finish and permanently lubricated precision bearings support long service life under demanding conditions. Licensed electricians and industrial maintenance technicians are the primary installers of this reel type.

The PC17L-5010 is suited for industrial facilities, garages, service bays, warehouses, and fleet maintenance environments where a reliable, retractable power source is needed at a fixed or vehicle-mounted location. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, making the reel adaptable to varied install locations. The single pedestal base design provides a stable, no-weld footprint that anchors securely to a mounting surface without requiring a wide base frame.

Key Features

• Spring-driven self-retraction eliminates tangled cords and reduces trip hazards
• CNC robotically spun and ribbed steel discs with rolled edges for durability and cord protection
• External component cover allows slip ring maintenance without removing the reel from its mount
• Enclosed, lubricated cartridge-style motor is independently removable for servicing
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting
• Solid one-piece steel base and support post with no-weld construction for maximum stability

Compatibility

Designed as an OEM-style heavy-duty power cord reel for industrial and commercial fixed or vehicle-mount installations requiring a spring-driven retractable cord management solution.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with applicable NEC requirements for cord reel and fixed wiring applications. Disconnect and lock out all power at the source before beginning any wiring connections to the reel. Verify the mounting surface can support the reel weight of 49 pounds plus the load of the connected cord and equipment. The guide arm should be positioned and secured before the reel is energized.

Technical Specifications

• Cord Capacity: 50 feet
• Drive Type: Spring driven
• Construction: Steel
• Finish: Powder coat, chip-resistant and rust-inhibiting
• Mounting: Single pedestal, multi-position guide arm (wall, floor, ceiling, vehicle)
• Length: 18 inches
• Width: 13 inches
• Height: 19.5 inches
• Weight: 49 pounds
• UPC: 674255921160

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC17L-5010
