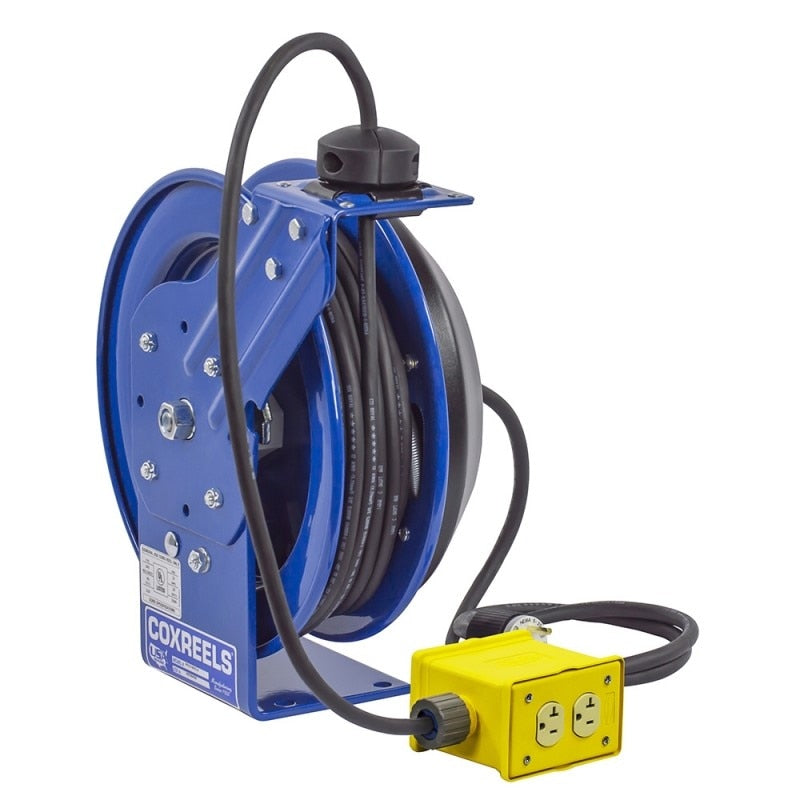

Coxreels PC17-5010-X Power Cord Reel 50 Ft Spring Drive

Product Description

The COXREELS PC17-5010-X is a heavy-duty, spring-driven power cord reel built for industrial and commercial environments. It stores and retrieves up to 50 feet of power cord automatically, eliminating tangled extension cords on the job site. The reel is constructed from steel with a powder coat finish that resists chips and rust. It weighs 56 pounds and measures 18 inches long by 13 inches wide by 19.5 inches tall. A 5-foot lead cable and grounding plug are included. Licensed electricians and industrial maintenance technicians are the primary installers of this unit.

The PC17-5010-X suits demanding industrial applications including manufacturing facilities, service bays, warehouses, and fleet maintenance shops. Its multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it adaptable to a wide range of fixed and mobile installations. The spring-drive retraction mechanism keeps the cord under consistent tension and returns it to the drum without manual winding. This reel is a direct replacement for tangled or unmanaged extension cord setups where repeated access to a consistent power source is required.

Key Features

• Spring-driven auto-retract stores up to 50 feet of power cord and eliminates manual winding
• External component cover in heavy-gauge powder-coated steel allows slip ring maintenance without removing the reel from its mount
• Enclosed, lubricated cartridge-style motor is removable for convenient servicing
• CNC robotically spun and ribbed steel discs with rolled edges for added strength and cord protection
• Single-pedestal, one-piece steel base with no-weld support post for maximum stability
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations
• Adjustable solid rubber cord stop and permanently lubricated precision bearings included

Compatibility

Designed as an OEM-style industrial power cord reel replacement suited for fixed and mobile mounting applications requiring a self-retracting spring-driven power source.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. Disconnect and lock out all power sources before mounting or servicing the reel. Verify that the mounting surface and hardware are rated for the weight of the fully loaded reel. Do not exceed the cord or electrical ratings specified on the unit nameplate.

Technical Specifications

• Cord Length: 50 feet
• Drive Type: Spring drive
• Length: 18 inches
• Width: 13 inches
• Height: 19.5 inches
• Weight: 56 pounds
• Material: Steel
• Finish: Powder coat, chip-resistant and rust-inhibiting
• Lead Cable: 5 feet included with grounding plug

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC17-5010-X
