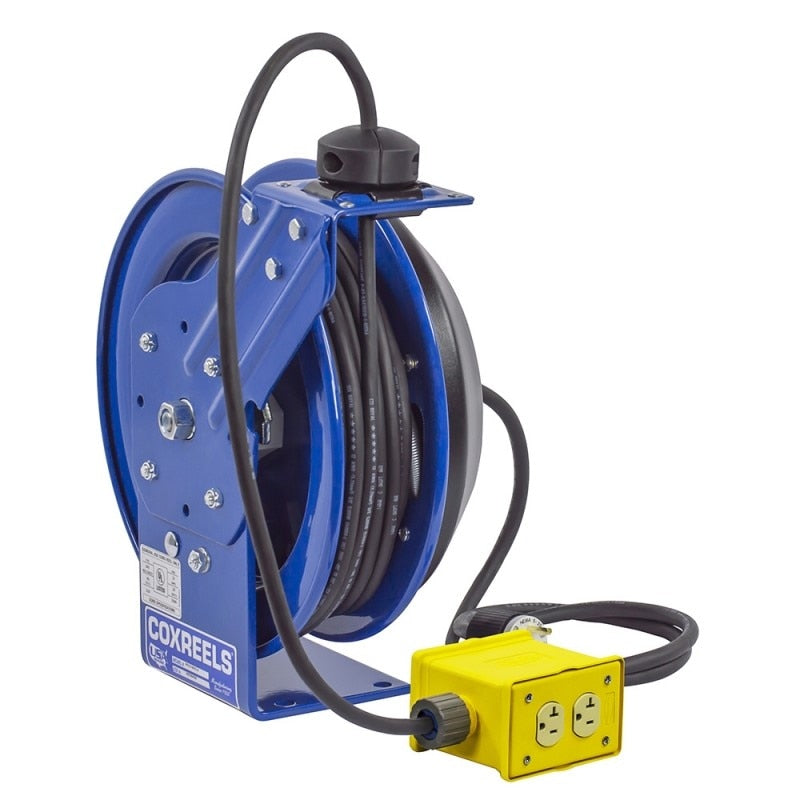

Coxreels PC17-3510-X Power Cord Reel 50 Ft Spring Drive

Product Description

The COXREELS PC17-3510-X is a spring-driven power cord reel built for heavy-duty industrial and commercial applications. Part of the COXREELS PC Series, it replaces tangled extension cords with a self-retracting design that improves jobsite safety and workflow efficiency. The reel stores 50 feet of cord and retracts automatically via a cartridge-style spring motor. Construction centers on CNC robotically spun and ribbed steel discs with rolled edges, a solid one-piece steel base with single pedestal support, and a powder coat finish that resists chips and rust. A licensed electrician or qualified industrial maintenance technician is the typical installer.

The PC17-3510-X is suited for manufacturing facilities, maintenance shops, fleet service bays, and other environments where a reliable, retractable power source is needed at a fixed or vehicle-mounted station. The multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across a wide range of installation scenarios. The 5-foot lead cable and grounding plug are included, allowing direct connection to a power source without additional cord management hardware.

Key Features

• Self-retracting spring drive eliminates tangled extension cords and reduces trip hazards
• Cartridge-style motor is lubricated, enclosed, and removable for routine maintenance without special tools
• External component cover in heavy-gauge powder coated steel allows slip ring access without dismounting the reel
• CNC spun and ribbed discs with rolled edges provide structural strength and protect cord integrity
• Solid one-piece steel base and support post with no-weld construction for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• Includes 5-foot lead cable, grounding plug, and adjustable solid rubber cord stop

Compatibility

Designed as an OEM-style replacement or direct-fit power cord reel consistent with the COXREELS PC Series platform, modeled after the P and SH Series form factor for long-lasting industrial service.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. Disconnect and lock out all power to the circuit before mounting or servicing the reel. Verify that the mounting surface and hardware are rated for the combined weight of the reel and cord load. Do not exceed the cord or amperage rating specified for the reel assembly.

Technical Specifications

• Cord Length: 50 feet
• Drive Type: Spring driven
• Length: 18 inches
• Width: 13 inches
• Height: 19.5 inches
• Weight: 48 pounds
• Material: Steel
• Finish: Powder coat, chip resistant and rust inhibiting
• Included Accessories: 5-foot lead cable, grounding plug, adjustable rubber cord stop
• UOM: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC17-3510-X
