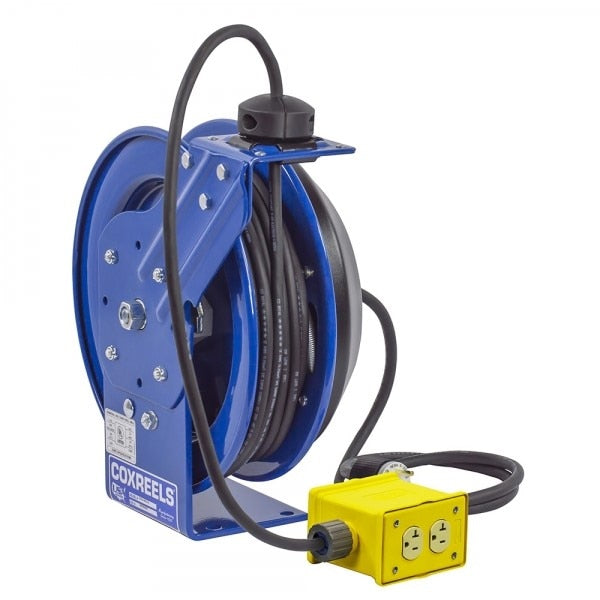

Coxreels PC13-5016-M Power Cord Reel 50 Ft Spring Drive

Product Description

The COXREELS PC13-5016-M is a spring-driven power cord reel built for heavy-duty industrial use. Part of the PC Series, it self-retracts to eliminate tangled extension cords on the job site, improving safety and workflow efficiency. The reel houses a lubricated, enclosed cartridge-style motor and features CNC robotically spun and ribbed steel discs with rolled edges for long-term durability. At 37 pounds, it is a substantial unit built for demanding environments. A 5-foot lead cable and grounding plug are included, and a compact super-bright LED light is integrated into the unit. Licensed electricians and industrial maintenance technicians are the primary installers.

The PC13-5016-M is suited for industrial facilities, commercial workshops, vehicle bays, and maintenance operations where a reliable, retractable 50-foot power cord is required. Its multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it adaptable to a wide range of installation layouts. The external component cover allows slip ring maintenance without removing the reel from its mount, which reduces downtime in production or service environments.

Key Features

• Spring-driven self-retraction eliminates cord tangling and keeps work areas clear
• Cartridge-style motor is lubricated, enclosed, and removable for convenient maintenance
• CNC robotically spun and ribbed discs with rolled edges for strength and cord protection
• External component cover allows slip ring access without dismounting the reel
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting
• Solid one-piece steel base with single pedestal design and no-weld construction for stability
• Powder coat finish is chip-resistant and rust-inhibiting; adjustable solid rubber cord stop included

Compatibility

Designed as an OEM-style replacement or direct-install spring-driven power cord reel for industrial and commercial applications requiring a 50-foot retractable cord solution. Modeled after the COXREELS P and SH Series platform.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. Power down the circuit before making any electrical connections to the reel. Ensure the mounting surface is rated to support the reel weight and any dynamic cord load. Verify grounding continuity through the grounding plug before energizing the circuit.

Technical Specifications

• Cord Length: 50 feet
• Drive Type: Spring driven
• Frame Material: Steel
• Length: 13 inches
• Width: 17 inches
• Height: 15.25 inches
• Weight: 37 pounds
• Lead Cable: 5 feet included with grounding plug
• UOM: Each
• UPC: 674255926097

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC13-5016-M
