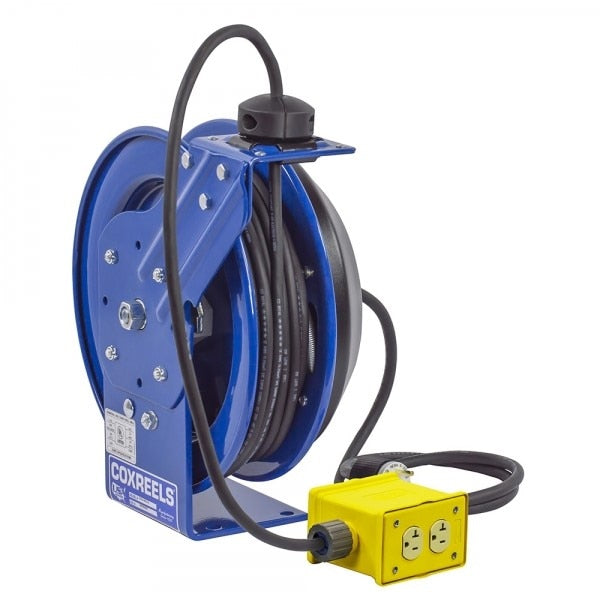

Coxreels PC13-5016-K Power Cord Reel 50 Ft Spring Drive

Product Description

The COXREELS PC13-5016-K is a spring-driven power cord reel built for heavy-duty industrial and commercial use. Part of the COXREELS PC Series, this unit replaces tangled extension cords with a self-retracting design that improves jobsite safety and workflow efficiency. The reel houses a lubricated, enclosed cartridge-style motor and features heavy-gauge CNC robotically spun and ribbed steel discs with rolled edges for strength and operator safety. It accommodates 50 feet of cord and is designed for long-lasting, trouble-free performance under demanding conditions. Licensed electricians and industrial maintenance technicians are the primary installers.

The PC13-5016-K is suited for industrial facilities, commercial service bays, maintenance shops, and fleet vehicle installations where a reliable, retractable power source is needed at a fixed station. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making this reel adaptable across a wide range of fixed and mobile service environments. The unit ships as a single piece on a solid one-piece steel base with a support post and no-weld construction for maximum stability.

Key Features

• Spring-driven self-retracting mechanism eliminates cord management hazards on the floor
• CNC robotically spun and ribbed steel discs with rolled edges for durability and cord protection
• Enclosed cartridge-style motor is fully removable for routine maintenance without special tooling
• External component cover allows slip ring maintenance without removing the reel from its mount
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations
• Includes 5-foot lead cable, grounding plug, adjustable solid rubber cord stop, and Super-Bright LED light with tool tap on handle
• Powder coat finish is chip-resistant and rust-inhibiting for extended service life

Compatibility

Designed as an OEM-style replacement or direct-fit unit in the COXREELS PC Series, modeled after the P and SH Series reel platforms for industrial and commercial power cord management applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. Disconnect all power at the circuit breaker before mounting or wiring the reel. Confirm the mounting surface and hardware are rated for the combined weight of the reel and cord load. The multi-position guide arm must be secured in the correct orientation before energizing the circuit.

Technical Specifications

• Cord Length: 50 feet
• Drive Type: Spring drive
• Length: 13 inches
• Width: 17 inches
• Height: 15.25 inches
• Weight: 37 pounds
• Material: Steel
• Unit of Measure: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC13-5016-K
