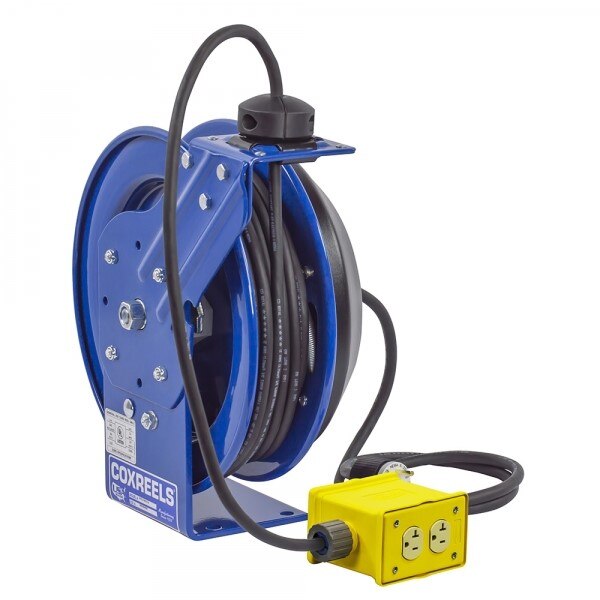

Coxreels PC13-5016-E Power Cord Reel 50 Ft Spring Drive

Product Description

The COXREELS PC13-5016-E is a spring-driven power cord reel built for heavy-duty industrial use. Part of the PC Series, it stores and self-retracts up to 50 feet of power cord, eliminating tangled extension cords on the job site. The reel is constructed with CNC robotically spun and ribbed steel discs with rolled edges for strength and operator safety. A powder-coated steel component cover and an enclosed cartridge-style motor make routine maintenance straightforward without removing the reel from its mount. Licensed electricians and industrial maintenance technicians are the primary installers of this reel type.

The PC13-5016-E is suited for workshops, service bays, manufacturing floors, and fleet maintenance facilities where a reliable, retractable power source is needed at a fixed station. The spring-drive mechanism provides automatic cord retraction, reducing trip hazards and wear on the cord. The reel ships as a single unit and includes a 5-foot lead cable with a grounding plug and an incandescent caged drop light with a tool tap plug, making it ready for immediate deployment in demanding environments.

Key Features

• Spring-driven self-retracting mechanism for automatic 50 ft cord retrieval
• External, easily accessible heavy-gauge powder-coated steel component cover allows slip ring maintenance without dismounting the reel
• Enclosed cartridge-style motor is fully lubricated and removable for safe, convenient servicing
• CNC robotically spun and ribbed steel discs with rolled edges for durability and operator safety
• Solid one-piece steel base with single pedestal design and no-weld support post for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations
• Includes 5 ft lead cable with grounding plug, adjustable rubber cord stop, and incandescent caged drop light with tool tap plug

Compatibility

Designed as a direct-use industrial power cord reel in the PC Series, modeled after the COXREELS P and SH Series platforms. Suitable for fixed or vehicle-mount installations requiring a retractable 50 ft power cord source.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. Disconnect all power to the circuit before mounting or servicing the reel. The multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting — verify that the mounting surface and fasteners are rated for the combined weight of the reel and cord under load. Do not exceed the cord capacity or electrical ratings marked on the reel.

Technical Specifications

• Cord Length: 50 feet
• Drive Type: Spring Drive
• Frame Material: Steel
• Length: 13 inches
• Width: 17 inches
• Height: 15.25 inches
• Weight: 36 pounds
• Sold As: Each
• UPC: 674255921108

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC13-5016-E
