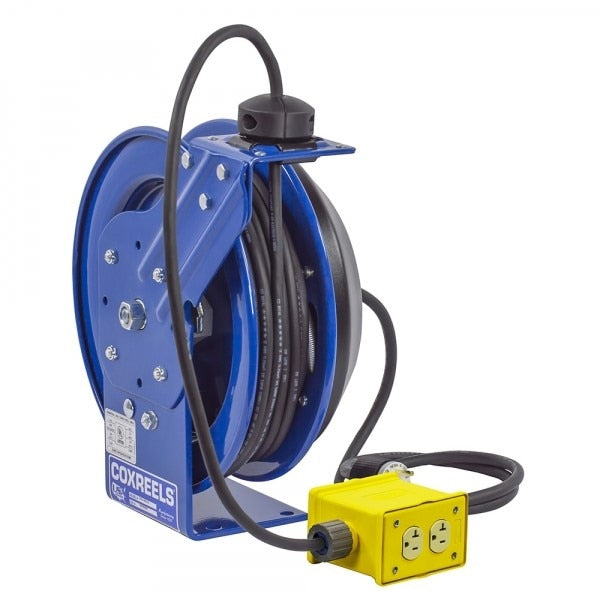

Coxreels PC13-5016-A Power Cord Reel 50 Ft Spring Steel

Product Description

The COXREELS PC13-5016-A is a heavy-duty, spring-driven power cord reel built for industrial and commercial applications where a reliable, self-retracting power source is required. Part of the COXREELS PC Series, this unit replaces tangled extension cords by automatically retracting up to 50 feet of cord with a smooth spring-drive mechanism. The steel construction and powder-coat finish are engineered for demanding environments. Licensed electricians and industrial maintenance technicians are the primary installers. The reel ships as a single unit and weighs 36 pounds.

The PC13-5016-A is designed for facilities, workshops, service bays, fleet maintenance operations, and other industrial settings where a permanent or semi-permanent overhead, wall, ceiling, or floor-mounted power source is needed. The multi-position guide arm accommodates all four mounting orientations, making this reel adaptable across a wide range of installation scenarios. A 5-foot lead cable and grounding plug are included, allowing connection to a fixed power supply without additional hardware in most standard installations.

Key Features

• Spring-drive self-retraction eliminates tangled extension cords and reduces trip hazards
• External component cover in heavy-gauge powder-coated steel allows slip ring maintenance without removing the reel from its mount
• Enclosed, lubricated cartridge-style motor is removable for safe, convenient servicing
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and cord protection
• Solid one-piece steel base with single pedestal and support post, no-weld construction for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• Includes 5-foot lead cable, grounding plug, adjustable solid rubber cord stop, and single industrial receptacle

Compatibility

Designed as an OEM-style industrial power cord reel replacement suitable for facilities, service, and maintenance applications requiring a self-retracting spring-driven cord management solution.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. Disconnect and lock out all power at the circuit before mounting or wiring the reel. Verify the mounting surface and hardware are rated to support the reel weight of 36 pounds plus cord load. Do not exceed the cord capacity or amperage rating of the installed receptacle and lead cable.

Technical Specifications

• Cord Capacity: 50 feet
• Drive Type: Spring
• Length: 13 inches
• Width: 17 inches
• Height: 15.25 inches
• Weight: 36 pounds
• Material: Steel
• Finish: Powder coat
• UPC: 674255921085

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC13-5016-A
