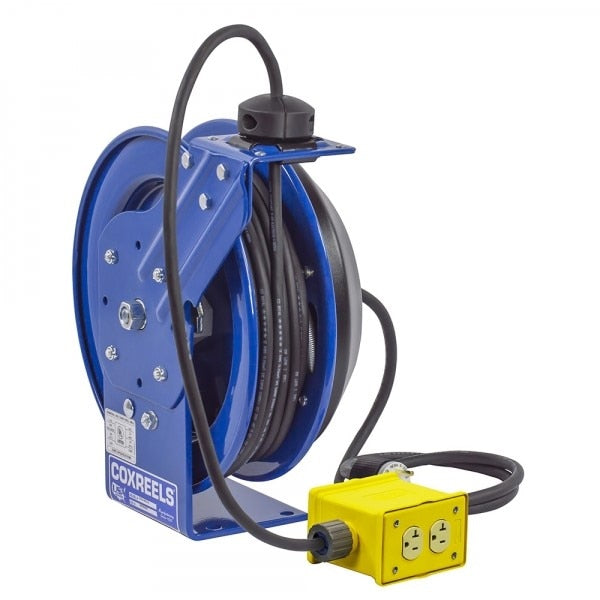

Coxreels PC13-5012-B Power Cord Reel 50 Ft Spring Drive

Product Description

The COXREELS PC13-5012-B is a spring-driven power cord reel built for heavy-duty industrial and commercial use. It replaces tangled extension cords by automatically retracting the cord after each use, reducing trip hazards and improving workflow efficiency. The reel is constructed from powder-coated steel and features CNC robotically spun and ribbed discs with rolled edges for structural strength and operator safety. A cartridge-style spring motor is enclosed and lubricated for reliable retraction across high-cycle applications. At 41 pounds and with a 50-foot cord capacity, this unit is sized for demanding shop, fleet, and facility service environments. Installation is handled by licensed electricians or experienced maintenance technicians.

The PC13-5012-B is designed for use in industrial facilities, service garages, vehicle maintenance bays, and commercial work environments where a permanent, retractable power source is needed. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations. A 5-foot lead cable and grounding plug are included for direct connection to a power source. The quad industrial receptacle provides four outlets at the cord end for simultaneous tool or equipment use.

Key Features

• Spring-driven retraction automatically rewinds the cord for tangle-free storage and improved job-site safety
• External component cover is powder-coated heavy-gauge steel and allows slip ring maintenance without removing the reel from its mount
• Enclosed, lubricated cartridge motor is removable for fast, safe servicing
• CNC robotically spun and ribbed discs with rolled edges provide strength, durability, and cord protection
• Single-pedestal steel base with one-piece no-weld construction for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, or vehicle mounting
• Includes 5-foot lead cable, grounding plug, adjustable solid rubber cord stop, and quad 4-plug industrial receptacle

Compatibility

Designed as an OEM-style replacement or new-installation power cord reel for industrial and commercial retractable cord reel applications requiring a spring-driven, heavy-duty steel unit with a 50-foot cord capacity.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. Disconnect and lock out all power to the circuit before mounting or wiring the reel. Verify the mounting surface can support the weight of the loaded reel and confirm the guide arm position matches the intended cord routing path before final fastening.

Technical Specifications

• Cord Length: 50 feet
• Drive Type: Spring drive
• Weight: 41 pounds
• Length: 13 inches
• Width: 17 inches
• Height: 15.25 inches
• Material: Steel
• Finish: Powder coat
• Receptacle: Quad 4-plug industrial
• Lead Cable: 5 feet
• Unit of Measure: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC13-5012-B
