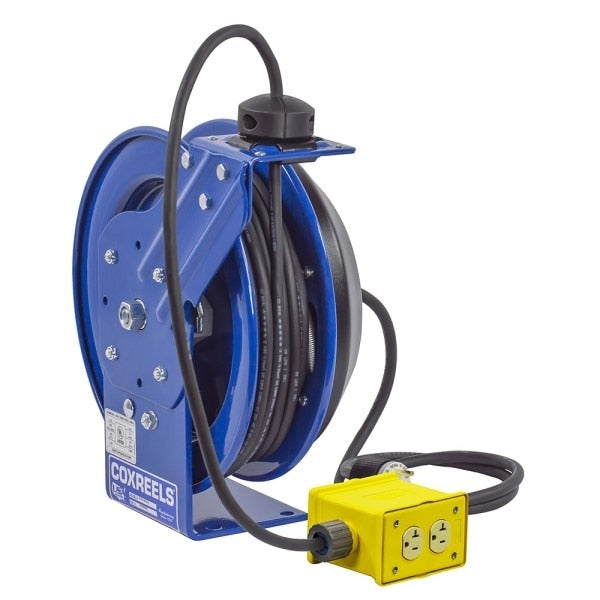

Coxreels PC13-3516-F Power Cord Reel 35 Ft Spring Drive

Product Description

The COXREELS PC13-3516-F is a heavy-duty, spring-driven power cord reel built for industrial and commercial applications where a permanent, retractable power source is needed. Part of the PC Series, this reel replaces tangled extension cords and self-retracts after use to reduce trip hazards and improve job-site safety. The unit is constructed with CNC robotically spun and ribbed steel discs featuring rolled edges for strength and operator safety. A powder-coated steel component cover and a lubricated, enclosed cartridge-style motor are engineered for long-lasting, trouble-free performance under demanding conditions. Licensed electricians and industrial maintenance professionals typically install this reel in shops, service bays, and facilities where a reliable, hands-free cord management system is required.

The PC13-3516-F is suited for stationary and mobile industrial environments including manufacturing facilities, fleet maintenance shops, and commercial service bays. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, giving installers flexibility across a wide range of mounting scenarios. The 35-foot cord capacity supports reach across large work areas without the clutter or safety risk of a loose extension cord. A 5-foot lead cable and grounding plug are included for direct connection to a power source.

Key Features

• Spring-driven self-retraction eliminates loose cord hazards and speeds workflow
• External, easily accessible heavy-gauge powder-coated steel component cover allows slip ring maintenance without removing the reel from its mount
• Lubricated, enclosed cartridge-style motor is removable for safe, convenient servicing
• CNC robotically spun and ribbed discs with rolled edges provide strength, durability, and cord protection
• Solid one-piece steel base and support post with no-weld single pedestal design for maximum stability
• Includes duplex GFCI metal industrial receptacle, adjustable solid rubber cord stop, and 5-foot lead cable with grounding plug
• Long-lasting, chip-resistant, rust-inhibiting powder coat finish with permanently lubricated precision bearings

Compatibility

Designed as an OEM-style industrial cord reel for permanent installation in facilities, service bays, and mobile vehicle applications requiring a retractable power cord management solution.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements for cord and plug connections and receptacle placement. Power down the circuit at the breaker before making any electrical connections. The multi-position guide arm must be secured to a structurally sound mounting surface capable of supporting the reel and cord load. Do not exceed the cord reel's rated electrical capacity during operation.

Technical Specifications

• Cord Length: 35 feet
• Drive Type: Spring Drive
• Body Material: Steel
• Length: 13 inches
• Width: 17 inches
• Height: 15.25 inches
• Weight: 36 pounds
• UPC: 674255921498

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC13-3516-F
