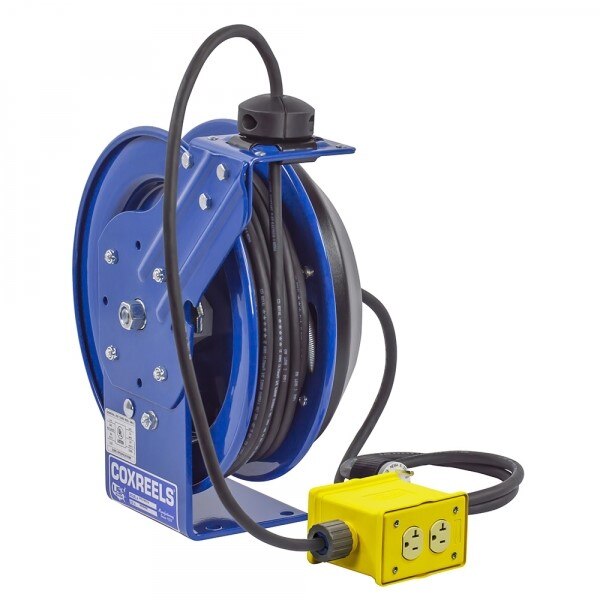

Coxreels PC13-3516-A Power Cord Reel 35 Ft Spring Drive

Product Description

The COXREELS PC13-3516-A is a spring-driven power cord reel built for heavy-duty industrial environments. It stores and self-retracts up to 35 feet of power cord, eliminating the tangle and trip hazards associated with loose extension cords. The reel is constructed from powder-coated steel and features CNC robotically spun and ribbed discs with rolled edges for structural rigidity and cord protection. A permanently lubricated, enclosed cartridge-style motor drives retraction and is removable for field maintenance. Licensed electricians and industrial maintenance technicians are the primary installers of this unit across shops, service bays, and fleet facilities.

The PC13-3516-A suits fixed installations in commercial and industrial settings where a reliable overhead, wall, or floor-mounted power source is required. Its multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations. The unit ships with a 5-foot lead cable and grounding plug, along with a single industrial receptacle, making it ready for direct integration into a permanent electrical circuit. It is appropriate for automotive service centers, manufacturing floors, and heavy equipment maintenance facilities.

Key Features

• Spring-driven self-retraction eliminates manual cord winding and reduces workplace trip hazards
• CNC robotically spun and ribbed steel discs with rolled edges for strength and cord protection
• Externally accessible component cover allows slip ring maintenance without removing the reel from its mount
• Enclosed, lubricated cartridge-style motor is fully removable for safe field servicing
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting orientations
• Solid one-piece steel base with single pedestal support post, no-weld construction, for maximum stability
• Chip-resistant, rust-inhibiting powder coat finish with adjustable solid rubber cord stop

Compatibility

Designed as an OEM-style replacement or direct-fit unit within the COXREELS PC Series, modeled after the P and SH Series reel platforms for commercial and industrial power cord management applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements for fixed wiring and receptacle circuits. Disconnect and lock out all power to the circuit before mounting or making electrical connections. The multi-position guide arm must be secured to a structural surface rated for the combined static and dynamic load of the reel and cord. Do not exceed the cord capacity or amperage rating of the installed receptacle and lead cable.

Technical Specifications

• Cord Capacity: 35 feet
• Drive Type: Spring drive
• Housing Material: Steel with powder coat finish
• Length: 13 inches
• Width: 17 inches
• Height: 15.25 inches
• Weight: 34 pounds
• UPC: 674255921023

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC13-3516-A
