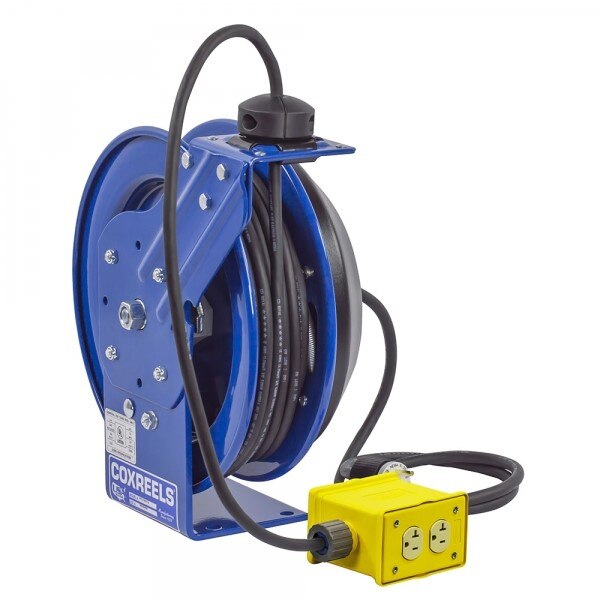

Coxreels PC13-3512-F Power Cord Reel 35 Ft Spring Drive

Product Description

The COXREELS PC13-3512-F is a spring-driven power cord reel built for heavy-duty industrial and commercial use. It replaces tangled extension cords with a self-retracting design that improves job-site safety and keeps workflows moving. The reel stores up to 35 feet of cord and returns it automatically when not in use. Key construction features include CNC robotically spun and ribbed steel discs with rolled edges for strength and cord protection, a lubricated enclosed cartridge-style motor for reliable retraction, and a duplex GFCI metal industrial receptacle. Licensed electricians and industrial maintenance technicians are the primary installers. The unit ships ready for wall, floor, ceiling, or vehicle mounting.

The PC13-3512-F is suited for industrial facilities, maintenance shops, vehicle service bays, and similar environments where a permanent, retractable power source is needed at a fixed station. The spring-driven mechanism eliminates the need for a power source to retract the cord, making it practical in locations where manual cord management creates a hazard or a productivity bottleneck. The external component cover allows slip ring maintenance without removing the reel from its mount, a meaningful advantage in high-uptime environments. A 5-foot lead cable and grounding plug are included.

Key Features

• Self-retracting spring drive returns 35 feet of cord automatically
• CNC robotically spun and ribbed steel discs with rolled edges for durability and cord protection
• External component cover allows slip ring maintenance without dismounting the reel
• Enclosed cartridge-style motor is lubricated and removable for servicing
• Duplex GFCI metal industrial receptacle with adjustable solid rubber cord stop
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting
• Powder coat finish rated chip-resistant and rust-inhibiting

Compatibility

Designed as an OEM-style heavy-duty industrial power cord reel in the COXREELS PC Series, modeled after the P and SH Series platforms for cross-compatible mounting and maintenance practices.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with applicable NEC requirements for cord-and-plug connected equipment and GFCI protection. Power down and lock out the circuit before mounting or making any electrical connections. The single-pedestal steel base should be secured to a structurally sound surface using fasteners appropriate for the mounting material. Do not exceed the cord reel's rated amperage or cord length when configuring the installation.

Technical Specifications

• Cord Length: 35 feet
• Drive Type: Spring
• Receptacle Type: Duplex GFCI metal industrial
• Base Material: Steel
• Disc Construction: CNC spun ribbed steel with rolled edges
• Length: 13 inches
• Width: 17 inches
• Height: 15.25 inches
• Weight: 39 pounds
• UPC: 674255921511

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC13-3512-F
