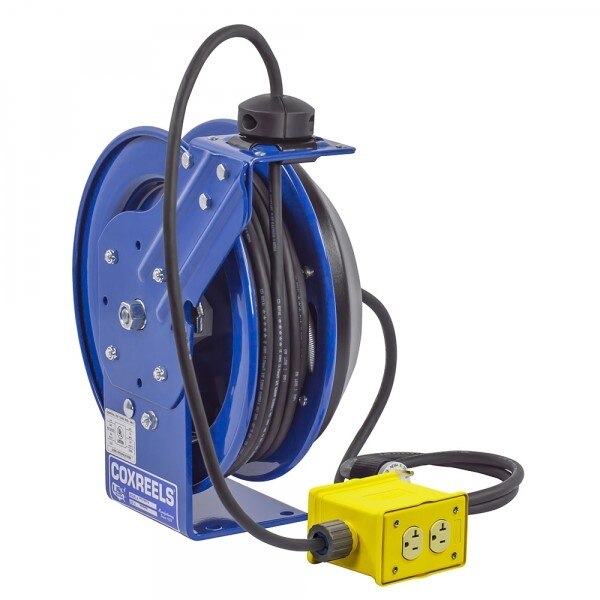

Coxreels PC13-3512-B Power Cord Reel 35 Ft Spring Drive

Product Description

The COXREELS PC13-3512-B is a heavy-duty, industrial-grade spring-driven power cord reel designed to replace tangled extension cords in demanding work environments. Part of the PC Series, it features a self-retracting spring drive mechanism that retrieves the cord automatically, reducing trip hazards and improving job-site efficiency. The reel is constructed with CNC robotically spun and ribbed steel discs with rolled edges for strength and operator safety. Key hardware includes a quad industrial receptacle, a 5-foot lead cable with grounding plug, and permanently lubricated precision bearings. At 38 pounds with a steel base and powder coat finish, this unit is built for long-lasting, trouble-free service.

The PC13-3512-B is suited for industrial, commercial, and fleet maintenance applications where a reliable, retractable power source is needed at a fixed station. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it adaptable across shop, garage, and service bay installations. The 35-foot cord capacity covers a wide working radius without the clutter of loose extension cords. Electricians, maintenance technicians, and fleet service professionals are the primary installers and end users of this reel.

Key Features

• Spring-driven self-retracting mechanism automatically retrieves the power cord
• CNC robotically spun and ribbed steel discs with rolled edges for durability and operator safety
• External component cover in heavy-gauge powder-coated steel allows slip ring maintenance without removing the reel from its mount
• Enclosed cartridge-style motor is fully removable for convenient field maintenance
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations
• Includes 5-foot lead cable, grounding plug, adjustable solid rubber cord stop, and quad industrial receptacle

Compatibility

Designed as an OEM-style heavy-duty industrial power cord reel for fixed and vehicle-mounted service installations requiring a spring-driven retractable cord management solution.

Installation Notes

Installation is typically performed by a licensed electrician or qualified maintenance technician. Disconnect and lock out all power to the circuit before mounting or wiring the reel. Mounting hardware selection should match the surface type and load requirements; confirm the mounting position using the adjustable guide arm before final fastening. Follow all applicable NEC requirements for cord and receptacle installations in the intended environment.

Technical Specifications

• Cord Length: 35 feet
• Drive Type: Spring Drive
• Material: Steel
• Finish: Powder Coat
• Length: 13 inches
• Width: 17 inches
• Height: 15.25 inches
• Weight: 38 pounds
• UPC: 674255921016

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC13-3512-B
