Coxreels PC13-3512-A Power Cord Reel 35 Ft Spring Drive

Product Description

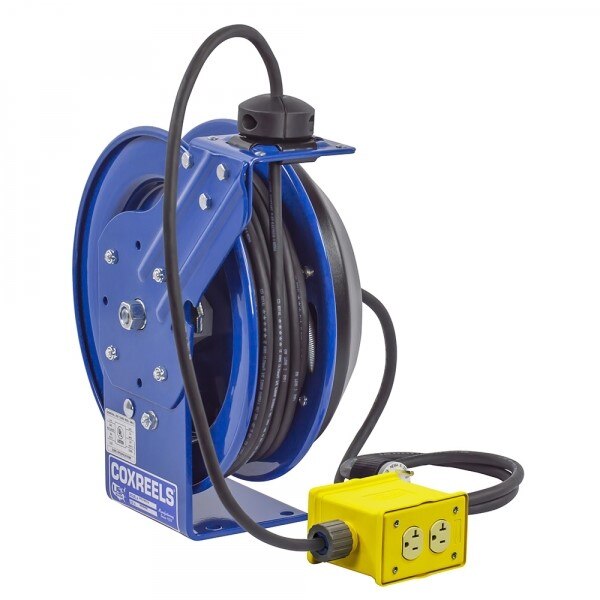

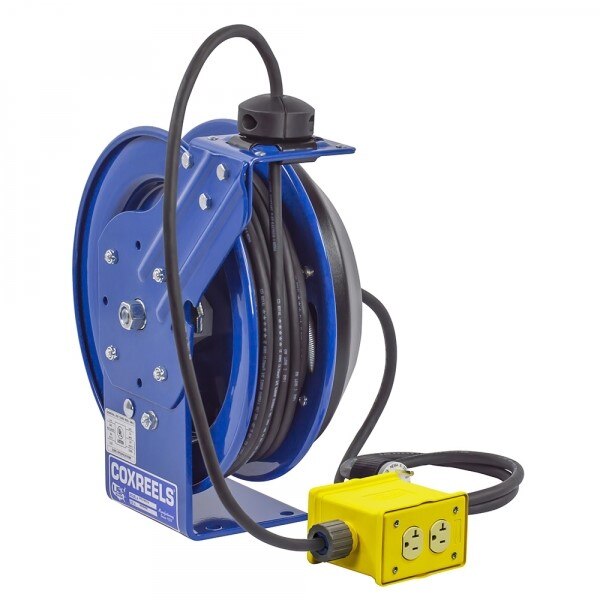

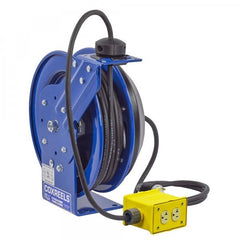

The COXREELS PC13-3512-A is a spring-driven power cord reel built for heavy-duty industrial use. Part of the PC Series, it replaces tangled extension cords with a self-retracting design that improves jobsite safety and workflow efficiency. The reel is modeled after the proven P and SH Series and engineered for long-lasting, trouble-free performance under demanding conditions. Key construction features include CNC robotically spun and ribbed steel discs with rolled edges, a sturdy single-pedestal steel base, and a cartridge-style spring motor. Licensed electricians and industrial maintenance technicians are the primary installers of this product.

The PC13-3512-A is suited for industrial and commercial environments where a reliable, retractable power source is needed at a fixed station or vehicle mount. It accommodates 35 feet of cord and ships with a 5-foot lead cable and grounding plug, along with a single industrial receptacle. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it adaptable to a wide range of service bays, workshops, and facility maintenance applications.

Key Features

• Spring-driven self-retracting mechanism eliminates tangled extension cords and reduces trip hazards
• External component cover in powder-coated steel allows slip ring maintenance without removing the reel from its mount
• Enclosed, lubricated cartridge-style spring motor is removable for safe and straightforward servicing
• CNC robotically spun and ribbed discs with rolled edges provide added strength, cord protection, and operator safety
• Single-pedestal base uses a solid one-piece steel support post with no welds for maximum stability
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations
• Includes adjustable solid rubber cord stop, 5-foot lead cable with grounding plug, and single industrial receptacle

Compatibility

Designed as an OEM-style replacement and upgrade solution for industrial spring-driven cord reel applications requiring a 35-foot retractable power cord in heavy-duty service environments.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with applicable NEC requirements. Disconnect and lock out all power sources before mounting or servicing the reel. Verify that the mounting surface and hardware are rated for the weight and pull load of the reel before securing. Do not exceed the cord capacity or voltage and amperage ratings marked on the unit.

Technical Specifications

• Cord Length: 35 feet
• Drive Type: Spring Drive
• Material: Steel
• Finish: Powder Coat
• Length: 13 inches
• Width: 17 inches
• Height: 15.25 inches
• Weight: 37 pounds
• Unit of Measure: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC13-3512-A
