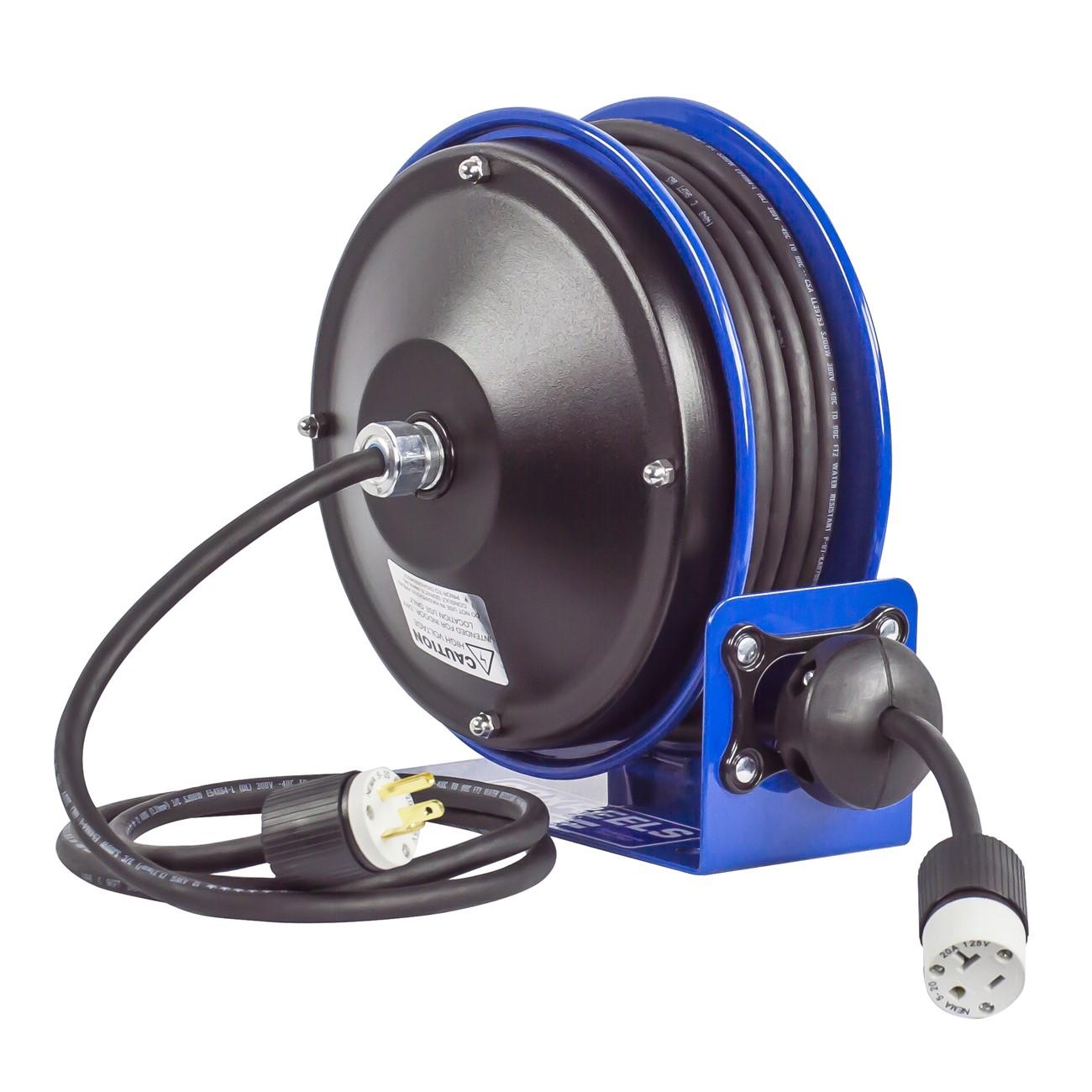

Coxreels PC10L-3016 Power Cord Reel 30 Ft Spring Drive Steel

Product Description

The COXREELS PC10L-3016 is a compact, spring-driven power cord reel built for commercial and industrial environments where space is at a premium. Part of the PC10 Series, it manages up to 30 feet of power cord and retracts automatically via an internal spring drive mechanism. The reel is constructed with heavy-gauge 12GA steel components and features a powder-coated finish for chip resistance and rust inhibition. A composite ratchet hub with self-lubricating bronze bearings locks the cord at any desired extension length, making it well suited for repeat-use tool and equipment stations in shops, warehouses, and service bays.

This cord reel is designed for commercial and industrial applications where durable, space-efficient cord management is required. Its compact footprint makes it appropriate for fixed wall or ceiling mounts in facilities where overhead or floor space is limited. Electricians and maintenance technicians commonly install this type of reel in machine shops, automotive service facilities, manufacturing floors, and similar environments that demand reliable retractable cord management on a daily basis.

Key Features

• Spring-driven retraction automatically rewinds up to 30 feet of power cord
• Heavy-gauge 12GA one-piece steel base and support post for maximum stability
• Composite ratchet hub with self-lubricating bronze bearings locks cord at any length
• CNC robotically spun and ribbed steel discs with rolled edges for strength and operator safety
• Continuous-radius composite grommet cord guide prevents pinching or snagging during operation
• Powder-coated steel component cover allows slip-ring maintenance without removing the reel from its mount

Compatibility

Designed as an OEM-style replacement and direct-fit unit within the COXREELS PC10 Series, suitable for commercial and industrial cord management installations.

Installation Notes

Installation is typically performed by a licensed electrician or qualified maintenance technician. Power down and lock out the circuit before making any wiring connections to the slip ring assembly. The reel should be mounted to a structurally sound wall, ceiling, or post capable of supporting the loaded weight of the unit and cord. Follow applicable NEC requirements for cord and wiring methods at the installation location.

Technical Specifications

• Cord Capacity: 30 feet
• Drive Type: Spring Drive
• Frame Material: Steel
• Base Gauge: 12GA Steel
• Finish: Powder Coat
• Length: 16.5 inches
• Width: 12.5 inches
• Height: 13.5 inches
• Weight: 11 pounds
• UPC: 674255924550

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC10L-3016
