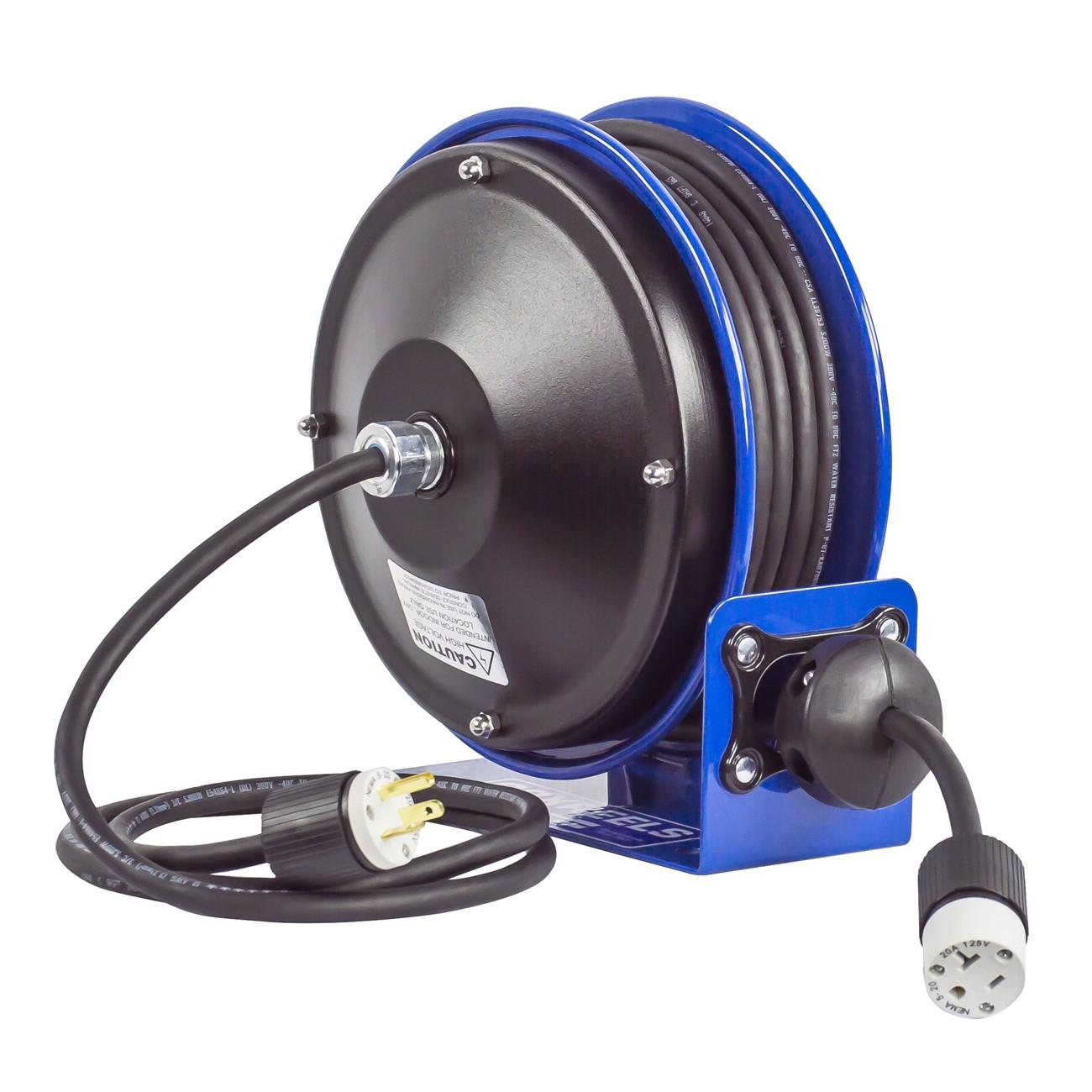

Coxreels PC10L-3012 Power Cord Reel 30 Ft Spring Drive

Product Description

The COXREELS PC10L-3012 is a compact, spring-driven power cord reel built for commercial and industrial environments where space is at a premium. Part of the PC10 Series, it manages up to 30 feet of power cord and returns it automatically via an internal spring drive. The reel is constructed on a solid one-piece 12-gauge steel base with CNC robotically spun and ribbed steel discs for strength and durability. An external component cover allows slip ring maintenance without removing the reel from its mount. Licensed electricians and industrial maintenance technicians install this unit in facilities, shops, and job sites where overhead or wall-mounted cord management is required.

The PC10L-3012 is designed for commercial and industrial cord management applications where available floor or wall space is limited. It suits manufacturing floors, service garages, warehouses, and similar settings that require retractable cord access at a fixed station. The continuous-radius composite grommet guides the cord smoothly during extension and retraction, reducing wear on the cord jacket. The non-corrosive composite ratchet hub with self-lubricating bronze bearings allows the cord to be secured at any desired length during use.

Key Features

• Spring drive automatically retracts up to 30 feet of power cord
• One-piece 12-gauge steel base and support post for rigid, stable mounting
• CNC robotically spun and ribbed discs with rolled edges for cord protection and operator safety
• External component cover allows slip ring maintenance without dismounting the reel
• Continuous-radius composite grommet prevents cord pinching or catching during operation
• Powder coat finish is chip-resistant and rust-inhibiting for long service life

Compatibility

Designed as an OEM-style replacement or direct-install cord reel for commercial and industrial power cord management systems requiring a compact spring-driven unit.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with applicable NEC requirements. De-energize the circuit and lock out the power source before making any electrical connections to the reel. Ensure the mounting surface and hardware are rated for the combined weight of the reel and cord. Do not exceed the cord capacity or load rating specified for the installed cord type.

Technical Specifications

• Cord Capacity: 30 feet
• Drive Type: Spring drive
• Base Material: 12-gauge steel
• Disc Construction: CNC spun ribbed steel with rolled edges
• Finish: Powder coat, chip-resistant and rust-inhibiting
• Length: 16.5 inches
• Width: 12.5 inches
• Height: 13.5 inches
• Weight: 11 pounds
• UPC: 674255924543

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC10L-3012
