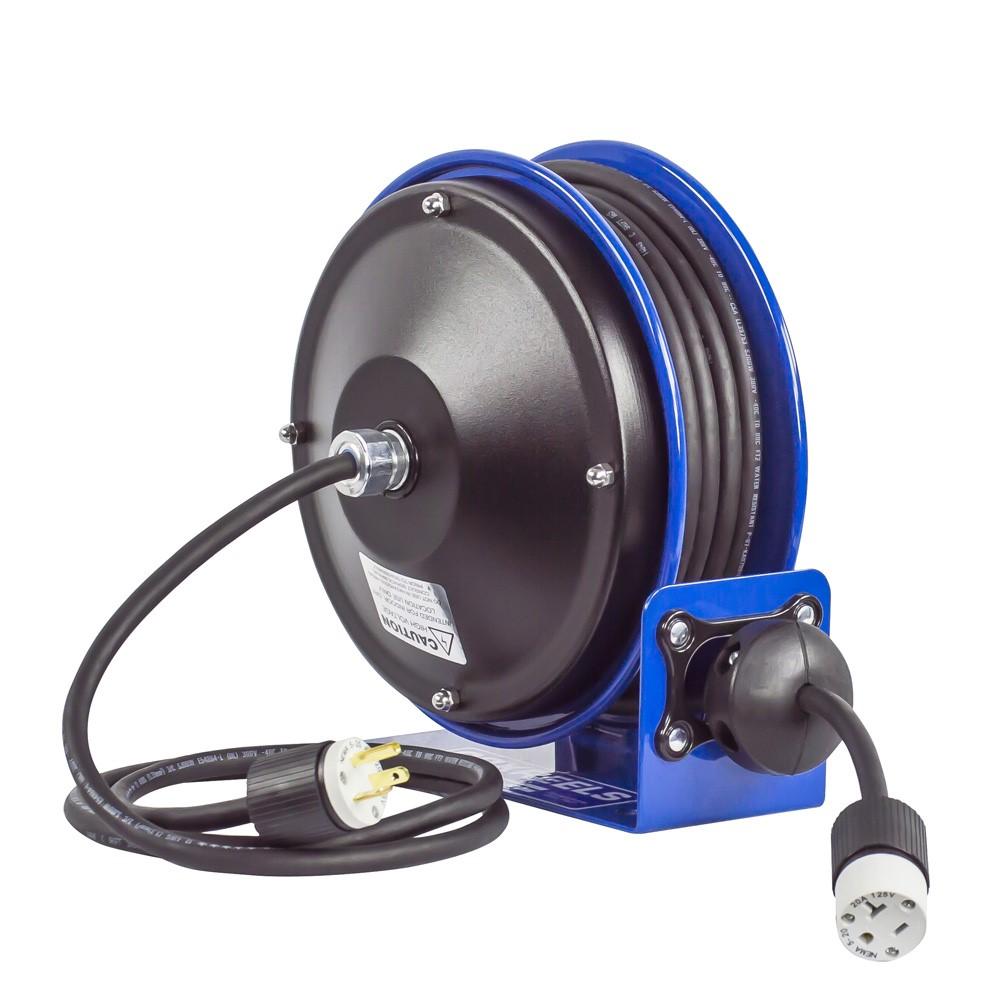

Coxreels PC10-3016-X Power Cord Reel 30 Ft Spring Drive

Product Description

The COXREELS PC10-3016-X is a spring-driven power cord reel built for demanding commercial and industrial environments where cord management and space efficiency are both critical. Part of the PC10 Series, this reel features CNC robotically spun and ribbed steel discs with rolled edges for strength and operator safety, a CoxComposite ratchet hub with self-lubricating bronze bearings, and a continuous-radius grommet design that prevents the cord from pinching or catching during extension and retraction. The unit ships as a single assembly weighing 14 pounds, with a footprint of 16.5 inches long, 12.5 inches wide, and 13.5 inches tall.

This reel is intended for commercial and industrial applications where wall, ceiling, or fixed-mount cord management is required and overhead space is limited. The compact spring-drive mechanism allows for controlled cord retraction without manual winding. It is suited for maintenance bays, manufacturing floors, service garages, and similar environments where a reliable, fixed-position cord drop point is needed. Licensed electricians and industrial maintenance technicians are the primary installers for this type of equipment.

Key Features

• Spring-driven retraction mechanism for automatic cord retrieval without manual winding
• CNC robotically spun and ribbed steel discs with rolled edges for structural durability and operator safety
• CoxComposite ratchet hub with self-lubricating bronze bearings secures cord at desired extension length
• Continuous-radius CoxComposite grommet prevents cord pinching or snagging during operation
• External component cover in heavy-gauge powder-coated steel allows slip ring maintenance without removing the reel from its mount
• Solid one-piece 12-gauge steel base and support post with chip-resistant, rust-inhibiting CPC powder coat finish
• Includes 5-foot lead cable with grounding plug and adjustable solid rubber cord stop

Compatibility

Designed as an OEM-style replacement or direct-install spring-driven power cord reel for commercial and industrial fixed-mount cord management systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements for cord and plug connections in commercial and industrial settings. Disconnect and lock out all power sources before servicing the slip ring assembly or any internal electrical components. The external component cover is designed for tool-accessible maintenance without dismounting the reel, but full installation or removal from a fixed mount requires appropriate fasteners and structural anchor points rated for the load. Verify the mounting surface can support the combined weight of the reel and the cord at full extension.

Technical Specifications

• Cord Capacity: 30 ft
• Drive Type: Spring Drive
• Base Material: 12-gauge Steel
• Disc Construction: CNC Spun Ribbed Steel with Rolled Edges
• Length: 16.5 inches
• Width: 12.5 inches
• Height: 13.5 inches
• Weight: 14 pounds
• Finish: CPC Powder Coat
• Sold As: Each
• UPC: 674255924536

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC10-3016-X
