Coxreels PC10-3016-F Power Cord Reel 30 Ft Spring Drive

Product Description

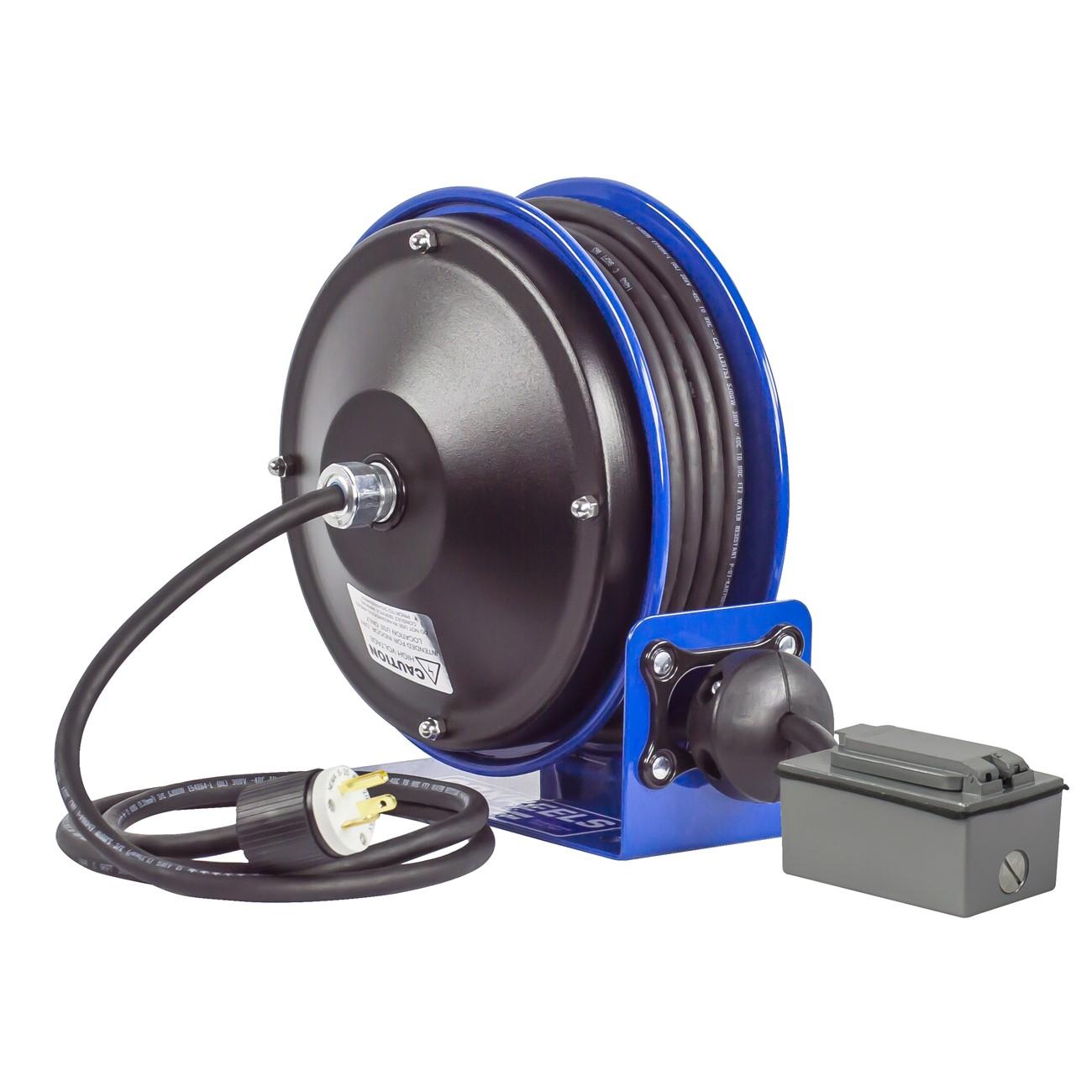

The COXREELS PC10-3016-F is a spring-driven power cord reel built for commercial and industrial environments where cord management space is at a premium. Constructed on a solid one-piece 12-gauge steel base, this unit holds 30 feet of cord and returns it automatically via an internal spring drive mechanism. The reel weighs 16 pounds and measures 16.5 inches long, 12.5 inches wide, and 13.5 inches tall, making it a compact option for tight installations. A duplex GFCI metal industrial receptacle is built in, and the unit ships with a 5-foot lead cable and grounding plug. Licensed electricians and industrial maintenance technicians are the primary installers.

The PC10-3016-F suits commercial and industrial applications where overhead or wall-mounted cord management is required and floor space is limited. Its compact footprint makes it a practical choice for service bays, maintenance shops, warehouses, and light manufacturing facilities. The spring-drive retraction keeps cords off the floor and reduces trip hazards without requiring manual rewinding. The unit is sold individually and is appropriate for single-phase power cord deployment in fixed or semi-permanent mounting scenarios.

Key Features

• Spring-drive automatic retraction keeps 30 feet of cord under controlled tension
• One-piece 12-gauge steel base and support post for structural rigidity
• CNC robotically spun and ribbed steel discs with rolled edges for durability and cord protection
• Non-corrosive composite ratchet hub with self-lubricating bronze bearings locks cord at desired extension
• Continuous-radius composite grommet cord guide prevents pinching or catching during retraction
• External component cover allows slip ring maintenance without removing the reel from its mount
• Duplex GFCI metal industrial receptacle, 5-foot lead cable, grounding plug, and adjustable solid rubber cord stop included

Compatibility

Designed as an OEM-style replacement and direct-fit unit for commercial and industrial spring-driven power cord reel applications requiring a 30-foot capacity with GFCI protection.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. Disconnect and de-energize the circuit before connecting or servicing the reel. Mount to a structurally adequate surface using hardware rated for the combined weight of the reel and fully loaded cord. Do not exceed the cord or amperage ratings marked on the unit.

Technical Specifications

• Cord Capacity: 30 feet
• Drive Type: Spring drive
• Base Material: 12-gauge steel
• Receptacle Type: Duplex GFCI metal industrial
• Lead Cable Length: 5 feet
• Length: 16.5 inches
• Width: 12.5 inches
• Height: 13.5 inches
• Weight: 16 pounds
• UPC: 674255924529

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC10-3016-F
