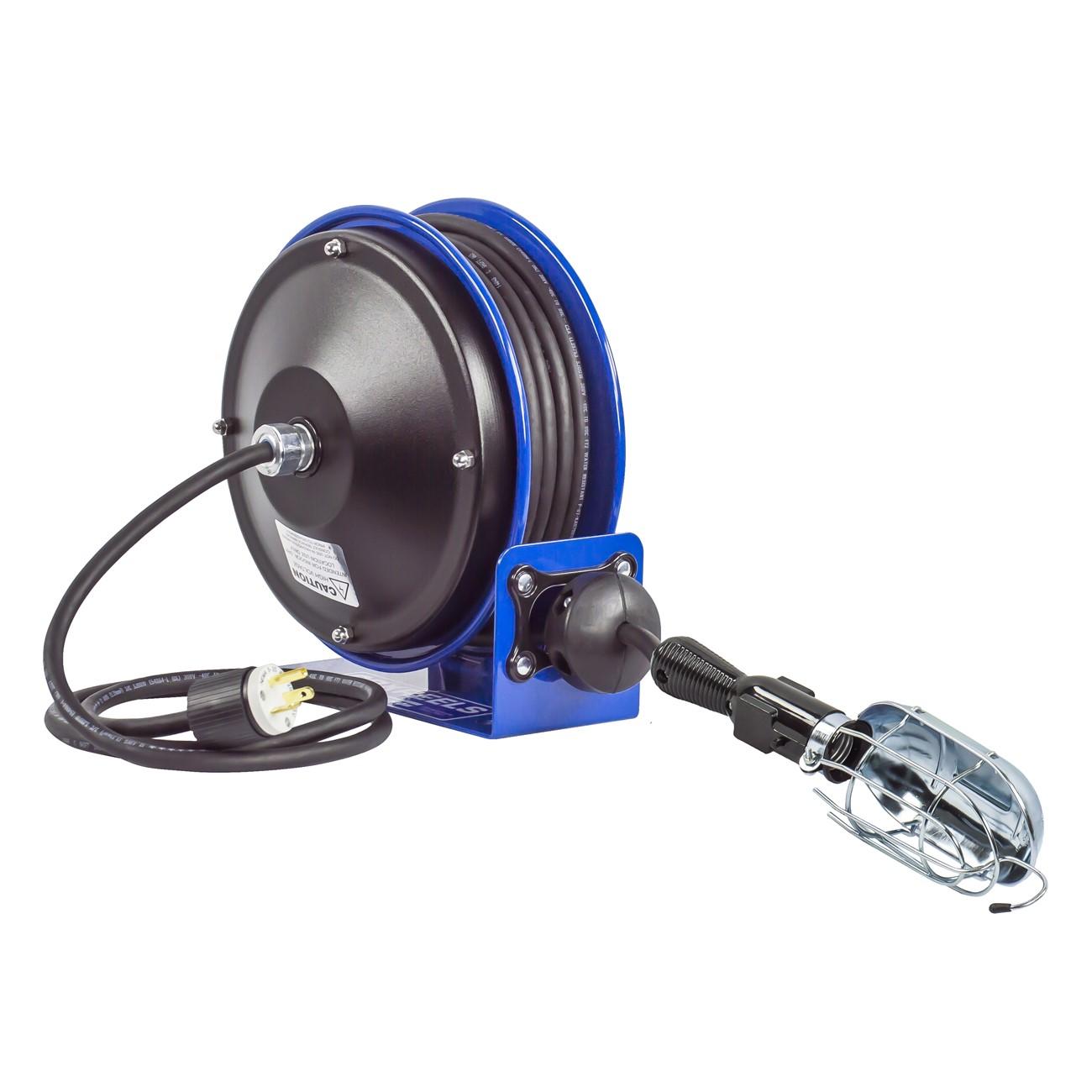

Coxreels PC10-3016-E Power Cord Reel 30 Ft Spring Drive

Product Description

The COXREELS PC10-3016-E is a compact, spring-driven power cord reel built for commercial and industrial environments where reliable cord management and limited floor space are both everyday realities. The reel features a CNC robotically spun and ribbed steel disc construction with rolled edges for strength and operator safety, a composite ratchet hub with self-lubricating bronze bearings, and a continuous-radius grommet cord guide that prevents pinching or catching during cord extension and retraction. At 14 pounds and measuring 16.5 inches long by 12.5 inches wide by 13.5 inches tall, it is a lightweight yet durable solution for electricians and facility maintenance professionals who need dependable cord management on the job.

The PC10-3016-E is designed for commercial and industrial applications where space is at a premium. The 30-foot cord capacity suits a wide range of task lighting, power tool, and general electrical access needs across shop floors, warehouses, and service bays. Its external component cover allows access to the slip ring for routine maintenance without removing the reel from its mount, making it well-suited for permanently installed setups. The unit ships as a single piece and is intended for wall, ceiling, or post mounting by a qualified electrician.

Key Features

• Spring-driven retraction with a composite ratchet hub and self-lubricating bronze bearings for smooth, consistent cord control
• CNC robotically spun and ribbed steel discs with rolled edges for added durability and operator safety
• Continuous-radius composite grommet cord guide prevents pinching and catching during operation
• External component cover provides easy slip ring access for routine maintenance without dismounting the reel
• Solid one-piece 12-gauge steel base and support post for maximum stability
• Chip-resistant, rust-inhibiting powder coat finish on steel components for long service life

Compatibility

Designed as an OEM-style replacement or direct-install cord reel for commercial and industrial power cord management systems requiring a compact spring-driven unit with a 30-foot cord capacity.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. Power down all circuits at the breaker before beginning installation or maintenance on the slip ring assembly. Mount the unit securely to a structurally sound wall, ceiling, or post using hardware rated for the load. Do not exceed the rated cord length or load capacity of the reel.

Technical Specifications

• Cord Length: 30 feet
• Drive Type: Spring Drive
• Disc Material: Steel
• Base Material: 12-gauge Steel
• Length: 16.5 inches
• Width: 12.5 inches
• Height: 13.5 inches
• Weight: 14 pounds
• UPC: 674255924512

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC10-3016-E
