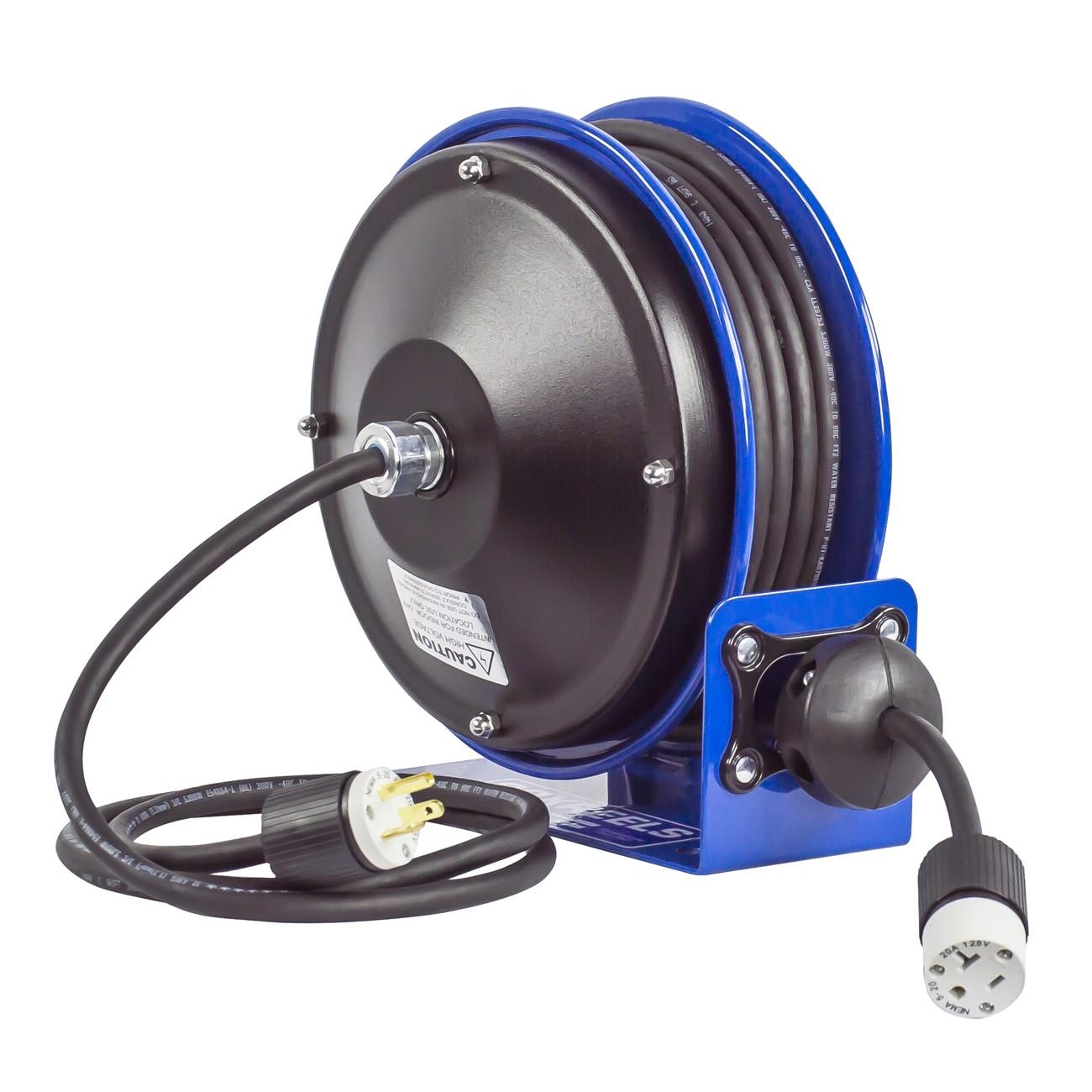

Coxreels PC10-3016-A Power Cord Reel 30 Ft Spring Drive

Product Description

The COXREELS PC10-3016-A is a compact, spring-driven power cord reel designed for commercial and industrial environments where cord management space is at a premium. The reel holds 30 feet of power cord and returns it automatically via a spring drive mechanism. Construction centers on a 12-gauge steel base and support post, CNC robotically spun and ribbed steel discs with rolled edges, and a CoxComposite ratchet hub with self-lubricating bronze bearings. A continuous-radius grommet guides the cord without pinching or catching during retraction. Licensed electricians and industrial maintenance technicians are the primary installers and service personnel for this unit.

The PC10-3016-A fits commercial and industrial facilities where overhead or floor-mounted cord management is required and available floor space is limited. Typical applications include machine shops, assembly lines, service bays, and maintenance areas that require a reliable, retractable power source at a fixed station. The reel ships as a single unit and is sold individually. Its compact footprint makes it well-suited for installations where standard full-size cord reels cannot be accommodated.

Key Features

• Spring drive mechanism automatically retracts 30 feet of power cord
• 12-gauge one-piece steel base and support post for structural stability
• CNC robotically spun and ribbed discs with rolled edges for cord protection and operator safety
• CoxComposite ratchet hub with self-lubricating bronze bearings locks cord at desired extension length
• Continuous-radius CoxComposite grommet prevents pinching or snagging during operation
• External component cover in heavy-gauge powder-coated steel allows slip ring maintenance without removing the reel from its mount
• Includes 5-foot lead cable, grounding plug, adjustable solid rubber cord stop, and single industrial receptacle

Compatibility

Designed as an OEM-style replacement and general-use cord reel for commercial and industrial power cord management applications.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. Disconnect and lock out all power sources before servicing the slip ring or any internal components. Mount the reel to a structurally sound surface capable of supporting the unit and the weight of a fully extended cord under tension. The external component cover can be removed for slip ring maintenance without dismounting the reel.

Technical Specifications

• Cord Capacity: 30 feet
• Drive Type: Spring Drive
• Base Material: 12-gauge Steel
• Length: 16.5 inches
• Width: 12.5 inches
• Height: 13.5 inches
• Weight: 14 pounds
• UPC: 674255924482

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC10-3016-A
