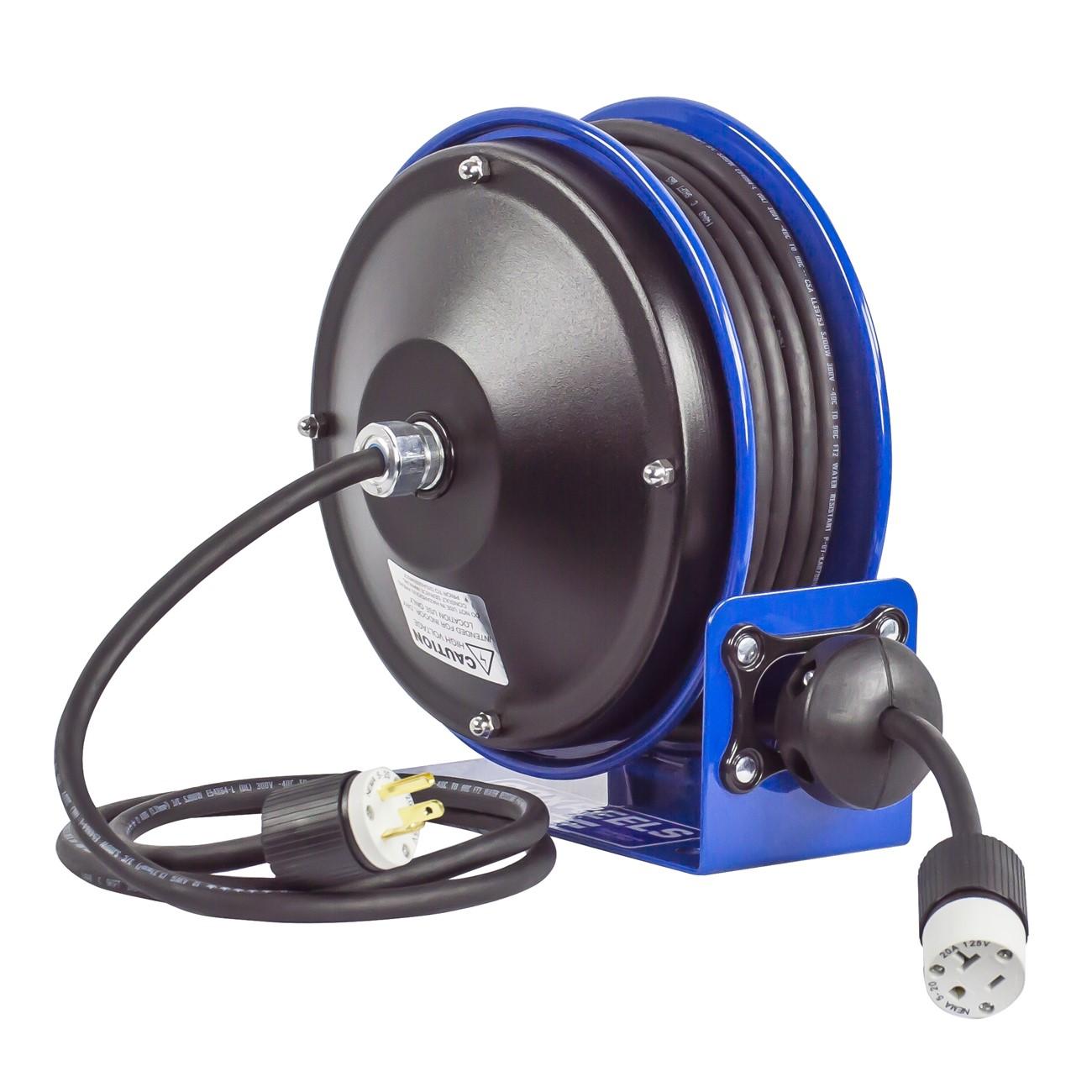

Coxreels PC10-3016-4 Power Cord Reel 30 Ft Spring Drive

Product Description

The COXREELS PC10-3016-4 is a spring-driven power cord reel built for commercial and industrial environments where space is at a premium. Part of the COXREELS PC10 Series, it manages up to 30 feet of power cord using a continuous-radius grommet-style cord guide that eliminates pinching and snagging during extension and retraction. The reel is constructed around a solid one-piece 12-gauge steel base and support post, with CNC robotically spun and ribbed steel discs featuring rolled edges for structural strength and operator safety. A powder-coat finish resists chipping and rust. Licensed electricians and industrial maintenance technicians are the typical installers for this class of cord management equipment.

The PC10-3016-4 is suited for commercial facilities, manufacturing floors, maintenance shops, and any industrial setting where a compact, wall- or bench-mounted cord reel is needed to manage power distribution safely. The spring-drive mechanism returns the cord automatically, keeping work areas clear and reducing trip hazards. Its compact footprint makes it practical in tight service bays, equipment rooms, and overhead mounting locations where full-size reels are not an option.

Key Features

• Spring-drive retraction automatically retrieves up to 30 feet of power cord
• Continuous-radius composite grommet cord guide prevents pinching and catching during operation
• CNC robotically spun ribbed steel discs with rolled edges for strength, durability, and operator safety
• Solid one-piece 12-gauge steel base and support post for maximum stability
• External, heavy-gauge steel component cover allows slip ring maintenance without removing the reel from its mount
• Non-corrosive composite ratchet hub with self-lubricating bronze bearings locks cord at desired extension length
• Chip-resistant, rust-inhibiting powder-coat finish with permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement and direct-fit cord management solution for commercial and industrial power cord reel applications requiring a compact spring-driven unit with up to 30 feet of cord capacity.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize all circuits before connecting or servicing the reel. Ensure the mounting surface and hardware are rated for the combined weight of the reel and fully loaded cord. Do not exceed the cord capacity or amperage rating specified on the reel nameplate.

Technical Specifications

• Cord Capacity: 30 feet
• Drive Type: Spring drive
• Base Material: 12-gauge steel
• Length: 16.5 inches
• Width: 12.5 inches
• Height: 13.5 inches
• Weight: 15 pounds
• UPC: 674255924475

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC10-3016-4
