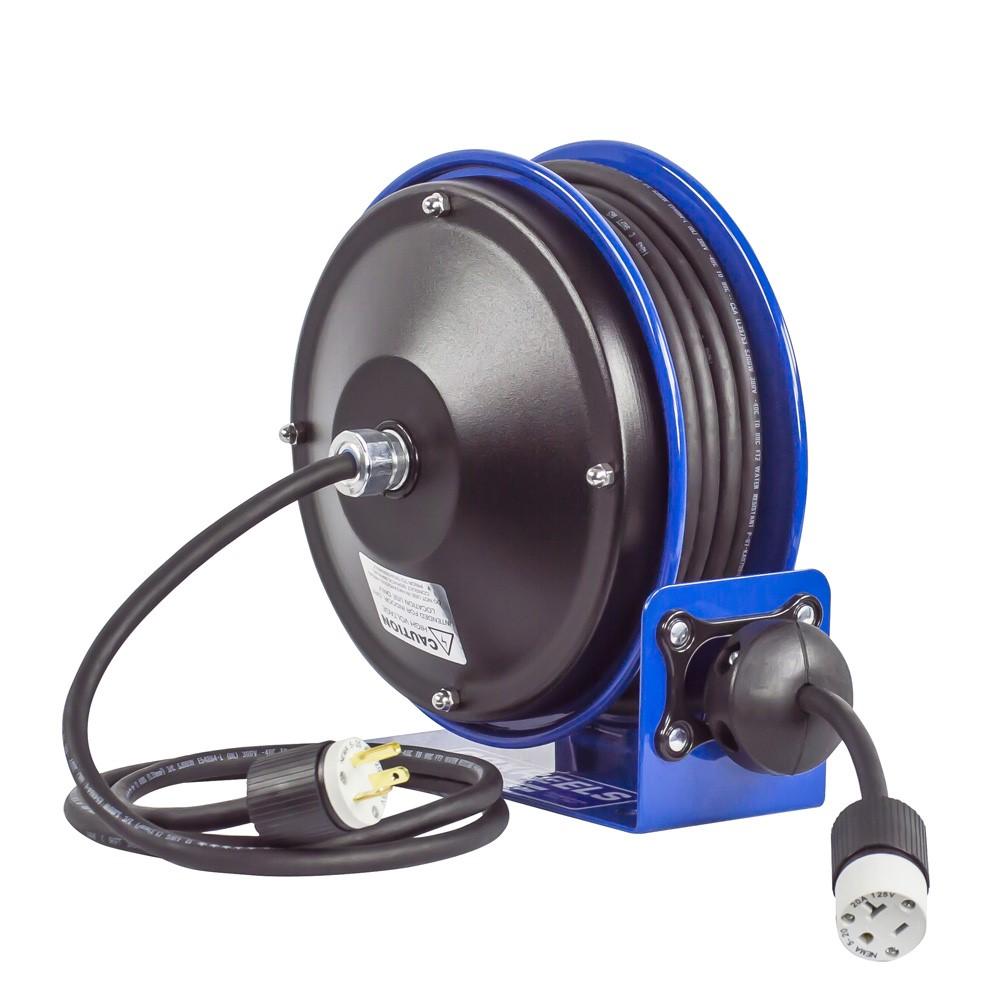

Coxreels PC10-3012-X Power Cord Reel 30 Ft Spring Drive

Product Description

The COXREELS PC10-3012-X is a compact, spring-driven power cord reel built for commercial and industrial environments where cord management space is at a premium. Part of the PC10 Series, this reel features a continuous-radius grommet-style cord guide that prevents pinching or snagging during operation, and a composite ratchet hub with self-lubricating bronze bearings that holds the cord securely at any extended length. The unit weighs 18 pounds and is constructed around a solid one-piece 12-gauge steel base and support post. Electricians and maintenance technicians install this reel where overhead or wall-mounted cord management is required in tight quarters.

The PC10-3012-X is suited for commercial and light industrial applications including workshops, service bays, manufacturing floors, and utility areas where a 30-foot power cord reach is needed with automatic spring-driven retraction. The spring drive mechanism returns the cord without manual rewinding, reducing wear and keeping work areas clear. The reel ships as a single unit and is appropriate for both permanent wall or ceiling mounting and portable cart-mounted configurations.

Key Features

• Spring-driven retraction automatically retrieves up to 30 feet of power cord
• Continuous-radius composite grommet guide prevents cord pinching or catching during extension and retraction
• Composite ratchet hub with self-lubricating bronze bearings locks cord at desired length
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength and operator safety
• Solid one-piece 12-gauge steel base and support post for maximum mounting stability
• External component cover allows slip-ring maintenance without removing the reel from its mount
• Chip-resistant, rust-inhibiting powder coat finish with adjustable solid rubber cord stop and 5-foot lead cable with grounding plug

Compatibility

Designed as an OEM-style replacement and direct-fit cord reel for commercial and industrial power cord management systems requiring a spring-driven, 30-foot capacity steel reel.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with applicable NEC requirements for cord and cable management. Power down the circuit before connecting the lead cable and grounding plug to the supply source. Mount the reel to a structurally adequate wall, ceiling, or post using hardware rated for the combined weight of the unit and fully loaded cord. Do not exceed the cord capacity or voltage rating specified for the installed power cord.

Technical Specifications

• Cord Capacity: 30 feet
• Drive Type: Spring Drive
• Base Material: 12-gauge Steel
• Length: 16.5 inches
• Width: 12.5 inches
• Height: 13.5 inches
• Weight: 18 pounds
• UPC: 674255924468

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC10-3012-X
