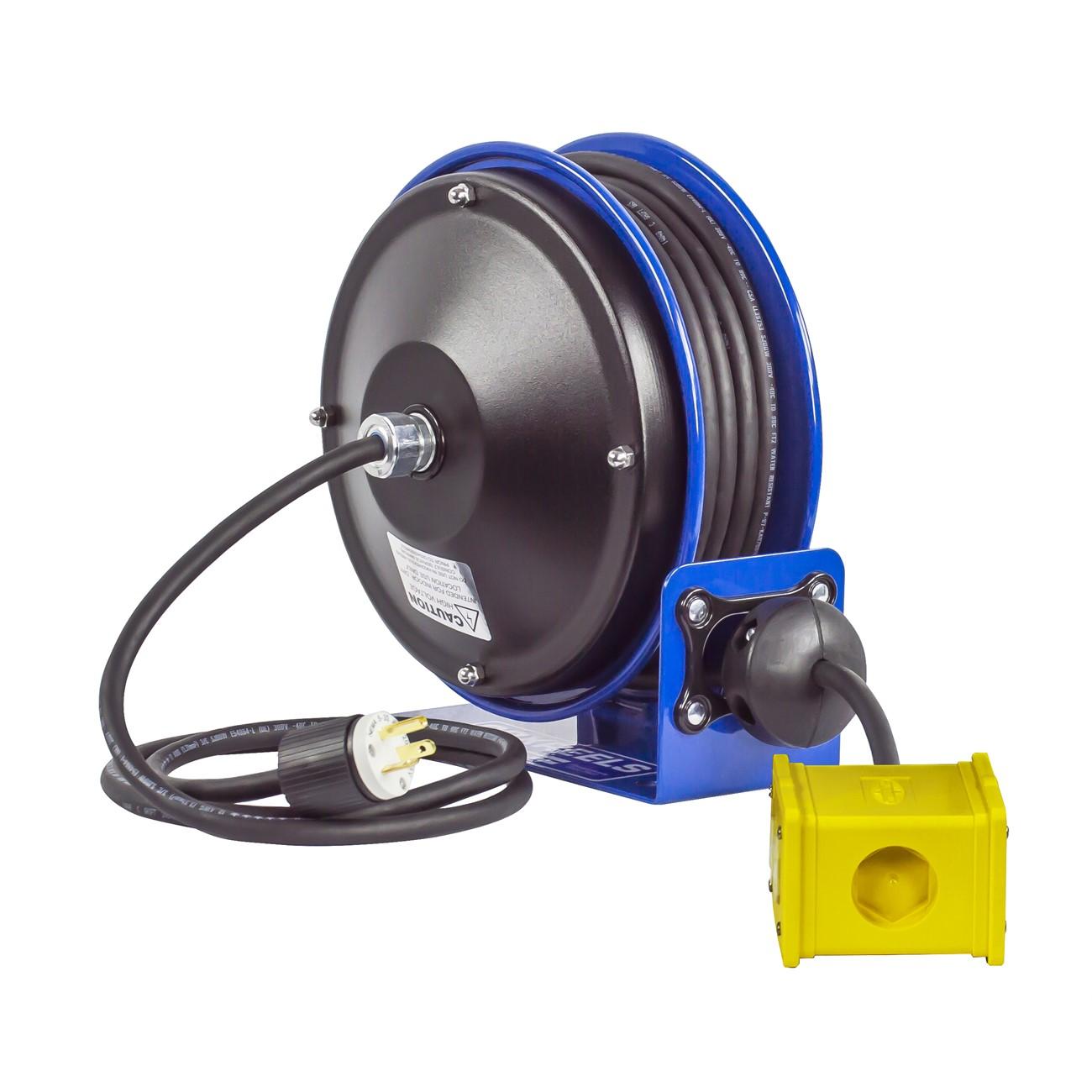

Coxreels PC10-3012-B Power Cord Reel 30 Ft Spring Drive

Product Description

The COXREELS PC10-3012-B is a compact, spring-driven power cord reel built for commercial and industrial environments where space is limited. The reel holds 30 feet of cord and retracts automatically using a spring drive mechanism. The frame and base are constructed from 12-gauge steel with a powder coat finish for chip and rust resistance. A CNC-spun, ribbed disc design with rolled edges adds structural strength while protecting the cord during repeated use. This reel is installed by electricians and maintenance technicians in shops, warehouses, and service bays.

The PC10-3012-B fits commercial and industrial settings where reliable cord management is needed at a fixed station. The compact footprint makes it suitable for overhead mounting or wall mounting in tight spaces. The reel ships as a single unit and is appropriate for facilities requiring durable, repeatable cord extension and retraction without manual coiling. It includes a 5-foot lead cable, grounding plug, and a quad industrial receptacle for immediate use after installation.

Key Features

• Spring drive mechanism provides automatic cord retraction without manual effort
• 12-gauge one-piece steel base and support post for maximum stability and minimal flex
• CNC robotically spun and ribbed discs with rolled edges protect the cord and improve operator safety
• External, heavy-gauge powder-coated steel component cover allows slip ring maintenance without removing the reel from its mount
• Continuous radius composite grommet design prevents cord pinching or snagging during operation
• Quad industrial receptacle, adjustable solid rubber cord stop, and 5-foot lead cable with grounding plug included

Compatibility

Designed as an OEM-style replacement or direct-install cord reel for commercial and industrial power cord management applications.

Installation Notes

Installation is typically performed by a licensed electrician or qualified maintenance technician. Disconnect and lock out all power sources before mounting or servicing the reel. The unit can be wall- or overhead-mounted; confirm the mounting surface can support the loaded weight of the reel and cord. Follow applicable NEC requirements for cord reel installations in commercial and industrial environments.

Technical Specifications

• Cord Length: 30 feet
• Drive Type: Spring Drive
• Frame Material: Steel
• Base Gauge: 12GA
• Length: 16.5 inches
• Width: 12.5 inches
• Height: 13.5 inches
• Weight: 18 pounds
• UPC: 674255924444

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC10-3012-B
