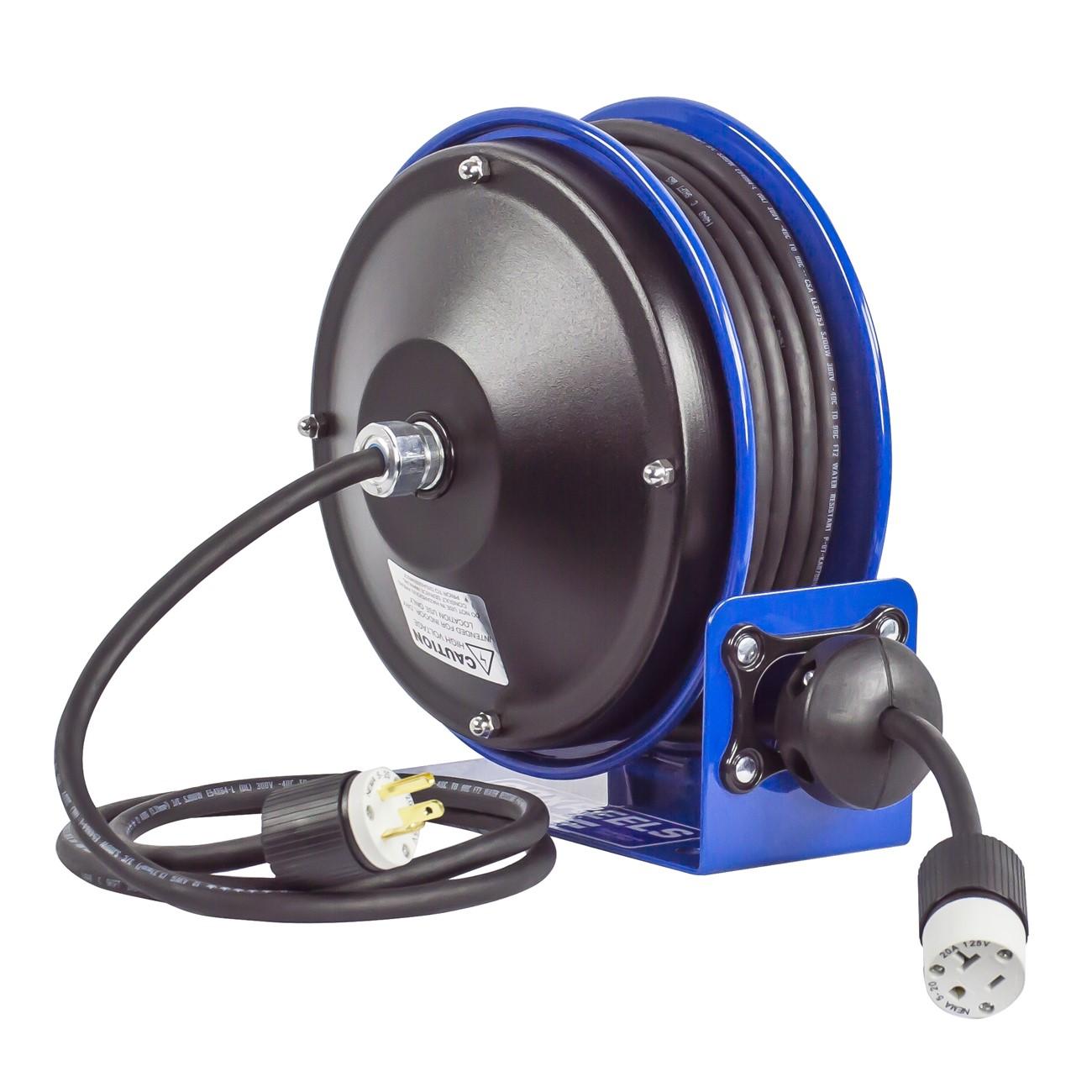

Coxreels PC10-3012-A Power Cord Reel 30 Ft Spring Drive

Product Description

The COXREELS PC10-3012-A is a spring-driven power cord reel from the PC10 Series, designed for commercial and industrial environments where cord management space is limited. The reel stores up to 30 feet of power cord and returns it automatically via a spring drive mechanism. The frame and base are constructed from 12-gauge steel with a powder coat finish for corrosion resistance. A composite ratchet hub with self-lubricating bronze bearings holds the cord at any desired extension length. This reel is installed by electricians and maintenance professionals in shops, warehouses, and service bays.

The PC10-3012-A fits commercial and industrial applications that require compact, overhead, or wall-mounted cord management. Its spring-driven retraction suits high-cycle environments such as automotive service facilities, manufacturing floors, and utility areas. The unit ships as a complete assembly including a 5-foot lead cable with grounding plug and a single industrial receptacle, making it ready for direct integration into a fixed electrical circuit.

Key Features

• Spring drive auto-retraction stores 30 feet of power cord
• 12-gauge one-piece steel base and support post for structural stability
• Composite ratchet hub with self-lubricating bronze bearings locks cord at desired length
• Continuous-radius composite grommet prevents cord pinching during pay-out and retraction
• Heavy-gauge powder-coated steel component cover allows slip ring maintenance without removing the reel from its mount
• Includes 5-foot lead cable, grounding plug, adjustable rubber cord stop, and single industrial receptacle

Compatibility

Designed as an OEM-style replacement or direct-install cord reel for commercial and industrial fixed electrical cord management systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. Disconnect and lock out power to the circuit before wiring the lead cable to the supply. The mounting surface must support the static and dynamic load of the reel, cord, and any connected equipment. Do not exceed the cord or receptacle ratings during operation.

Technical Specifications

• Cord Capacity: 30 feet
• Drive Type: Spring Drive
• Base Material: 12-gauge steel
• Finish: Powder coat
• Length: 16.5 inches
• Width: 12.5 inches
• Height: 13.5 inches
• Weight: 17 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC10-3012-A
