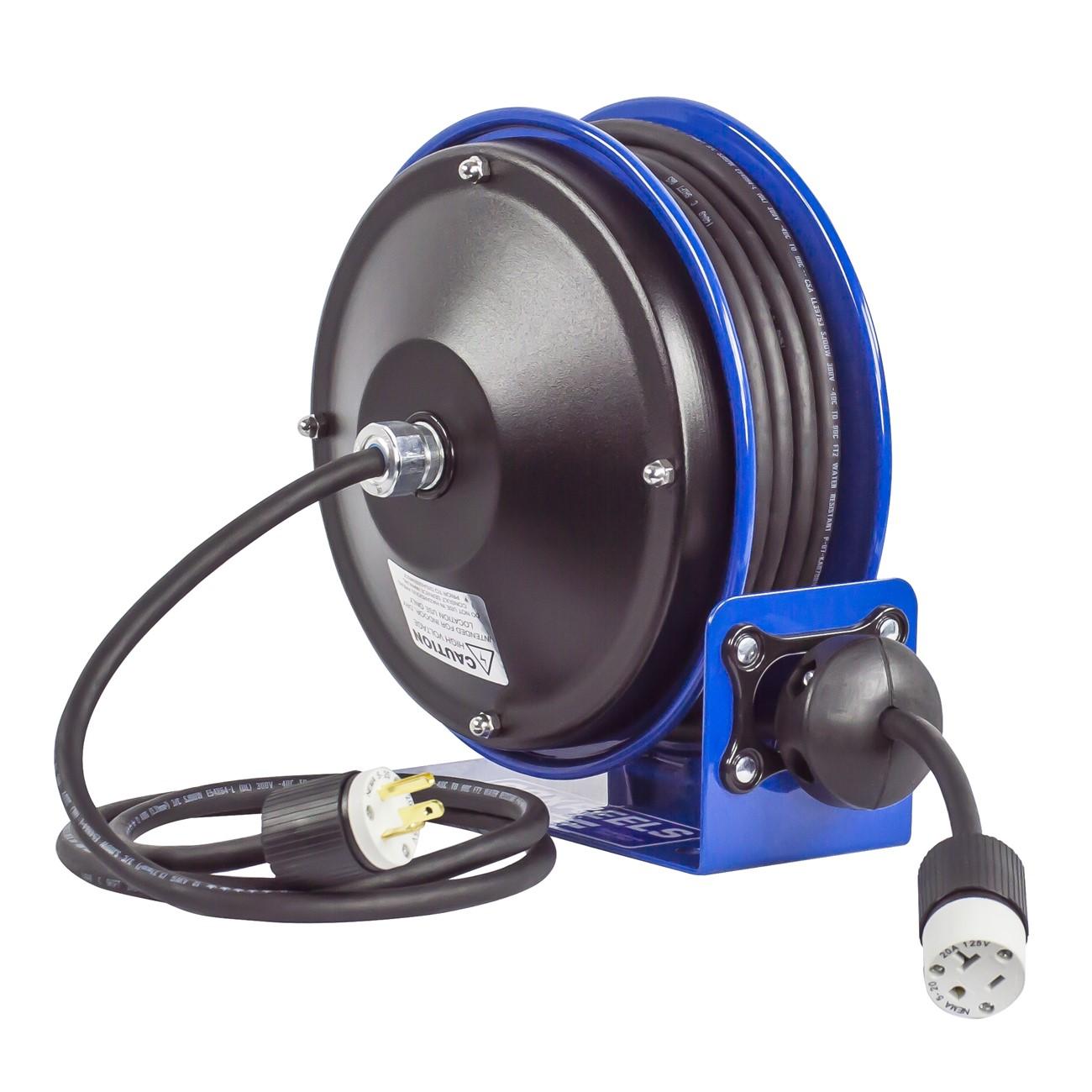

Coxreels PC10-2512-4 Power Cord Reel 25 Ft Spring Drive

Product Description

The COXREELS PC10-2512-4 is a compact, spring-driven power cord reel built for commercial and industrial applications where space is limited. It manages up to 25 feet of power cord and returns it automatically via spring drive, keeping work areas clear and reducing trip hazards. The reel is constructed with a 12-gauge steel base and support post, CNC-spun ribbed steel discs with rolled edges, and a powder-coated finish for chip and rust resistance. A composite ratchet hub with self-lubricating bronze bearings holds the cord at any desired extension length. Electricians and maintenance technicians are the primary installers of this unit.

This cord reel suits commercial and industrial facilities where cord management in tight spaces is a priority. It performs in environments that demand durability under temperature extremes and exposure to chemicals. The continuous-radius grommet-style cord guide prevents pinching or snagging during extension and retraction. The external component cover allows access to the slip ring for routine maintenance without removing the reel from its mounting point, making it practical for fixed installations in shops, warehouses, and service bays.

Key Features

• Spring drive automatically retracts up to 25 feet of power cord
• 12-gauge one-piece steel base and support post for structural rigidity
• CNC robotically spun and ribbed steel discs with rolled edges for strength and operator safety
• Composite ratchet hub with self-lubricating bronze bearings locks cord at desired length
• Continuous-radius composite grommet cord guide eliminates pinch points during operation
• External component cover allows slip ring maintenance without dismounting the reel
• Powder-coated finish provides long-term chip, rust, and chemical resistance

Compatibility

Designed as an OEM-style replacement or direct installation unit for commercial and industrial cord management systems requiring a compact spring-driven reel with a 25-foot capacity.

Installation Notes

Installation is typically performed by a licensed electrician. Disconnect and lock out all power sources before servicing or mounting the reel. Secure the unit to a structurally sound surface using the steel base mounting points. Follow applicable NEC requirements for cord reel installations, including proper cord gauge and ampacity ratings for the intended load.

Technical Specifications

• Cord Capacity: 25 feet
• Drive Type: Spring drive
• Base Material: 12-gauge steel
• Disc Construction: CNC-spun ribbed steel with rolled edges
• Finish: Powder coat
• Length: 16.5 inches
• Width: 12.5 inches
• Height: 13.5 inches
• Weight: 17 pounds
• UPC: 674255924420

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: PC10-2512-4
