Coxreels P-WTL-125 Welding Hose Reel 1/4 in 25 Ft Spring

Product Description

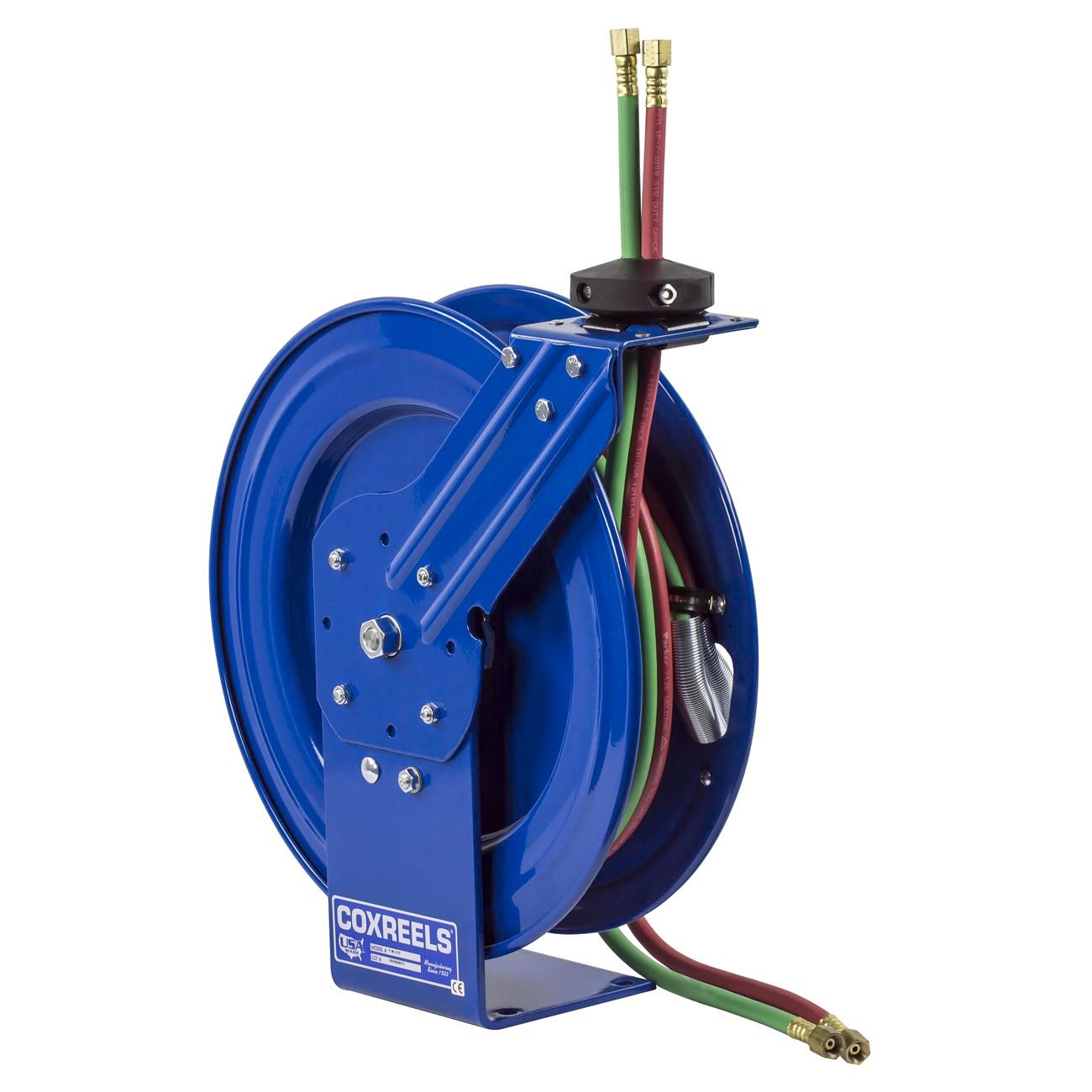

The COXREELS P-WTL-125 is a spring-driven welding hose reel designed to manage twin-line welding hose in demanding shop and field environments. Built on the compact P-W Series chassis, it accepts 1/4-inch ID hose up to 25 feet and returns hose automatically via a cartridge-style spring motor. The reel features a steel single-pedestal base, CNC-spun ribbed discs with rolled edges, and an external dual-ported brass swivel with Viton seals. Licensed welding equipment technicians and pipe trades professionals are the typical installers. The unit weighs 39 pounds and measures 18 inches long by 9.5 inches wide by 19.75 inches tall.

The P-WTL-125 is suited for use in welding shops, fabrication facilities, and service vehicles where organized twin-line hose management reduces trip hazards and hose wear. The multi-position guide arm allows mounting to walls, floors, ceilings, or vehicle surfaces. The compact P-W Series footprint makes it practical in tighter bays where a larger SHW Series chassis would not fit. This reel is appropriate for residential and light commercial welding setups as well as industrial maintenance applications.

Key Features

• External 90-degree full-flow dual-ported brass swivel with Viton seals — both connections accessible from the same side without removing the reel from its mount
• Enclosed, lubricated cartridge-style spring motor is removable for maintenance without special tools
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Solid one-piece steel base and support post with no-weld construction for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish is chip-resistant and rust-inhibiting for long service life

Compatibility

Designed as an OEM-style spring-driven reel for 1/4-inch ID twin-line welding hose applications up to 25 feet in length.

Installation Notes

Installation is typically performed by a qualified welding equipment technician or licensed pipefitter. Shut off all gas supply valves and depressurize the hose assembly completely before mounting or connecting the reel. Verify that the mounting surface is rated for the combined weight of the reel and loaded hose. Consult applicable local codes and the IFGC for gas-supply connection requirements.

Technical Specifications

• Hose ID: 1/4 inch
• Hose Length: 25 feet
• Drive Type: Spring driven
• Swivel Material: Brass with Viton seals
• Base Material: Steel
• Length: 18 inches
• Width: 9.5 inches
• Height: 19.75 inches
• Weight: 39 pounds
• Sold As: Each
• UPC: 674255721630

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-WTL-125
