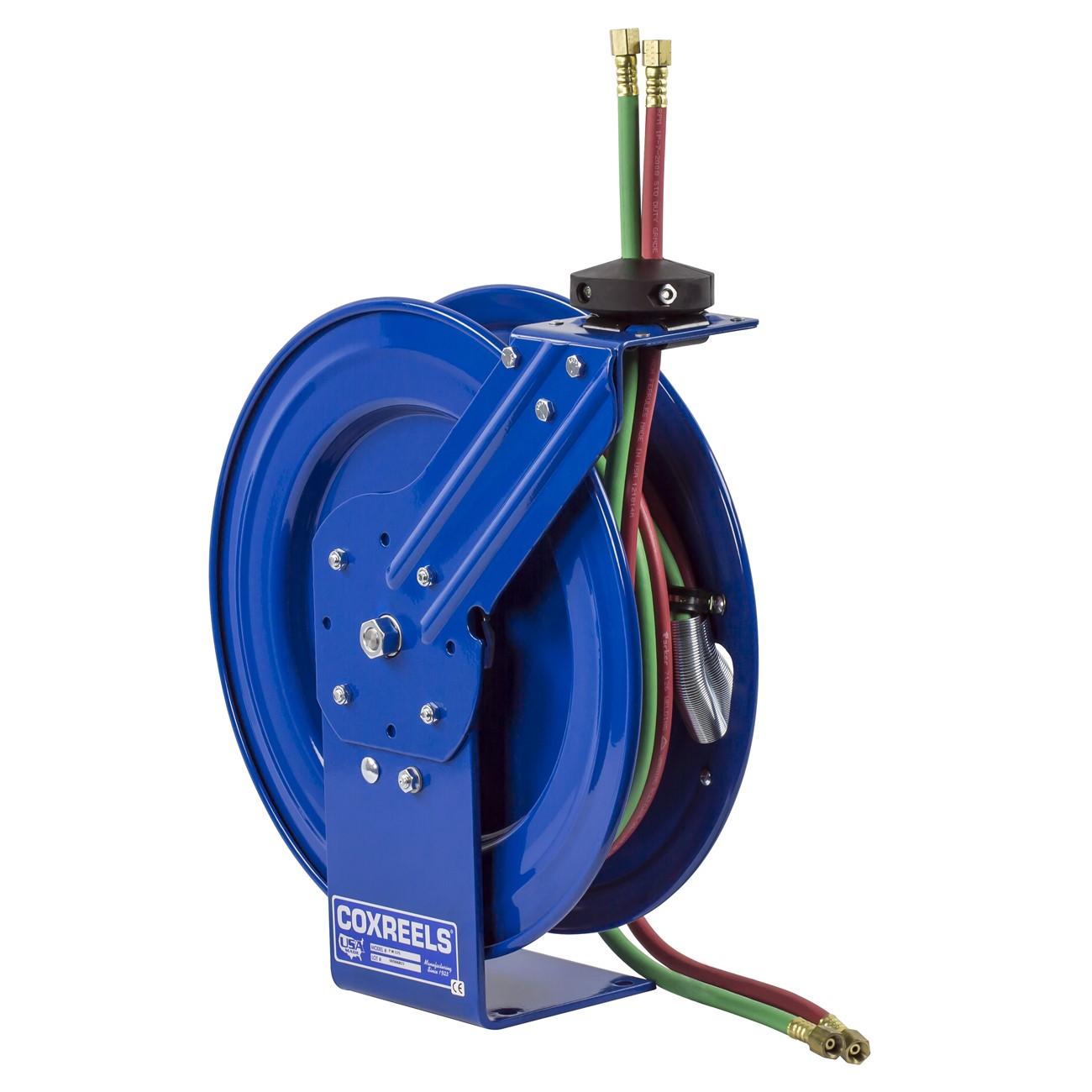

Coxreels P-WL-140 Welding Hose Reel 1/4 in 40 Ft Spring

Product Description

The COXREELS P-WL-140 is a spring-driven welding hose reel designed to manage twin-line welding hose in demanding shop and field environments. Built on the compact P-W Series chassis, it accepts 1/4-inch ID hose up to 40 feet and retracts automatically via a cartridge-style spring motor. The external 90-degree full-flow dual-ported brass swivel with Viton seals keeps both gas connections accessible from the same side of the reel, eliminating the need to dismount the unit for hose changes or system service. Licensed welding and industrial gas technicians are the primary installers.

The P-WL-140 fits residential shop, light commercial, and industrial welding stations where twin-line hose management is required. Its multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it suitable for fixed welding bays, mobile service rigs, and overhead track installations. The single-pedestal steel base provides a stable footprint on any of these mounting surfaces without requiring custom fabrication.

Key Features

• External 90-degree dual-ported brass swivel with Viton seals — both hose connections accessible from one side, no dismounting required
• Enclosed cartridge-style spring motor is removable for maintenance without full reel disassembly
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Solid one-piece steel base and support post — no-weld single pedestal design for maximum stability
• Multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting orientations
• CPC powder coat finish resists chips and rust for long-term durability in harsh environments
• Permanently lubricated precision bearings require no scheduled relubrication

Compatibility

Designed as an OEM-style spring-driven reel for twin-line welding hose with 1/4-inch ID connections, consistent with standard acetylene and inert-gas welding hose assemblies.

Installation Notes

Installation should be performed by a qualified technician familiar with welding gas distribution systems and applicable local codes. Shut off all gas supply and bleed line pressure before mounting or connecting hose. Verify that mounting surface load rating exceeds the reel weight plus hose and gas load. Confirm swivel port thread compatibility with existing hose fittings before final assembly.

Technical Specifications

• Hose Inside Diameter: 1/4 inch
• Maximum Hose Length: 40 feet
• Drive Type: Spring driven
• Swivel Type: External 90-degree dual-ported brass with Viton seals
• Disc Construction: CNC spun ribbed steel with rolled edges
• Base Material: Steel
• Finish: CPC powder coat
• Length: 18 inches
• Width: 9.5 inches
• Height: 19.75 inches
• Weight: 42 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-WL-140
