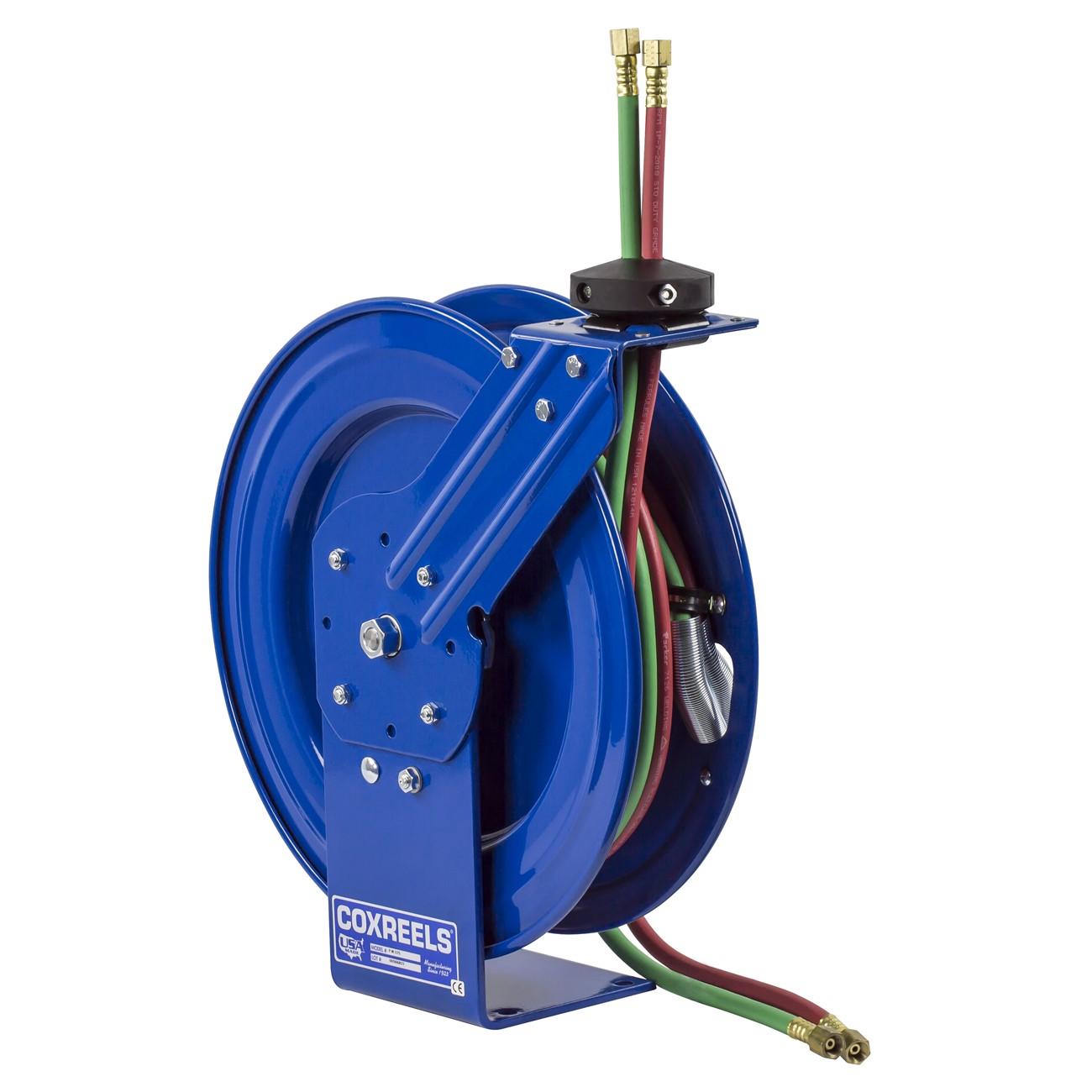

Coxreels P-WL-125 Welding Hose Reel 1/4 in 25 Ft Spring

Product Description

The COXREELS P-WL-125 is a spring-driven welding hose reel built for managing twin-line welding hose in demanding shop and field environments. It accepts 1/4-inch ID hose up to 25 feet and uses a cartridge-style retracting motor to keep hose under consistent tension during use. The reel is constructed with a heavy-duty steel base and CNC robotically spun ribbed discs with rolled edges, delivering structural durability and hose protection. A CPC powder coat finish resists chips and rust for long service life. This reel is installed by welding professionals and pipe fitters who need organized, reliable hose management at a fixed workstation or mobile service vehicle.

The P-WL-125 is suited for light-duty welding hose management in residential and commercial shop settings. Its compact P-W Series chassis fits tighter spaces compared to the larger SHW Series. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations, making it adaptable to a range of install locations. It is a practical choice for MIG, TIG, and oxy-fuel setups where twin-line hose organization reduces trip hazards and hose wear.

Key Features

• External 90-degree full-flow dual-ported brass swivel with Viton seals — both connections accessible from the same side of the reel without dismounting
• Cartridge-style spring motor is lubricated, enclosed, and removable for maintenance without disassembling the reel
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Single-pedestal steel base with one-piece support post — no welds at the base joint for maximum structural integrity
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish resists chipping and rust for extended service life
• Permanently lubricated precision bearings require no scheduled relubrication

Compatibility

Designed as an OEM-style spring-driven welding hose reel for use with 1/4-inch ID twin-line welding hose up to 25 feet in length. Part of the COXREELS P-W Series compact welding reel line.

Installation Notes

Installation is typically performed by a qualified welding equipment technician or mechanical contractor. Before mounting or servicing the reel, shut off all gas supply valves and bleed the hose of residual pressure. Mounting hardware selection should comply with the load requirements of the chosen surface — wall, floor, ceiling, or vehicle — using appropriate fasteners for the substrate. The multi-position guide arm must be locked into position before returning the reel to service.

Technical Specifications

• Hose ID: 1/4 inch
• Hose Length Capacity: 25 feet
• Drive Type: Spring driven
• Swivel Type: External 90-degree dual-ported brass with Viton seals
• Base Material: Steel
• Length: 18 inches
• Width: 9.5 inches
• Height: 19.75 inches
• Weight: 39 pounds
• UPC: 674255721609

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-WL-125
