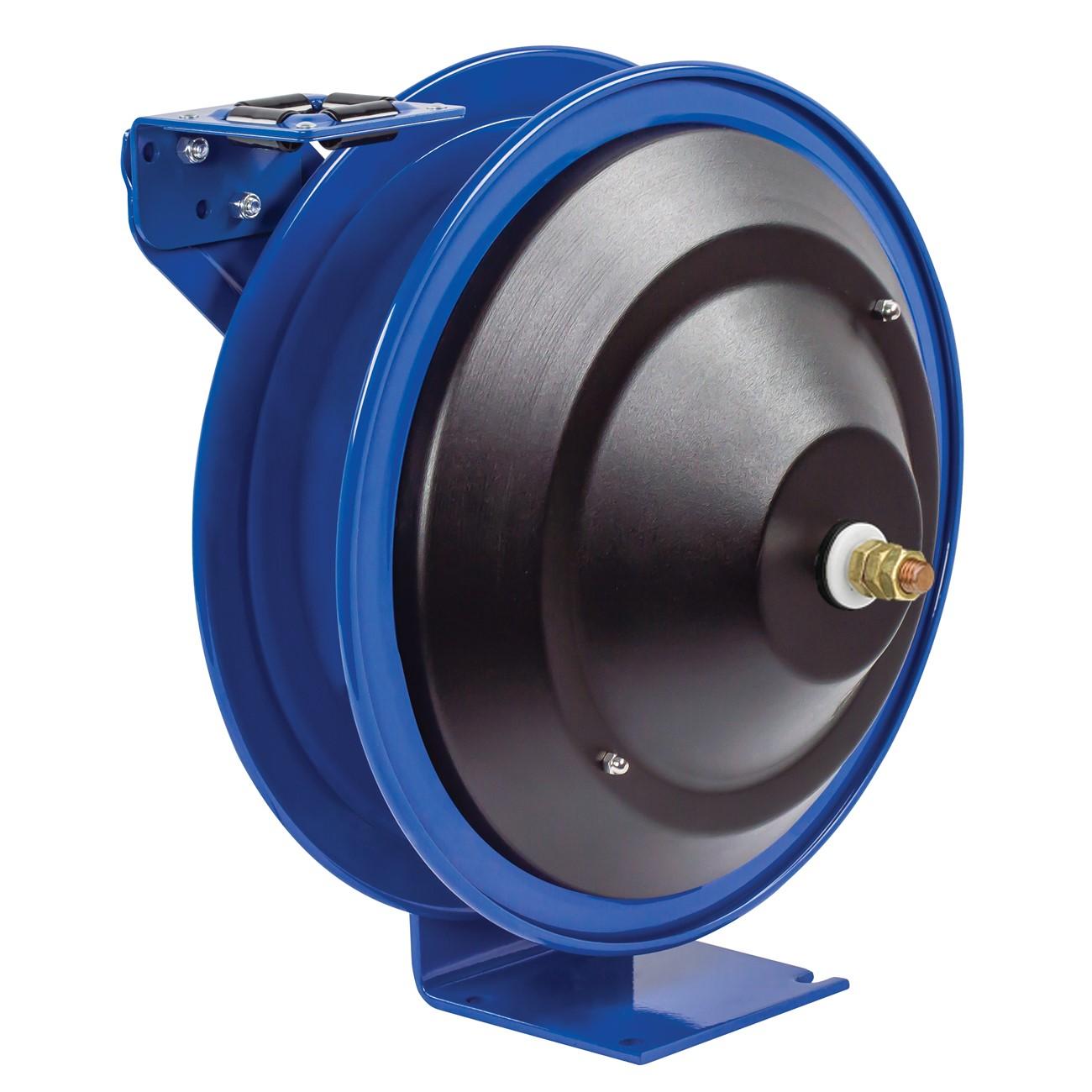

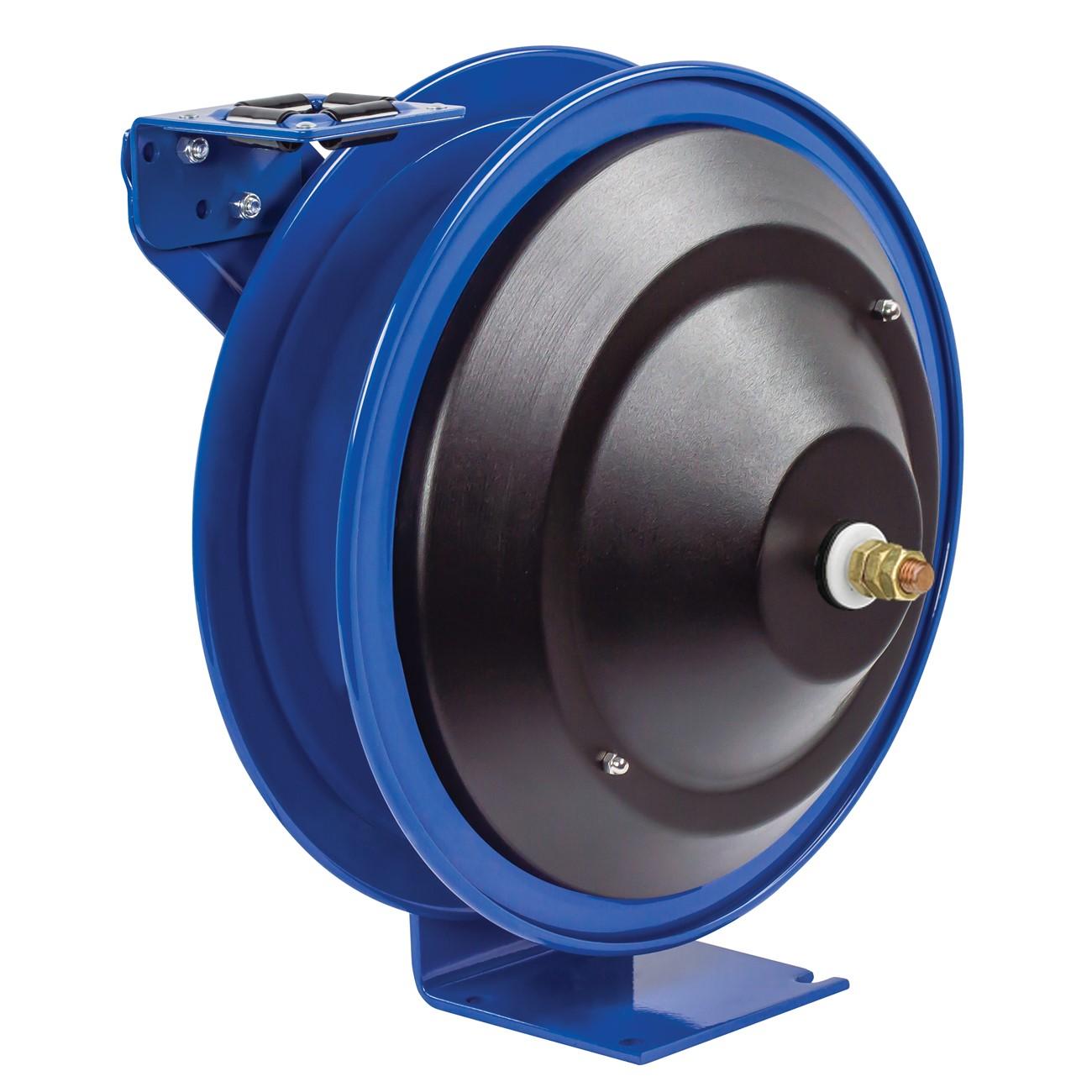

Coxreels P-WC17L-5020 Welding Cable Reel 50 Ft

Product Description

The COXREELS P-WC17L-5020 is a spring-driven welding cable reel built for professional welding environments where cable management directly affects job-site safety and productivity. It stores up to 50 feet of welding cable on a self-retracting drum, keeping cable off the floor and returning it automatically after each use. The reel is constructed with heavy-gauge CNC robotically spun steel discs and a solid one-piece steel base and support post. A powder-coated finish resists chips and rust for long service life in shop and field conditions. Licensed welders and fabrication shop technicians are the primary installers and end users.

The P-WC17L-5020 fits industrial and commercial welding applications where 50 feet of cable reach is required. Its multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it a practical fit for fixed welding stations, mobile service rigs, and fabrication facilities. The single-pedestal base design keeps the footprint compact without sacrificing stability. This reel is well-suited for MIG, stick, and similar cable-dependent welding setups where a retractable storage solution reduces tripping hazards and cable wear.

Key Features

• Spring-driven self-retracting mechanism stores 50 feet of welding cable automatically
• External component cover in heavy-gauge powder-coated steel allows slip-ring maintenance without removing the reel from its mount
• Enclosed cartridge-style motor is lubricated and removable for routine service
• CNC robotically spun and ribbed steel discs with rolled edges for strength and cable protection
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations
• Solid one-piece steel base and support post with no-weld construction for maximum stability

Compatibility

Designed as an OEM-style retractable reel for 50-foot welding cable applications in industrial, commercial, and mobile welding setups requiring a spring-driven cable management solution.

Installation Notes

Installation is typically performed by a qualified electrician or experienced welding equipment technician. Disconnect all power and de-energize the welding circuit before mounting or servicing the reel. Secure the base to a structurally sound surface using appropriately rated fasteners for the chosen mounting orientation. Consult NEC guidelines for welding cable sizing and circuit protection requirements before connecting the cable leads.

Technical Specifications

• Cable Capacity: 50 feet
• Drive Type: Spring driven
• Material: Steel
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Base Thickness: 0.25 inches steel base plate
• Weight: 42 pounds
• UPC: 674255922082

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-WC17L-5020
