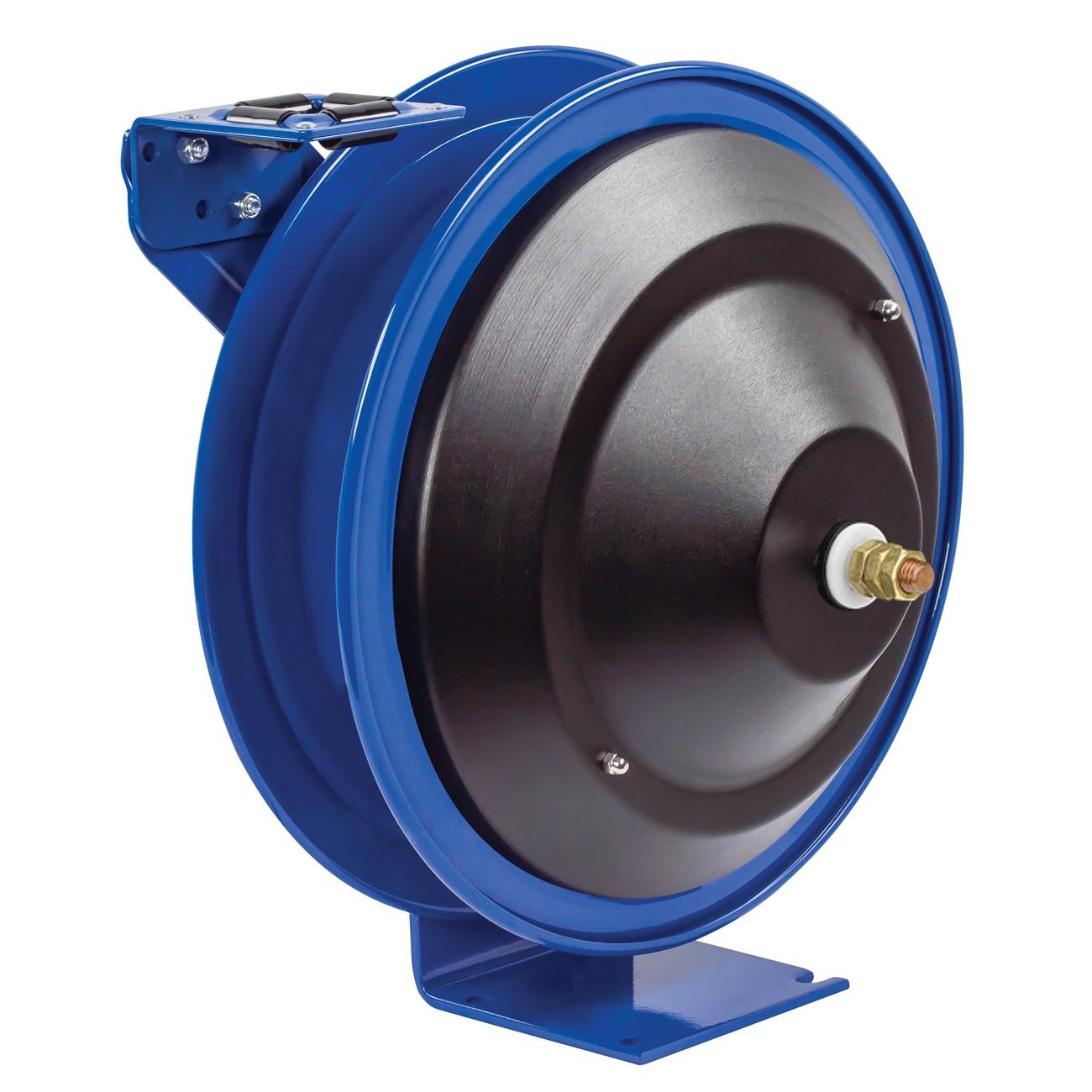

Coxreels P-WC17L-5001 Welding Cable Reel 50 Ft

Product Description

The COXREELS P-WC17L-5001 is a spring-driven welding cable reel built for industrial and fabrication environments where cable management directly affects worksite safety and productivity. Part of the P-WC Series, this reel stores up to 50 feet of welding cable on a self-retracting mechanism that automatically retrieves cable when released. The steel construction uses CNC robotically spun and ribbed discs with rolled edges for durability and operator safety. An external component cover and enclosed cartridge-style motor simplify routine maintenance without requiring the reel to be dismounted. Licensed welders, fabricators, and maintenance electricians are the primary installers.

This reel is suited for fixed and mobile welding stations in residential shops, commercial fabrication facilities, and fleet vehicles. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it adaptable across install scenarios. The single-pedestal, one-piece steel base with support post provides a stable footprint without added bulk. The self-retracting spring drive keeps cable off the floor, reducing trip hazards and cable wear in high-traffic work areas.

Key Features

• 50-foot self-retracting spring drive for automatic cable retrieval
• CNC robotically spun ribbed steel discs with rolled edges for strength and cable protection
• External component cover allows slip ring maintenance without removing reel from mount
• Enclosed cartridge-style motor is removable for safe, convenient servicing
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish rated for chip resistance and rust inhibition with permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement and standard fitment unit for welding cable management applications requiring a 50-foot spring-driven steel cable reel.

Installation Notes

Installation is typically performed by a licensed welder or qualified maintenance electrician. Disconnect and de-energize all associated welding equipment before mounting or servicing the reel. Secure the one-piece steel base to a structurally adequate surface using hardware rated for the load. Verify guide arm orientation matches the intended mounting position before final fastening.

Technical Specifications

• Cable Capacity: 50 ft
• Drive Type: Spring Drive
• Material: Steel
• Weight: 42 pounds
• UPC: 674255922051

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-WC17L-5001
