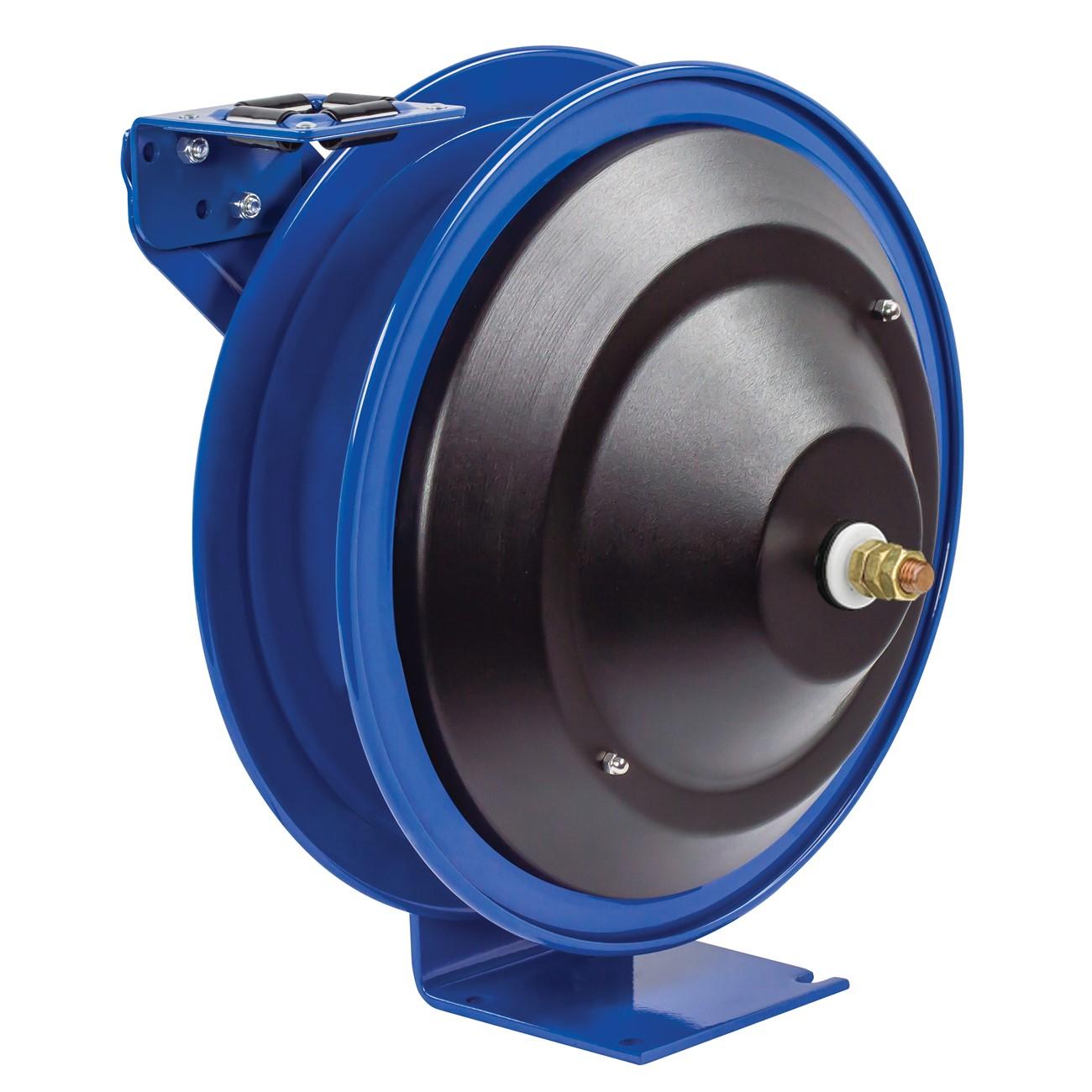

Coxreels P-WC17L-3520 Welding Cable Reel 35 Ft Spring Drive

Product Description

The COXREELS P-WC17L-3520 is a spring-driven welding cable reel built for shops, fabrication floors, and field service operations where cable management directly affects workflow and safety. Part of the P-WC Series, it holds 35 feet of welding cable on a self-retracting drum machined from heavy-gauge steel. The spring-drive retraction keeps cable off the floor and under controlled tension, reducing trip hazards and preventing insulation wear from dragging. At 42 pounds, the reel is substantial enough for fixed mounting yet sized for single-technician installation. It is installed by welding professionals and maintenance trades in both production and service environments.

The P-WC17L-3520 is suited for fixed mounting in residential garages, commercial fabrication shops, and industrial maintenance bays. The multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations, making it adaptable to stationary welding stations or service vehicle upfitting. The 35-foot cable capacity covers most bench and floor welding layouts without excess slack. This reel is a direct fit for applications requiring a self-retracting welding cable storage solution where a 35-foot length is specified.

Key Features

• Spring-driven self-retracting mechanism returns cable automatically, keeping the work area clear
• External component cover in heavy-gauge powder-coated steel allows slip ring maintenance without removing the reel from its mount
• Enclosed, lubricated cartridge-style motor is removable for safe field maintenance
• CNC robotically spun and ribbed steel discs with rolled edges for cable protection and operator safety
• Single-pedestal steel base with one-piece support post and no-weld construction for stability without excessive weight
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• Chip-resistant, rust-inhibiting CPC powder coat finish with permanently lubricated precision bearings

Compatibility

Designed as an OEM-style spring-driven welding cable reel replacement or new installation for applications requiring a 35-foot self-retracting steel cable reel in the P-WC Series configuration.

Installation Notes

Installation is typically performed by a welding professional or qualified maintenance technician. Before mounting or servicing, disconnect the welding power source and relieve any spring tension per standard safe-handling procedure for spring-driven reels. The multi-position guide arm should be secured to a structurally sound mounting surface rated for the combined weight of the reel and cable load. Verify mounting hardware torque is appropriate for the substrate material and consult local codes where vehicle or overhead mounting is involved.

Technical Specifications

• Cable Capacity: 35 feet
• Drive Type: Spring drive, self-retracting
• Frame Material: Steel
• Weight: 42 pounds
• Finish: CPC powder coat
• Mounting Positions: Wall, floor, ceiling, vehicle
• UPC: 674255922044
• UOM: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-WC17L-3520
