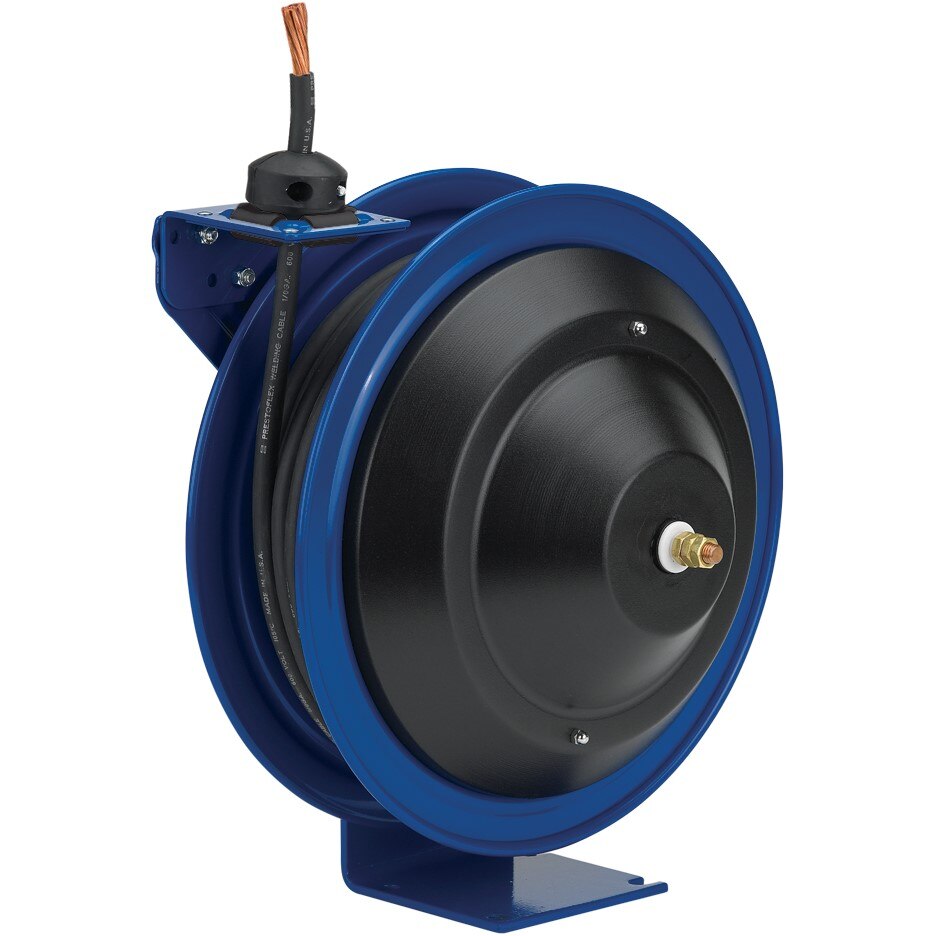

Coxreels P-WC17-5002 Welding Cable Reel 50 Ft

Product Description

The COXREELS P-WC17-5002 is a spring-driven welding cable reel built for trade and industrial environments where cable management directly affects job-site safety and efficiency. The unit stores up to 50 feet of welding cable on a self-retracting spool, keeping cable off the floor and extending its service life by preventing kinking, abrasion, and tangles. The heavy-gauge steel construction and CPC powder coat finish resist chips and rust under demanding conditions. This reel weighs 56 pounds and is sold as a single unit. It is typically installed by welding professionals, maintenance technicians, and industrial electricians.

The P-WC17-5002 is suited for fixed welding stations, fabrication shops, maintenance bays, and vehicle-mounted service rigs. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it adaptable to a wide range of facility layouts. The spring-retract mechanism returns cable automatically after use, reducing trip hazards and keeping the work area organized. The single-pedestal, one-piece steel base provides stable support without a welded joint, keeping overall weight manageable while maintaining structural integrity.

Key Features

• Spring-driven self-retraction stores up to 50 ft of welding cable automatically after use
• External component cover in heavy-gauge CPC powder coated steel allows slip ring maintenance without removing the reel from its mount
• Enclosed, lubricated cartridge-style motor is removable for safe routine maintenance
• CNC robotically spun and ribbed steel discs with rolled edges for added strength and cable protection
• One-piece solid steel base with single pedestal design and no-weld construction for maximum stability
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations

Compatibility

Designed as an OEM-style spring-driven cable reel for use with standard welding cable configurations in fixed and vehicle-mounted industrial installations.

Installation Notes

Installation is typically performed by a qualified electrician or welding equipment technician. Disconnect and de-energize all power sources before mounting or servicing the reel. Secure the base to a structurally sound mounting surface rated for the reel weight and anticipated cable load. Consult applicable NEC requirements for cable ampacity and connection termination when integrating into a welding circuit.

Technical Specifications

• Cable Length: 50 ft
• Drive Type: Spring Drive
• Material: Steel
• Finish: CPC Powder Coat
• Weight: 56 pounds
• Sold As: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-WC17-5002
