Coxreels P-WC13-5006 Welding Cable Reel 50 Ft Spring

Product Description

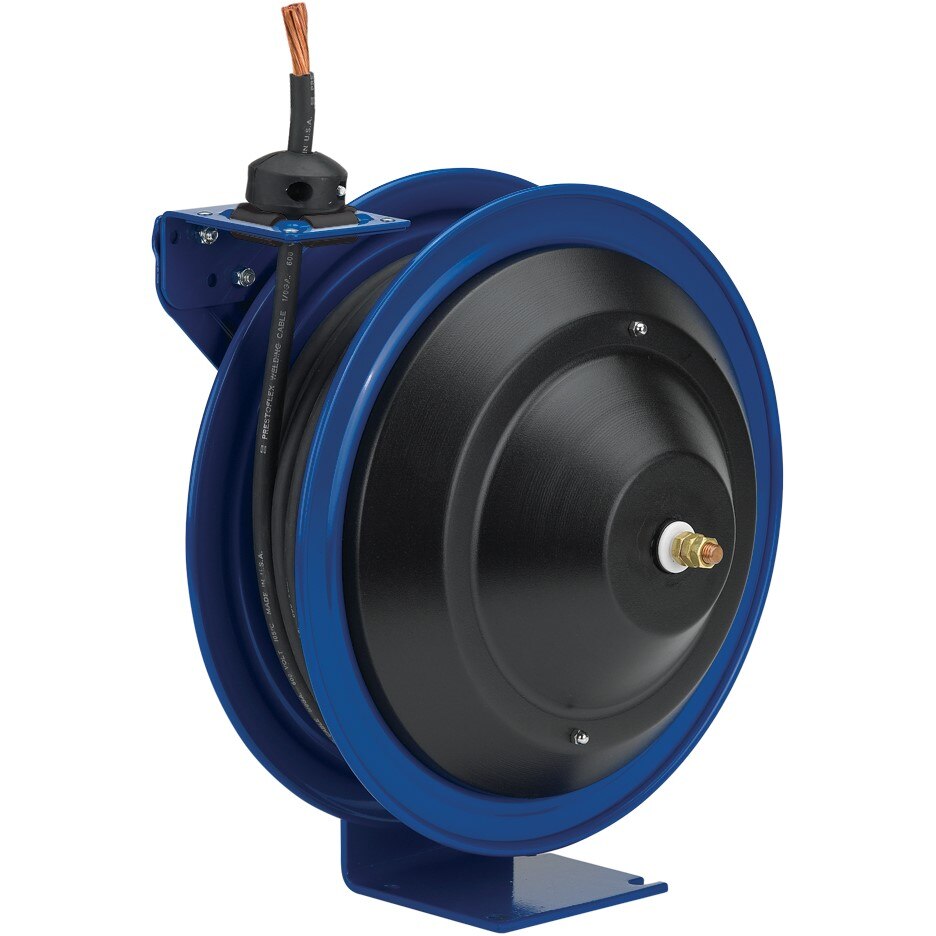

The COXREELS P-WC13-5006 is a spring-driven welding cable reel built for demanding trade and industrial environments. It stores up to 50 feet of welding cable on a self-retracting drum, keeping the work area organized and reducing cable wear and trip hazards. The reel is constructed with heavy-gauge CNC robotically spun and ribbed steel discs with rolled edges for strength and operator safety. A cartridge-style spring motor is lubricated and enclosed for reliable retraction and straightforward field maintenance. The reel weighs 35 pounds and is finished with a chip-resistant, rust-inhibiting CPC powder coat.

This welding cable reel is suited for welding shops, fabrication facilities, maintenance bays, and mobile service vehicles where cable management is a daily operational need. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, giving installers flexibility across a wide range of fixed and mobile applications. A solid one-piece steel base and single pedestal support post provide maximum stability without unnecessary weight. An adjustable solid rubber cable stop protects the cable end at full retraction.

Key Features

• 50-foot self-retracting spring drive stores and retrieves welding cable automatically
• External component cover allows slip ring maintenance without removing the reel from its mount
• Cartridge-style spring motor is removable for safe, convenient servicing
• CNC robotically spun ribbed steel discs with rolled edges for durability and operator safety
• Solid one-piece steel base and pedestal post with no welds for maximum structural stability
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish resists chips, rust, and general shop wear

Compatibility

Designed as an OEM-style replacement or direct-fit welding cable reel for fixed and mobile industrial welding setups requiring a 50-foot spring-driven cable management solution.

Installation Notes

Installation is typically performed by a qualified electrician or welding equipment technician. Disconnect and de-energize all power to the welding circuit before mounting or connecting the reel. The multi-position guide arm should be secured to a structural surface rated for the combined weight of the reel and cable load. Verify cable clamp connections are tight and the rubber cable stop is properly adjusted before returning the system to service.

Technical Specifications

• Cable Length: 50 feet
• Drive Type: Spring Drive
• Material: Steel
• Weight: 35 pounds
• Finish: CPC Powder Coat
• UPC: 674255921863

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-WC13-5006
