Coxreels P-W-135 Welding Hose Reel 1/4 in 35 Ft Spring

Product Description

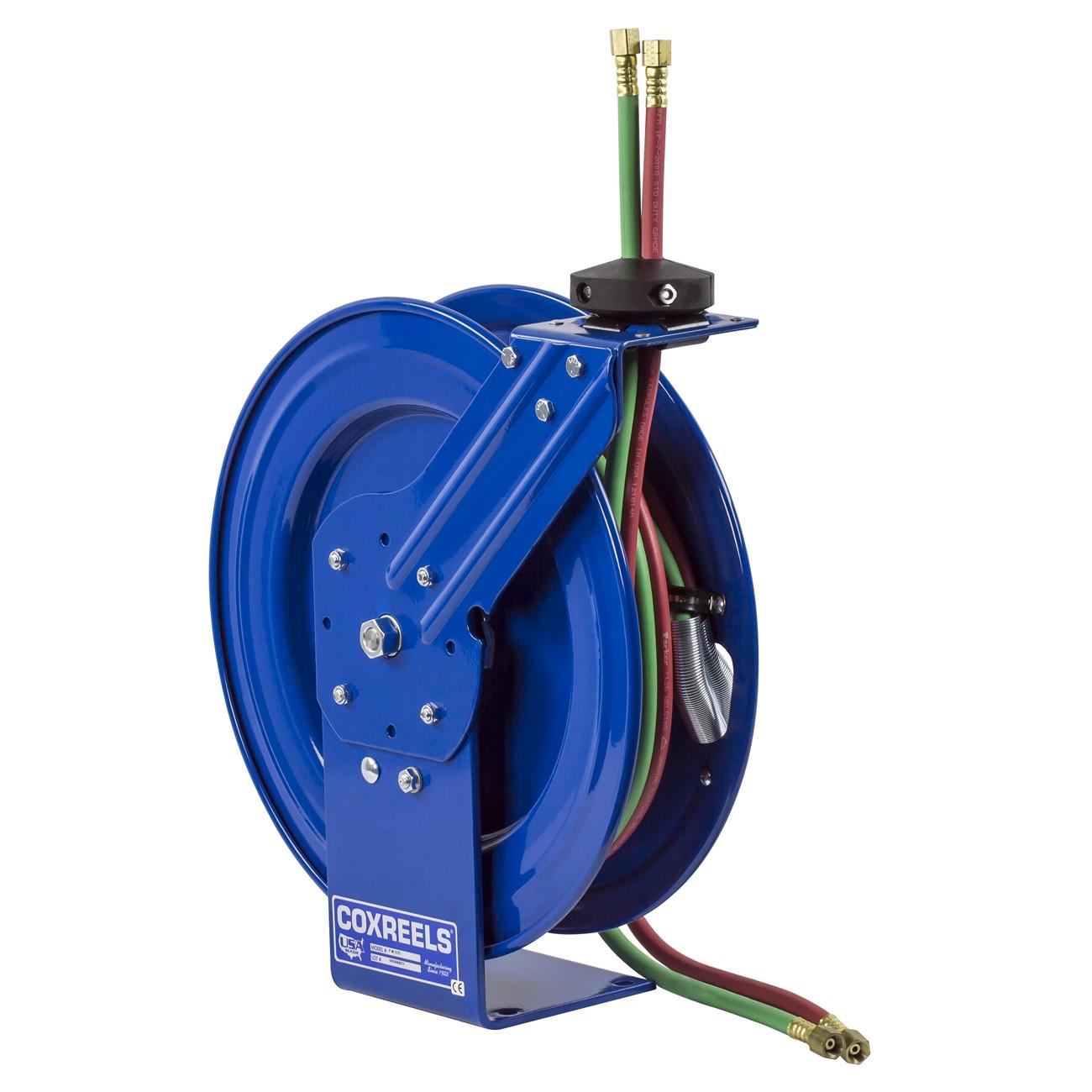

The COXREELS P-W-135 is a spring-driven welding hose reel designed to manage twin-line oxy-acetylene welding hose in demanding shop and field environments. Built on a compact steel chassis, the reel handles 1/4-inch ID hose up to 35 feet and retracts automatically via an enclosed cartridge-style spring motor. The external brass swivel is dual-ported with Viton seals, routing both hose connections from the same side of the reel so the unit never needs to be dismounted for access. Licensed welding professionals and industrial maintenance technicians are the primary installers of this unit.

The P-W-135 is suited for fixed or mobile welding stations in residential shops, commercial fabrication facilities, and service vehicles. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations. CNC robotically spun and ribbed steel discs with rolled edges protect the hose during retraction and extend service life in high-cycle environments. The one-piece steel base and support post require no welding on installation and provide a stable single-pedestal footprint.

Key Features

• Spring-driven cartridge motor retracts twin-line welding hose automatically; motor is removable for field maintenance
• External 90-degree full-flow dual-ported brass swivel with Viton seals — both connections accessible from one side without dismounting
• CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Solid one-piece steel base and support post, no-weld construction, for maximum mounting stability
• Multi-position guide arm adjusts for wall, floor, ceiling, or vehicle mounting
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes adjustable solid rubber hose stop

Compatibility

Designed as an OEM-style spring-driven reel for 1/4-inch ID oxy-acetylene twin-line welding hose up to 35 feet in length.

Installation Notes

Installation should be performed by a qualified welding technician or industrial mechanic familiar with compressed gas hose systems. Shut off all gas supply valves and depressurize the hose assembly completely before mounting or connecting the reel. Verify that all swivel fittings and hose connections are leak-free using an approved leak-detection solution before returning the system to service. Consult applicable OSHA and NFPA codes for welding hose installation requirements in your jurisdiction.

Technical Specifications

• Hose ID: 1/4 inch
• Hose Length Capacity: 35 feet
• Drive Type: Spring driven
• Swivel Material: Brass with Viton seals
• Disc Construction: CNC spun and ribbed steel
• Base Material: Steel
• Finish: CPC powder coat
• Length: 18 inches
• Width: 9.5 inches
• Height: 19.75 inches
• Weight: 48 pounds
• UPC: 674255721562

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-W-135
