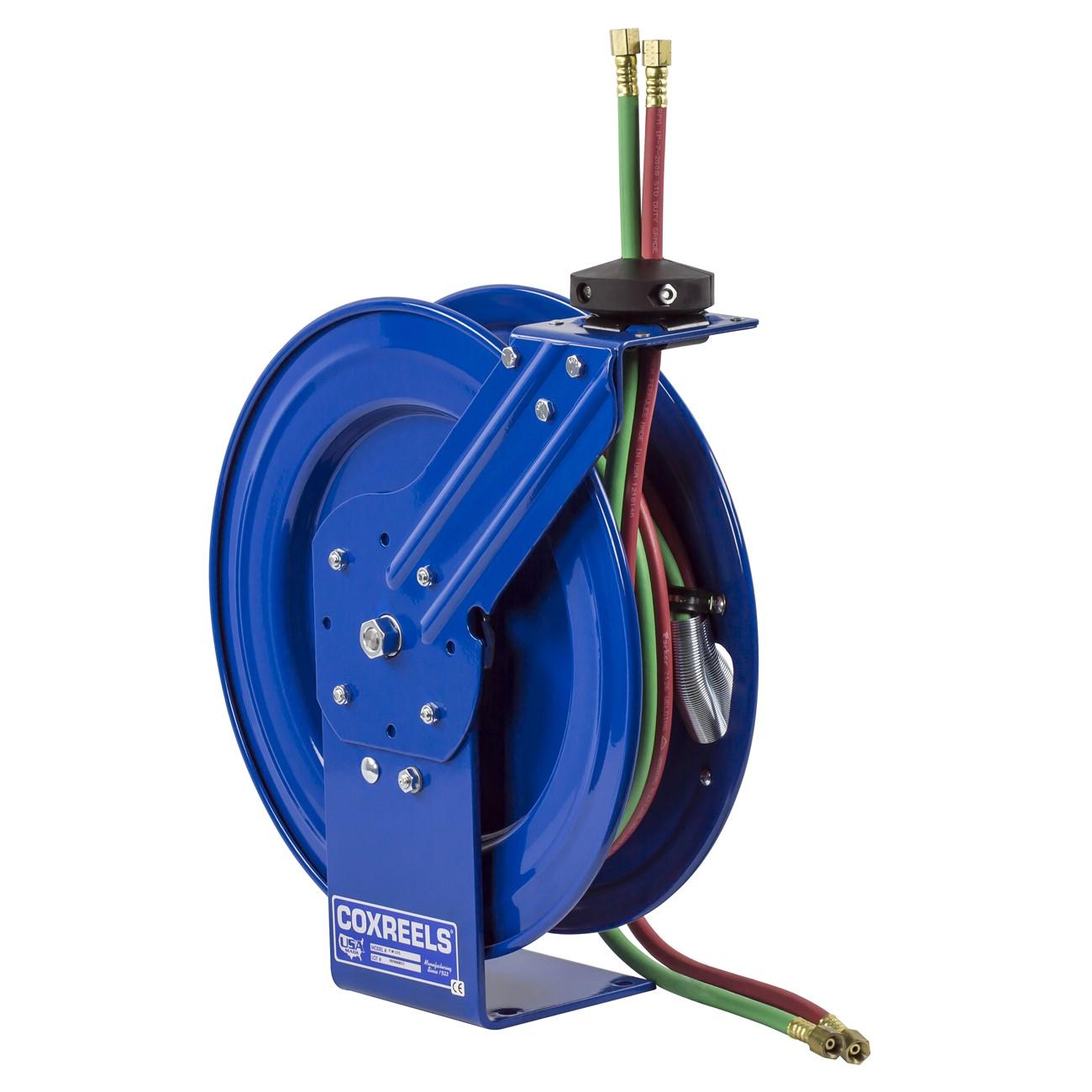

Coxreels P-W-125 Welding Hose Reel 1/4 in 25 Ft Spring

Product Description

The COXREELS P-W-125 is a spring-driven welding hose reel designed to manage twin-line oxy-acetylene welding hose in demanding shop and field environments. The reel features a 1/4-inch ID inlet, accommodates 25 feet of welding hose, and is built from steel throughout. A lubricated and enclosed cartridge-style spring motor drives retraction, while an external dual-ported brass swivel with Viton seals keeps both gas connections accessible from one side of the reel without requiring removal from the mount. Licensed HVAC techs, welders, and industrial maintenance professionals are the primary installers of this unit.

The P-W-125 is suited for residential and light commercial welding stations, fabrication shops, and service vehicles where compact footprint matters. The P-W Series shares the same compact chassis architecture as the standard P Series, making it a practical choice for installations where space is limited but a reliable spring-return hose management system is required. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting, giving installers flexibility across a range of fixed and mobile setups.

Key Features

• External 90-degree full-flow dual-ported brass swivel with Viton seals — both connections accessible from the same side, no dismounting required
• Enclosed cartridge-style spring motor is fully lubricated and removable for maintenance without disassembling the reel
• CNC robotically spun and ribbed steel discs with rolled edges for structural strength and hose protection
• Solid one-piece steel base and single-pedestal support post — no welds at the base for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting orientations
• CPC powder coat finish resists chips and rust; adjustable solid rubber hose stop included

Compatibility

Designed as an OEM-style spring-driven welding hose reel for use with 1/4-inch ID twin-line oxy-acetylene welding hose in compact fixed or mobile installations.

Installation Notes

Installation is typically performed by qualified welding equipment technicians or industrial maintenance professionals. Shut off all gas supply valves and verify zero pressure in the hose lines before mounting or connecting the reel. Ensure the mounting surface can support the loaded weight of the reel and hose. Consult applicable OSHA and NFPA standards for welding gas storage and hose management requirements in your jurisdiction.

Technical Specifications

• Hose ID: 1/4 inch
• Hose Length: 25 feet
• Drive Type: Spring driven
• Swivel Material: Brass with Viton seals
• Base Material: Steel
• Finish: CPC powder coat
• Length: 18 inches
• Width: 9.5 inches
• Height: 19.75 inches
• Weight: 46 pounds
• UPC: 674255721579

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-W-125
