Coxreels P-NP-350 Nitro-pro Nitrogen Hose Reel 50 Ft

Product Description

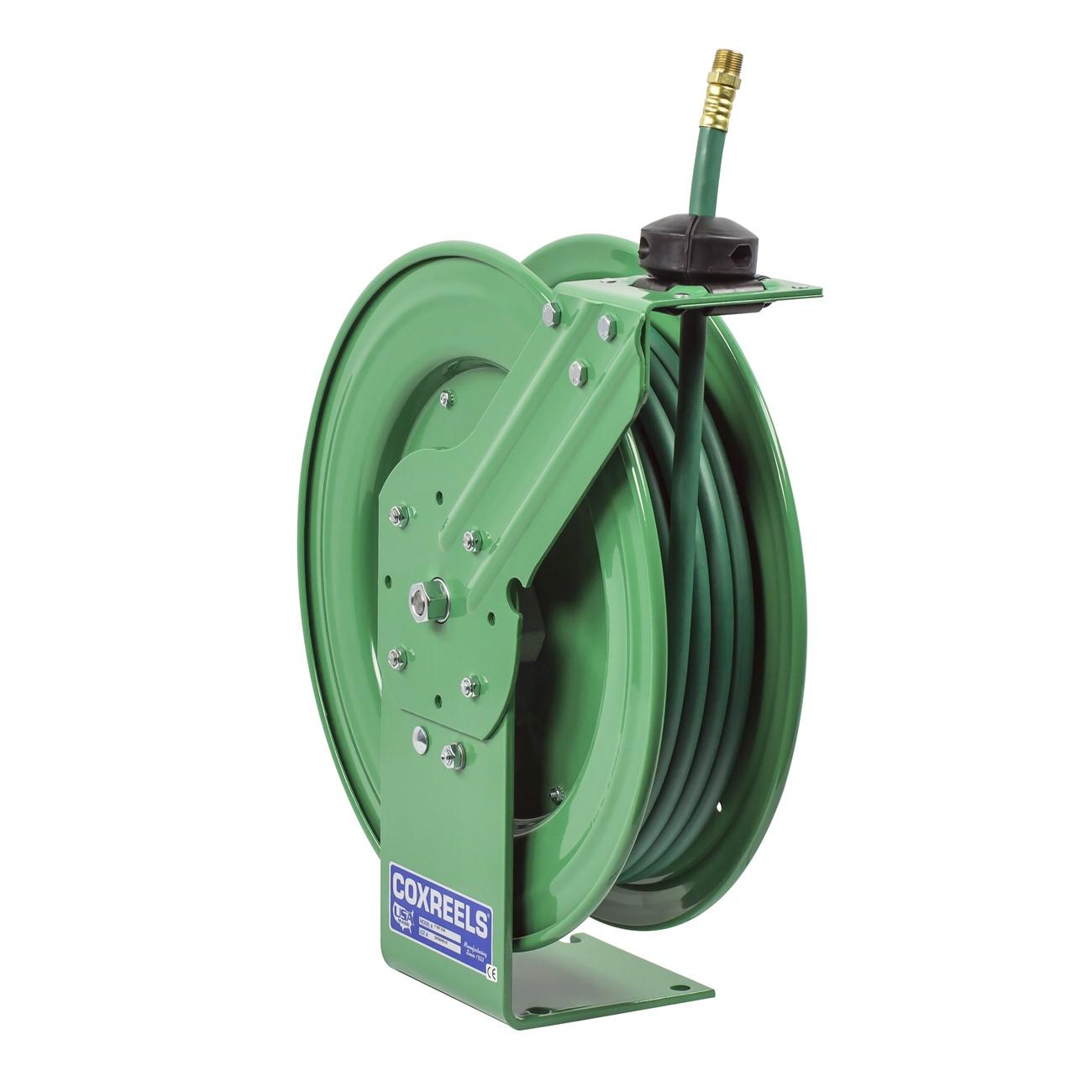

The COXREELS P-NP-350 is a spring-driven nitrogen hose reel from the Nitro-Pro Series, engineered specifically for use with nitrogen tire inflation systems. Unlike general-purpose hose reels, this unit is engineered, tested, and approved for nitrogen service, making it the correct tool for shops and fleet operations that require dedicated nitrogen inflation equipment. The reel features a compact, space-saving footprint combined with heavy-duty construction designed for long service life. A solid one-piece steel base provides a stable, no-weld pedestal mount, and permanently lubricated precision bearings keep operation smooth under regular professional use. At 43 pounds, the unit is substantial without being impractical for fixed installation.

The P-NP-350 is suited for automotive service bays, tire shops, fleet maintenance facilities, and commercial service operations where nitrogen tire inflation is standard practice. The EZ-Coil rewind system retracts up to 80 percent slower than conventional spring-driven reels, reducing the risk of hose whip and workplace injury. The multi-position aluminum guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations, giving installers flexibility in tight or unconventional service bay layouts. The reel ships with a green nitrogen hose and features Coxreels proprietary nitrogen-green powder coat finish to maintain clear visual identification of dedicated nitrogen equipment.

Key Features

• Engineered, tested, and approved exclusively for nitrogen tire inflation service
• EZ-Coil patented rewind safety system retracts up to 80 percent slower than standard spring-driven reels
• Machined solid brass 90-degree full-flow NPT swivel with nitrogen-quality seals — no reel removal required for hose installation or seal maintenance
• Enclosed, lubricated cartridge-style motor is fully removable for field maintenance
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Multi-position aluminum guide arm supports wall, floor, ceiling, and vehicle mounting

Compatibility

Designed for dedicated nitrogen tire inflation systems in professional automotive and fleet service environments. Hose inlet is 3/8 inch ID with a compatible NPT swivel connection. Consult the Coxreels fitment documentation to confirm compatibility with your specific nitrogen supply plumbing before ordering.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed gas plumbing and applicable shop safety codes. Shut off and bleed down the nitrogen supply line before making or breaking any hose or swivel connections. The solid steel pedestal base requires secure anchoring to the mounting surface — floor, wall, or ceiling as appropriate — using fasteners rated for the combined weight of the reel and hose. Do not use this reel with compressed air, oxygen, or any gas other than nitrogen, as it is rated and approved for nitrogen service only.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 5/8 inch
• Hose Length: 50 feet
• Drive Type: Spring driven
• Weight: 43 pounds
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Base Material: Steel
• Swivel Material: Solid brass
• Guide Arm Material: Aluminum
• Finish: Nitrogen-green CPCa powder coat
• UPC: 674255743335

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-NP-350
