Coxreels P-MP-430 Spring Driven Hose Reel 1/2 in 30 Ft

Product Description

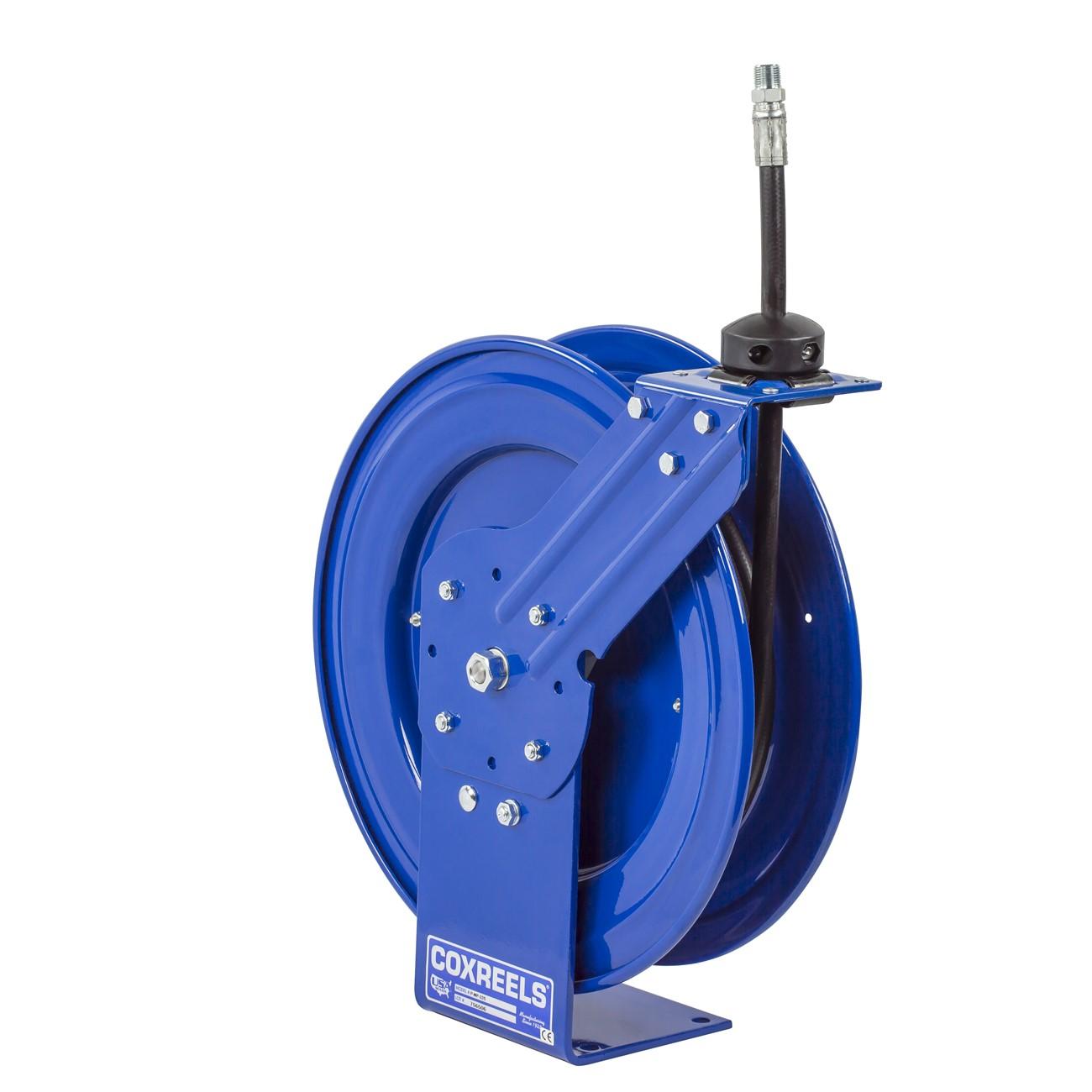

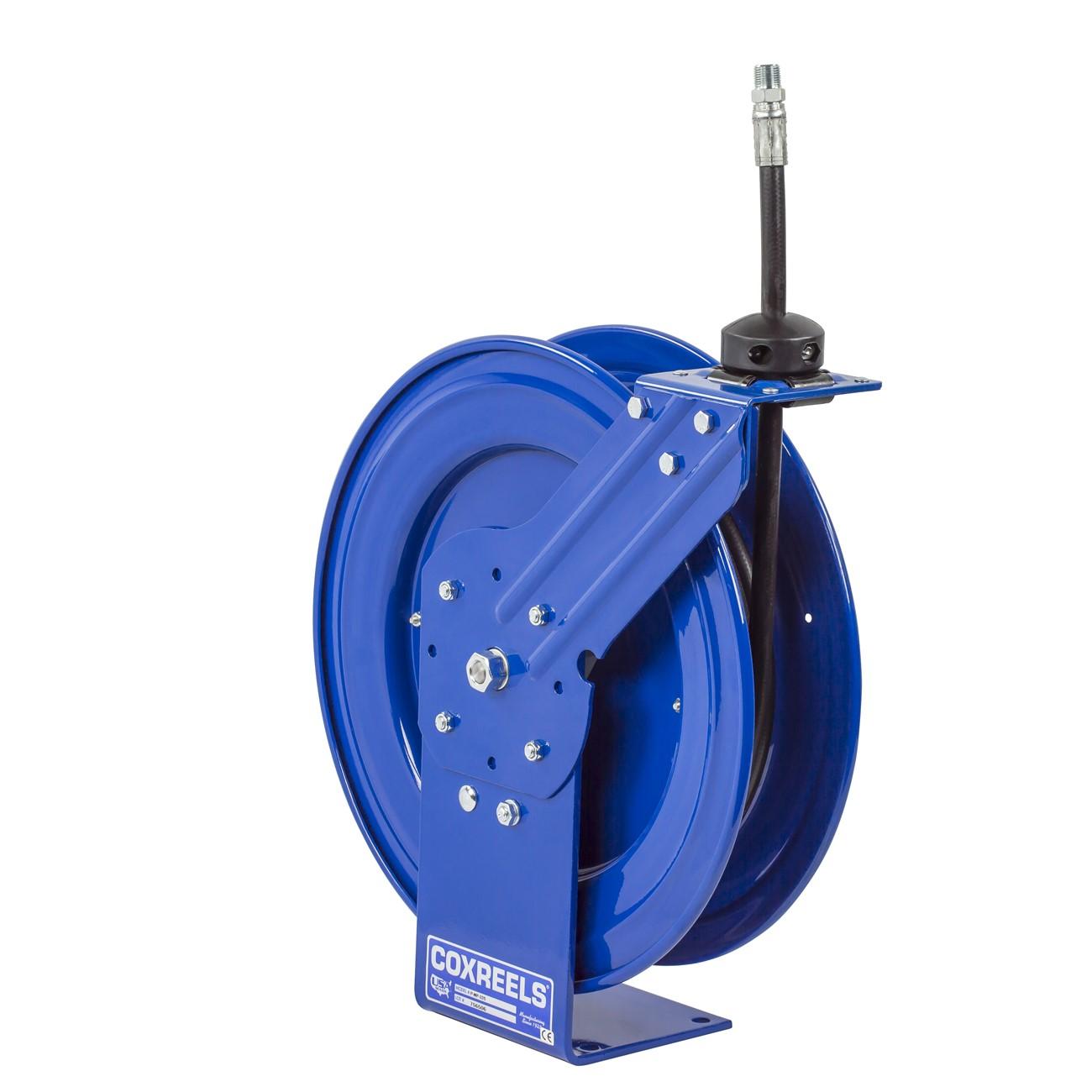

The COXREELS P-MP-430 is a spring-driven hose reel from the P Series line, built for reliable, hands-free hose retraction in demanding trade environments. Constructed with a heavy-duty steel frame and CNC robotically spun ribbed discs, this reel accepts 1/2 inch ID hose up to 30 feet in length. The enclosed cartridge-style motor is pre-lubricated and fully removable, making field maintenance straightforward. A machined solid brass 90-degree full-flow NPT swivel allows seal service and hose swaps without dismounting the reel. The CPC powder coat finish is chip-resistant and rust-inhibiting, suited for shop, fleet, and field applications where corrosion is a concern.

The P-MP-430 is well-suited for compressed air, water, and fluid transfer applications in industrial, commercial, and service vehicle settings. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, giving installers flexibility across a wide range of shop layouts and mobile service rigs. The solid one-piece steel base and support post require no welding and provide a stable single-pedestal footprint. This reel is commonly installed by plumbers, HVAC technicians, fleet mechanics, and industrial maintenance crews who need a compact, durable retractable reel in a space-constrained environment.

Key Features

• Spring-driven retraction with enclosed, pre-lubricated cartridge motor — removable without special tools
• Machined solid brass 90-degree full-flow NPT swivel for easy seal maintenance and hose installation without dismounting
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and hose protection
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations
• Solid one-piece steel base and support post — no-weld single pedestal design for maximum stability
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as a direct-fit spring-driven reel for 1/2 inch ID hose up to 30 feet in length in compressed air, water, and fluid service applications.

Installation Notes

Installation is typically performed by licensed mechanics, HVAC technicians, or industrial maintenance personnel. Shut off and bleed all pressure from the supply line before connecting or disconnecting hose fittings. Verify that the mounting surface — wall, floor, ceiling, or vehicle — can support the loaded weight of the reel and hose before fastening. Follow applicable shop safety and plumbing codes for fluid type and pressure rating when selecting compatible hose and fittings.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 13/16 inch
• Hose Capacity: 30 feet
• Drive Type: Spring driven
• Material: Steel
• Swivel: Solid brass 90-degree full-flow NPT
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 51 pounds
• UPC: 674255718722

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-MP-430
