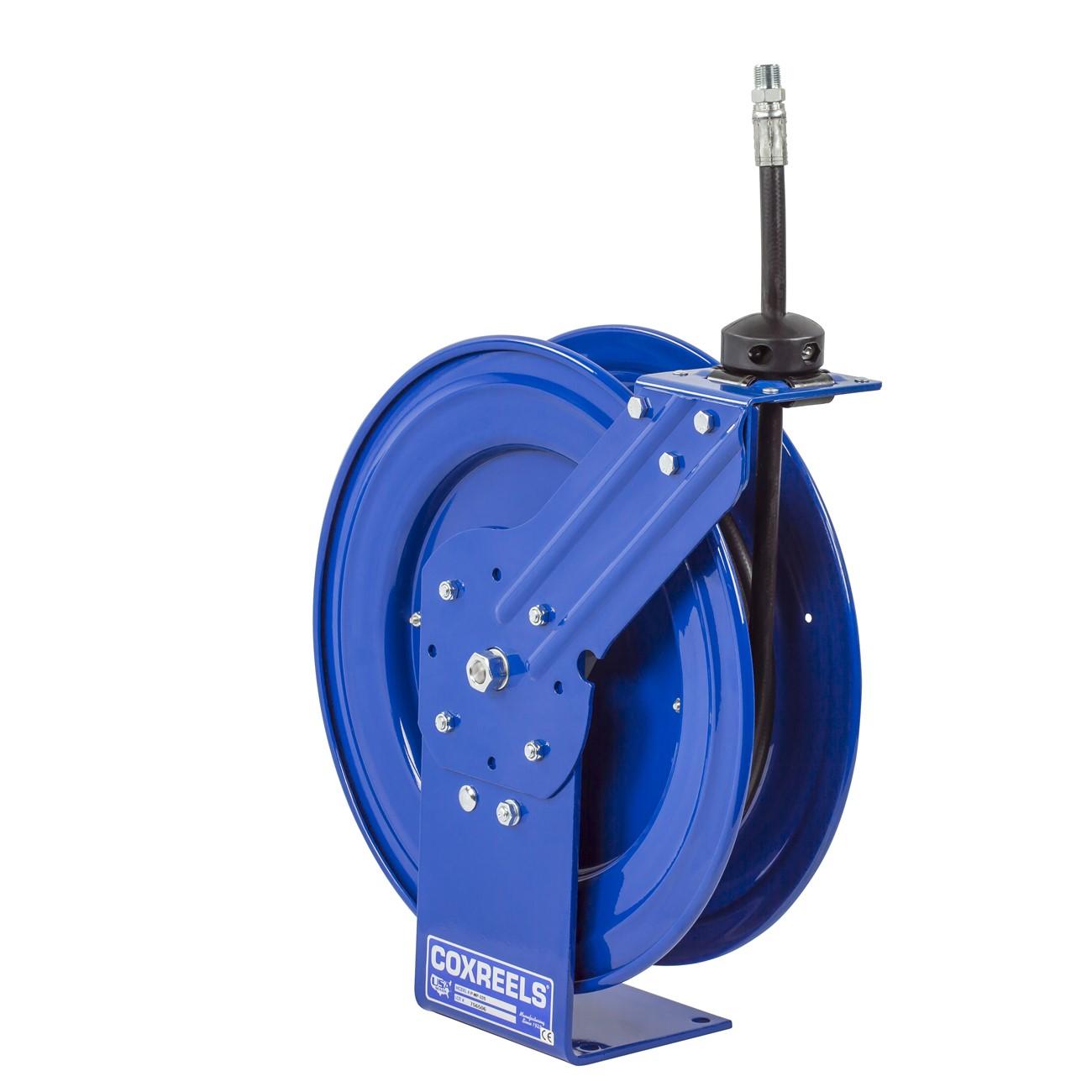

Coxreels P-MP-425 Spring Driven Hose Reel 1/2 in 25 Ft

Product Description

The COXREELS P-MP-425 is a spring-driven hose reel from the P Series line, built for demanding trade and industrial environments. The reel accepts 1/2 inch ID, 13/16 inch OD hose up to 25 feet in length and retracts automatically via an enclosed cartridge-style spring motor. The unit is constructed from steel with CNC robotically spun and ribbed discs and a solid one-piece steel base. At 49 pounds, it is a heavy-duty unit intended for permanent or semi-permanent installation in shops, service vehicles, or mechanical rooms. HVAC technicians, plumbers, and industrial service crews are the primary installers.

The P-MP-425 is suited for a wide range of fluid and air delivery applications in residential, commercial, and light industrial settings. Its compact footprint makes it practical for service van mounting, wall mounting, ceiling mounting, and floor mounting in tight utility spaces. The multi-position guide arm adjusts to accommodate all four of those mounting orientations without requiring reel removal. Compatible hose lengths and diameters should be confirmed against the 1/2 inch ID and 13/16 inch OD specs before installation.

Key Features

• Enclosed cartridge-style spring motor is fully lubricated and removable for maintenance without special tooling
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for added strength, hose protection, and operator safety
• Solid one-piece steel base and support post, no-weld construction, for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed to accept 1/2 inch ID, 13/16 inch OD hose up to 25 feet in length. Confirm hose ratings, end fittings, and fluid compatibility with the reel's swivel and internal passages before use.

Installation Notes

Installation is typically performed by a qualified mechanical or service technician using standard hand tools. Before servicing or mounting, relieve any pressure in the hose and spring motor per the manufacturer's instructions. Mounting surface must be rated to support the reel's weight plus the weight of the filled hose. Follow all applicable local and federal safety codes for the fluid or media being conveyed.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 13/16 inch
• Hose Capacity: 25 feet
• Drive Type: Spring driven
• Material: Steel
• Swivel Material: Solid brass
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 49 pounds
• Finish: CPC powder coat
• UPC: 674255718715

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-MP-425
