Coxreels P-MP-325 Spring Driven Hose Reel 3/8 in 25 Ft

Product Description

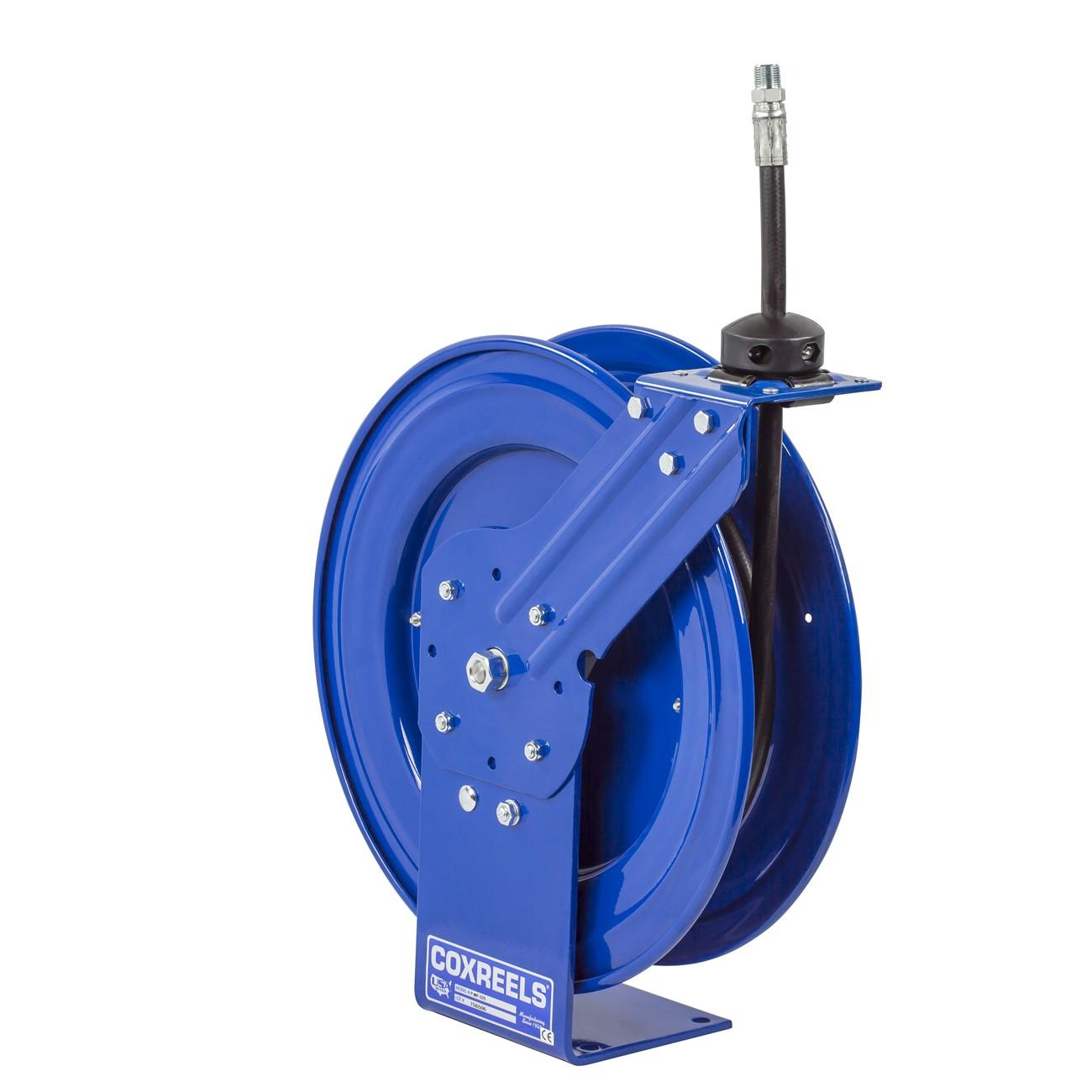

The COXREELS P-MP-325 is a spring-driven hose reel built for demanding trade and industrial applications. Part of the COXREELS P Series, it accepts hose with a 3/8 inch inner diameter and 11/16 inch outer diameter, with a 25-foot hose capacity. The unit weighs 49 pounds and features heavy-duty CNC robotically spun and ribbed steel discs, a solid one-piece steel base, and a machined solid brass 90-degree full-flow NPT swivel. The cartridge-style spring motor is lubricated and fully enclosed. This reel is installed by HVAC technicians, plumbers, mechanics, and general service professionals who need retractable hose management in a fixed or vehicle-mounted setting.

The P-MP-325 is suited for use in residential and commercial service environments, garages, shops, fleet vehicles, and utility bays. Its multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, making it adaptable to a wide range of installation layouts. The compact footprint conserves workspace without sacrificing hose length or flow capacity. Service professionals working with air, water, or compatible fluid lines will find this reel a practical fixed-station or mobile solution.

Key Features

• Spring-driven retraction with enclosed, lubricated cartridge-style motor for low-maintenance operation
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose swaps without removing the reel from its mount
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and hose protection
• Solid one-piece steel base and support post with single pedestal design, no-weld construction
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish resists chips and rust; adjustable solid rubber hose stop included
• Permanently lubricated precision bearings for long service life

Compatibility

Designed as an OEM-style replacement or direct-fit spring-driven hose reel for service stations, shops, and vehicle installations requiring 3/8 inch ID hose up to 25 feet in length.

Installation Notes

Installation should be performed by a qualified technician familiar with hose reel mounting and the relevant plumbing or pneumatic codes for the application. Shut off the supply line and depressurize the system fully before connecting or servicing the swivel and hose fittings. Secure the mounting base to a structural surface capable of supporting the reel weight plus hose and fluid load. Do not exceed the rated hose dimensions for this reel drum.

Technical Specifications

• Hose Inner Diameter: 3/8 inch
• Hose Outer Diameter: 11/16 inch
• Hose Capacity: 25 feet
• Drive Type: Spring driven
• Material: Steel
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 49 pounds
• Swivel Material: Solid brass
• Finish: CPC powder coat
• UPC: 674255718678

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-MP-325
