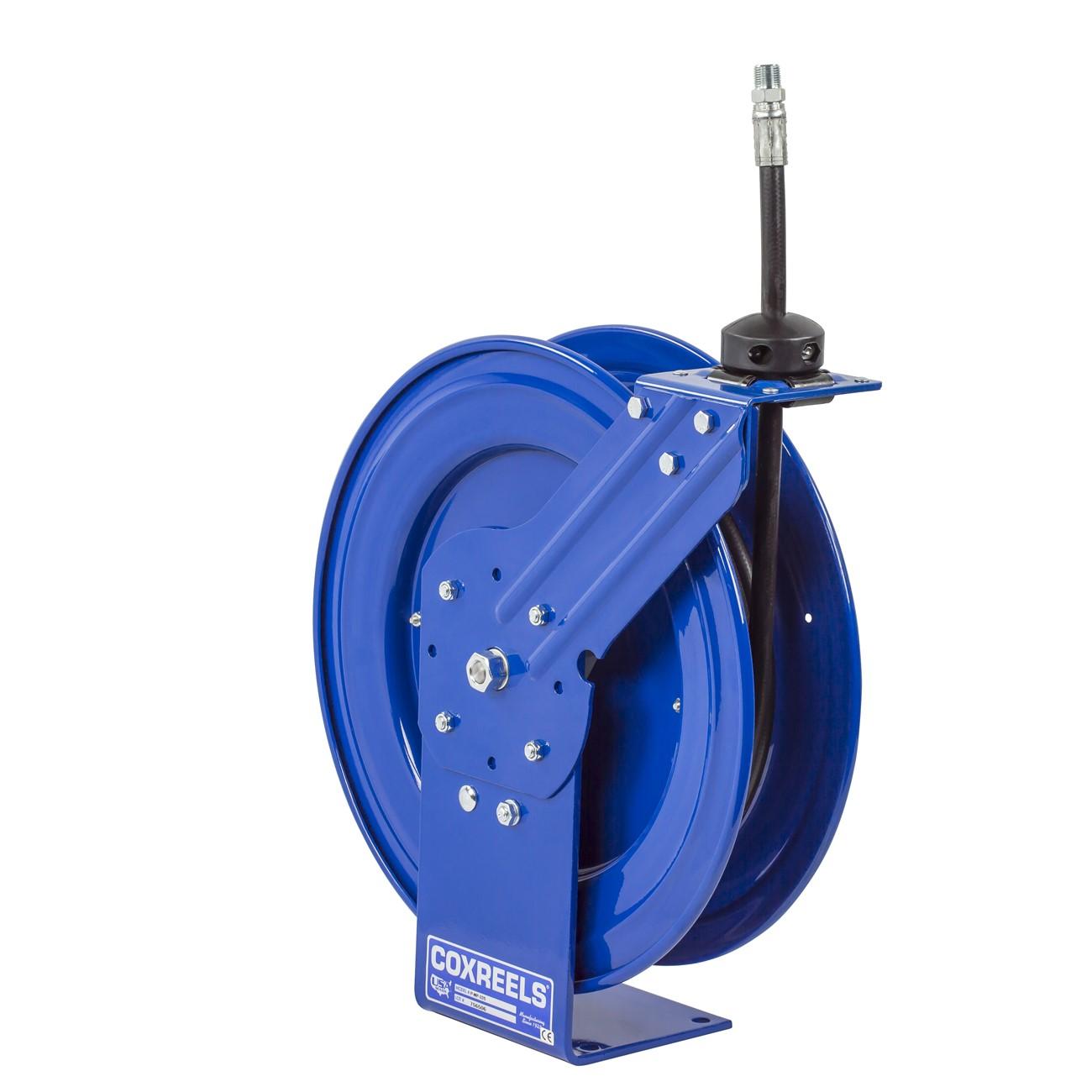

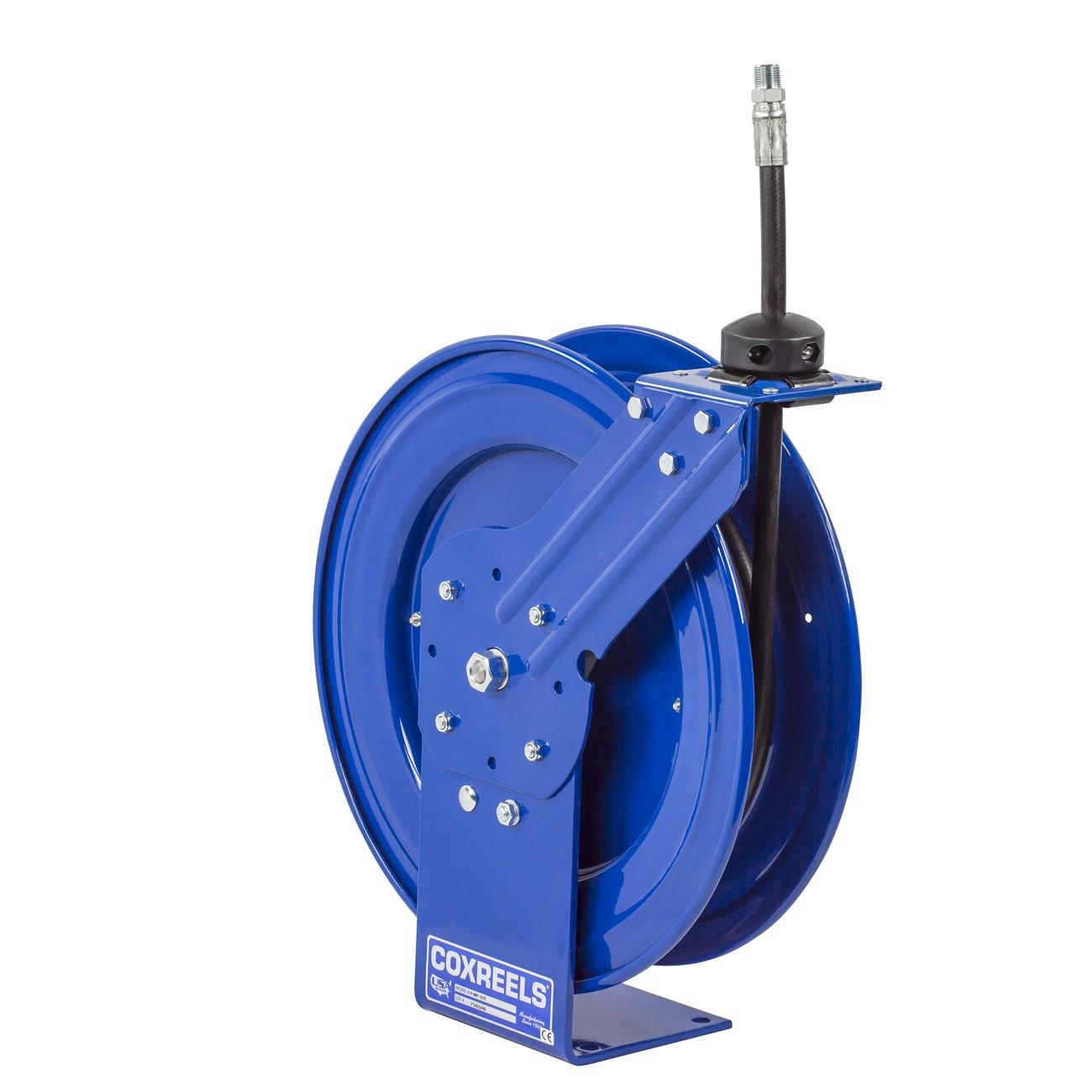

Coxreels P-MP-320 Spring Driven Hose Reel 3/8 in 20 Ft

Product Description

The COXREELS P-MP-320 is a spring-driven hose reel from the P Series line, built for trade professionals who need a compact, heavy-duty retraction solution in demanding service environments. The reel accepts 3/8-inch ID hose up to 20 feet in length and is constructed from steel throughout. A cartridge-style spring motor drives automatic hose retraction. CNC robotically spun and ribbed steel discs with rolled edges provide structural rigidity and protect hose integrity during repeated cycling. A CPC powder coat finish resists chipping and rust for long-term durability in shop, fleet, or field installations.

The P-MP-320 is suited for residential and light commercial service applications including compressed air, fluid transfer, and general maintenance operations. Its multi-position guide arm allows mounting on walls, floors, ceilings, and vehicles, making it adaptable across service bays, lube facilities, and mobile service units. The single-pedestal steel base provides a stable mounting footprint without welded joints.

Key Features

• Spring-driven cartridge motor with enclosed lubrication for low-maintenance automatic retraction
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• CNC robotically spun ribbed steel discs with rolled edges for strength, hose protection, and operator safety
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• 1/4-inch solid one-piece steel base with no-weld single pedestal design for maximum stability
• CPC powder coat finish with adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed for use with 3/8-inch ID hose up to 20 feet in length in compressed air, fluid, and general-purpose retraction applications.

Installation Notes

Installation is typically performed by a qualified mechanic, plumber, or facilities technician depending on the fluid service. Shut off the air or fluid supply and depressurize the line before mounting or servicing the reel. Secure the base to a structurally sound surface rated for the reel weight and hose load. Verify NPT thread engagement and swivel integrity before returning the system to service.

Technical Specifications

• Hose ID: 3/8 inches
• Hose Length: 20 feet
• Construction: Steel
• Drive Type: Spring driven
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 46 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-MP-320
