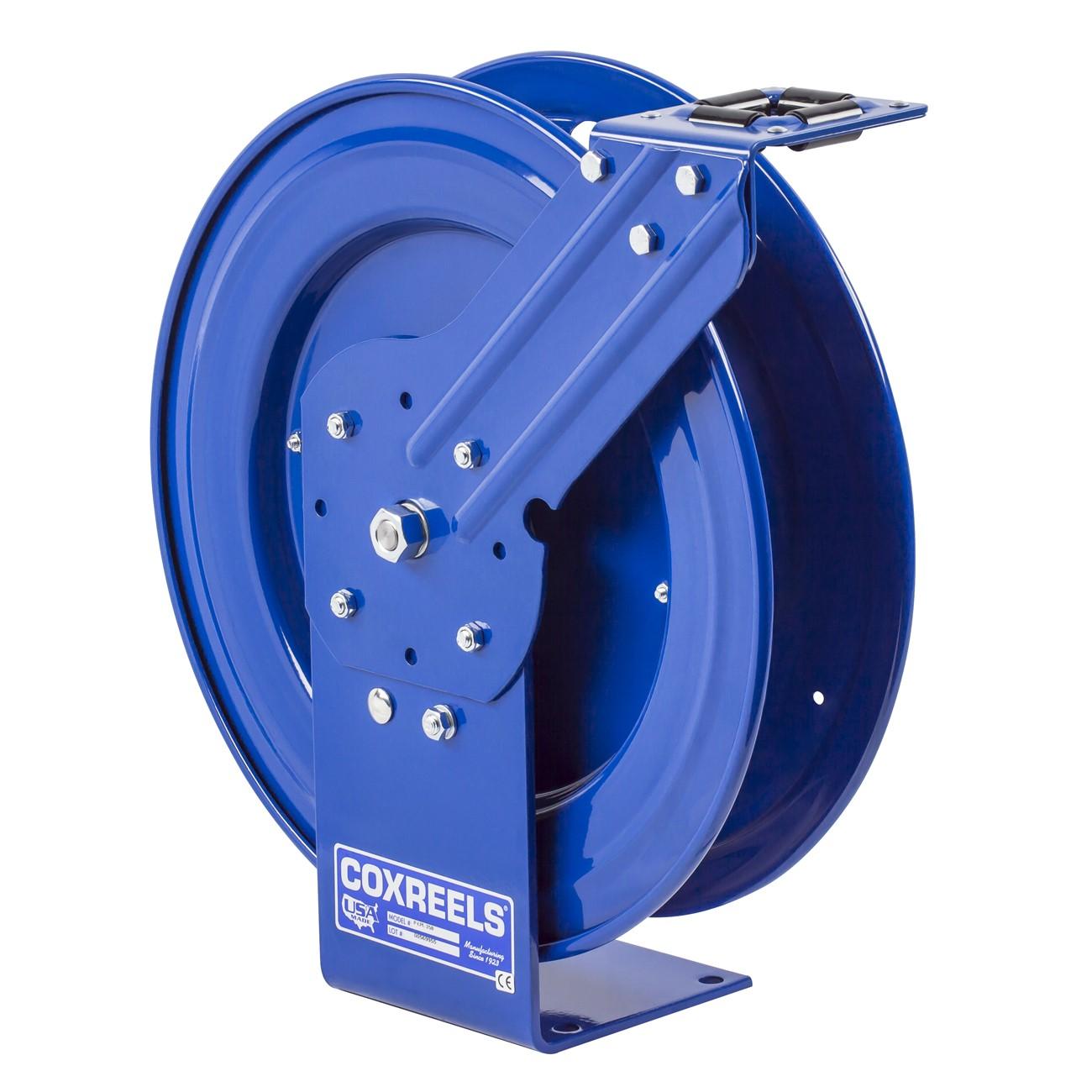

Coxreels P-LPL-450 Spring Driven Hose Reel 1/2 in 50 Ft

Product Description

The COXREELS P-LPL-450 is a spring-driven hose reel from the P Series line, designed for demanding service in industrial, commercial, and fleet maintenance environments. Built around a compact, heavy-duty steel frame, this reel accepts 1/2-inch ID hose up to 50 feet in length. The spring-drive motor retracts hose automatically, reducing clutter and wear from dragging. CNC robotically spun and ribbed discs with rolled edges provide structural strength while protecting the hose and the operator. A CPC powder coat finish resists chipping and rust, making this reel a long-service option in harsh conditions. Licensed contractors and service technicians in a range of trades rely on this design for consistent, repeatable performance.

The P-LPL-450 is suited for use in automotive service bays, manufacturing facilities, fleet yards, and commercial maintenance applications. It handles low-pressure liquid transfer, air, or similar service lines, depending on hose selection. The multi-position guide arm allows mounting on walls, floors, ceilings, or vehicles, making it adaptable across a wide variety of fixed and mobile installations. Its compact footprint fits into tight service spaces where larger reels cannot.

Key Features

• Spring-driven cartridge motor is lubricated, enclosed, and removable for maintenance without dismounting the reel
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• 1/4-inch solid one-piece steel base and single pedestal support post with no-weld construction for maximum stability
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish resists chips and rust for long-term durability in working environments

Compatibility

Designed as a direct-use spring-driven hose reel for 1/2-inch ID hose up to 50 feet in length, compatible with standard NPT hose fittings across typical industrial and commercial fluid or air service applications.

Installation Notes

Installation should be performed by a qualified technician familiar with the applicable service medium, whether pneumatic or fluid. Shut off and depressurize the supply line fully before mounting or connecting the reel. Secure all mounting hardware to structural surfaces rated to support the combined weight of the reel and loaded hose. Follow local codes and the manufacturer's mounting instructions when configuring the guide arm for ceiling or overhead positions.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Hose Capacity: 50 feet
• Drive Type: Spring driven
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 48 pounds
• Swivel Material: Solid brass
• Base Material: Steel
• Finish: CPC powder coat
• UPC: 674255731493

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: P-LPL-450
